Lighting and Horns: Service and Repair

Hazard Warning Switch Test/Replacement

1. Remove the gauge control module.

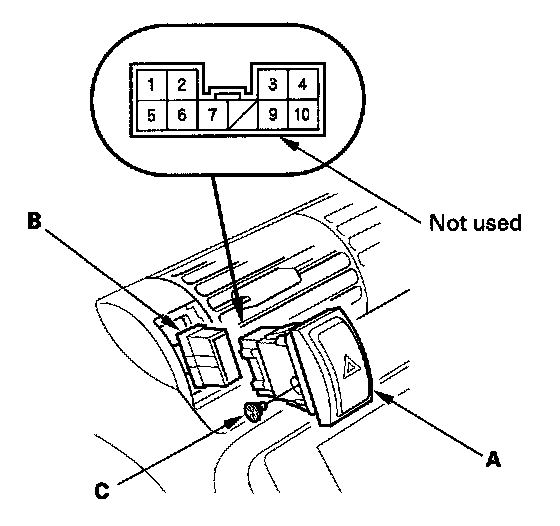

2. Push out the hazard warning switch (A) from behind the center panel.

3. Disconnect the 10P connector (B) from the hazard warning switch.

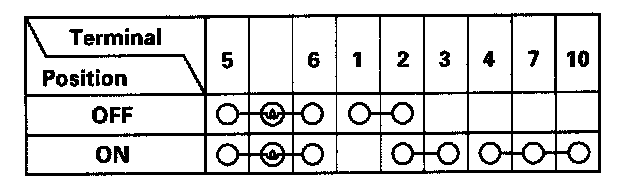

4. Check for continuity between the terminals in each switch position according to the table.

5. If the continuity is not as specified, replace the bulb (C) or the hazard warning switch.
