Catalytic Converter: Service and Repair

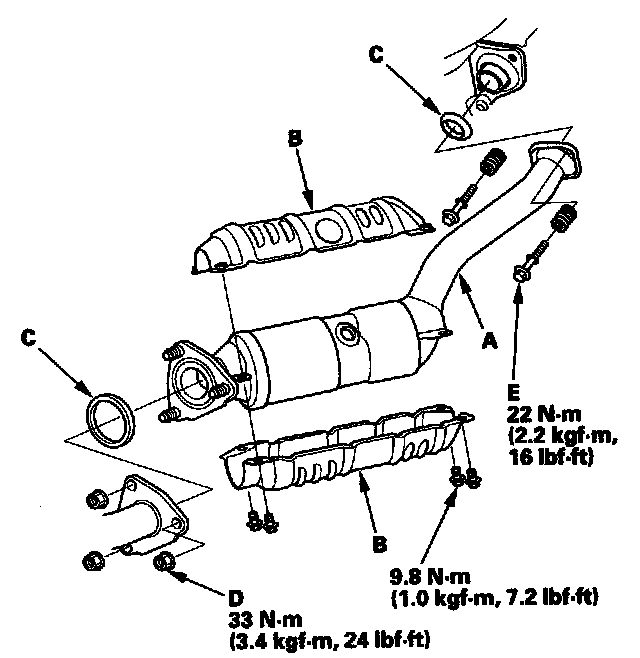

Catalytic Converter Removal/Installation 1.
Remove the secondary HO2S.
2.
Remove the TWC (A).
3.
Remove the converter covers (B).
4.
Install the parts in the reverse order of removal with new gaskets (C), new self-locking nuts (D), and new bolts (E).
