Removal and Replacement
Starter Removal and InstallationRemoval
1. Make sure you have the anti-theft code for the audio system, and that the ignition switch is OFF.
2. Disconnect the negative cable from the battery.

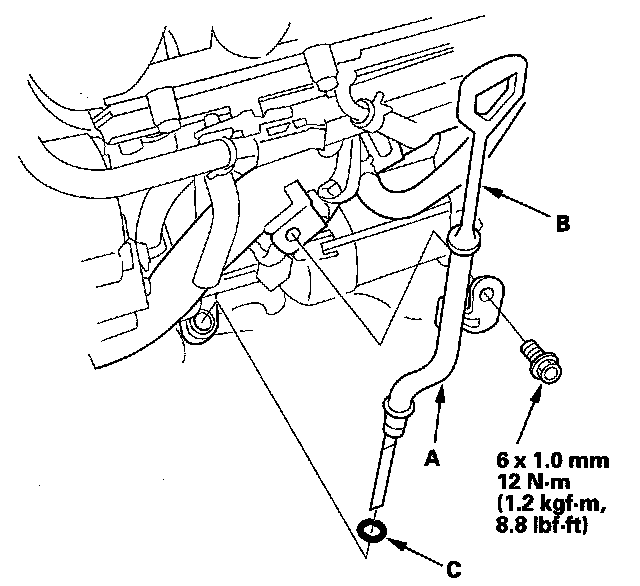

3. Remove the dipstick (A) and the dipstick tube (B).
4. Raise the vehicle on the lift, and make sure it is supported securely.
5. Remove the splash shield (see step 24).

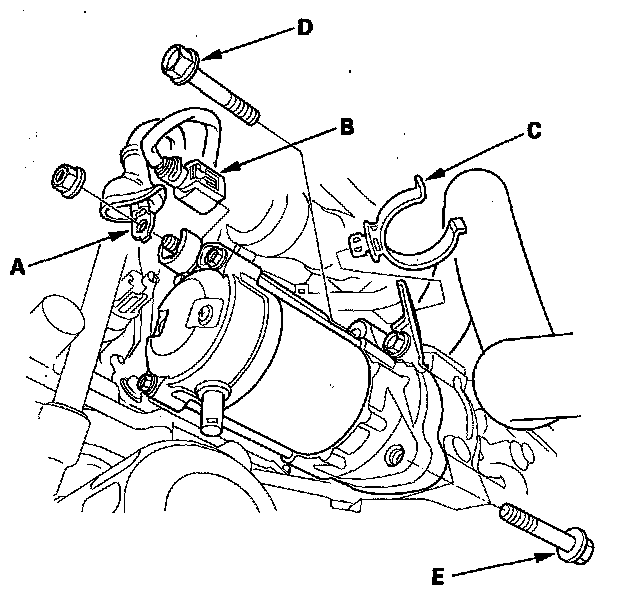

6. Disconnect the starter cable (A) from the B terminal, then disconnect connector (B) from the S terminal.
7. Remove the water hose clamp (C).
8. Remove the upper mounting bolt (D) and the lower mounting bolt (E), then remove the starter.
Installation
1. Install the starter, then loosely install the upper mounting bolt (A) and the lower mounting bolt (B).
2. Tighten the upper mounting bolt and the lower mounting bolt.
3. Install the water hose clamp (C).
4. Install the starter cable (D) by aligning the tab on the terminal (E) and the groove (F) of the terminal holder, then install the connector (G).
5. Install the splash shield (see step 34).
6. Lower the vehicle on the lift.
7. Install the dipstick tube (A) and the dipstick (B) with new O-ring (C).
8. Connect the negative cable to the battery.
9. Start the engine to make sure the starter works properly.
10. Enter the anti-theft code for the audio system.
11. Set the clock.
