Switch Test/Replacement

Switch Test/Replacement

1. Remove the center panel.

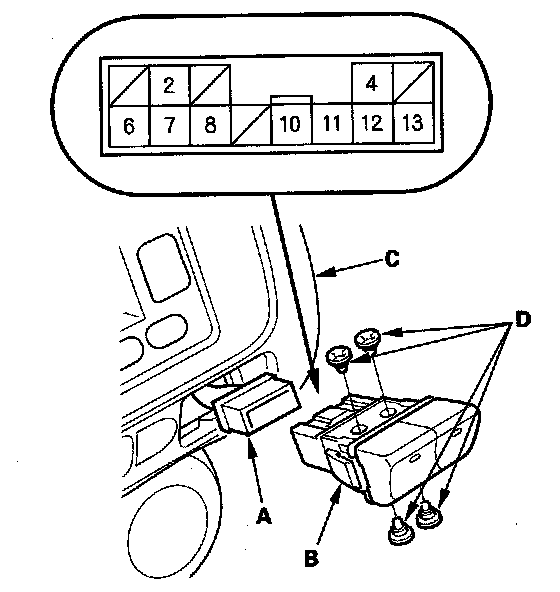

2. Disconnect the 13P connector (A) and push out the rear window defogger switch (without A/C) or the rear window defogger and A/C switch (with A/C) (B) from behind the center panel (C).

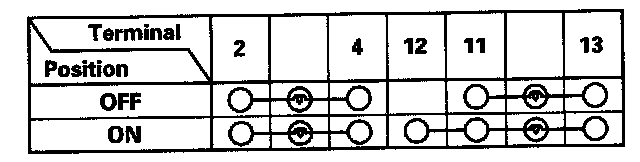

3. Check for continuity between the terminals in each switch position according to the table.

4. If the continuity is not as specified, replace the bulb (D) or the switch.
