Power Window Master Switch Test/Replacement

Power Window Master Switch Test/Replacement

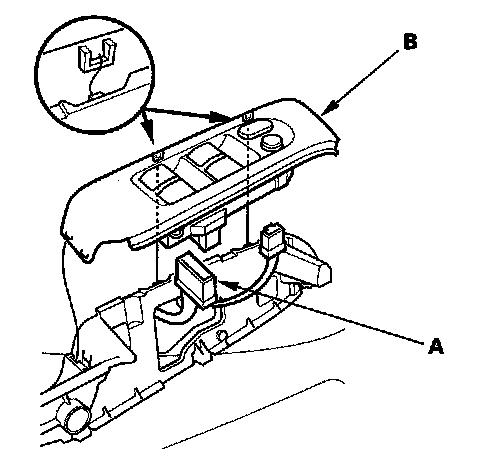

1. Remove the switch cover from the door panel.

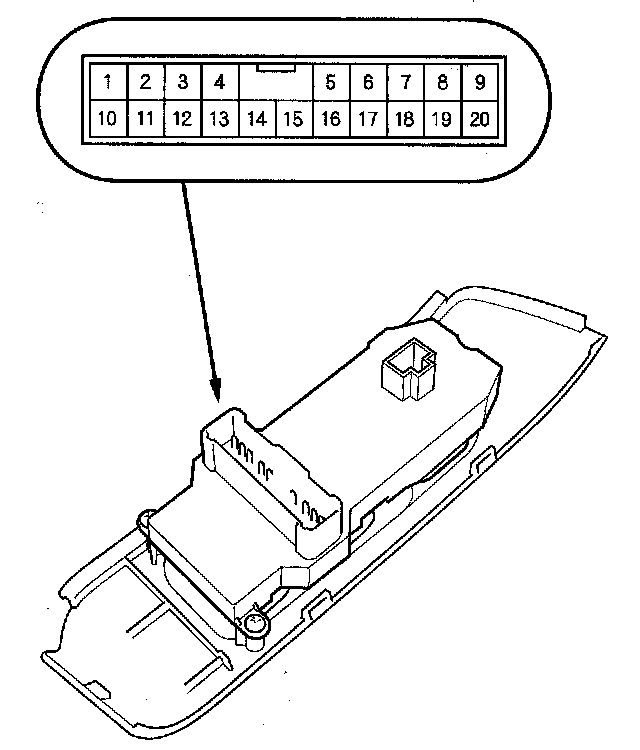

2. Disconnect the 20P connector (A) from the master switch (B).

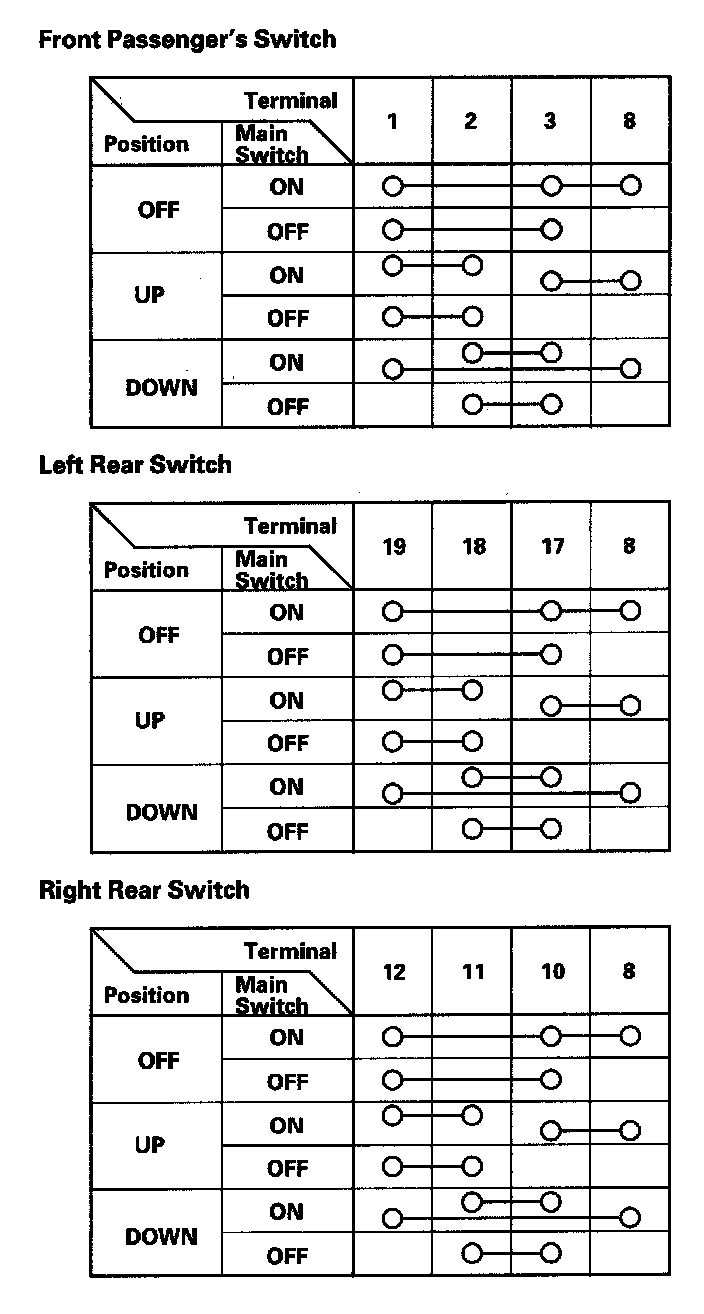

3. Check for continuity between the terminals in each switch position according to the tables.






Driver's Switch
The driver's switch is combined with the control unit so you cannot isolate the switch to test it. Instead, run the master switch input test procedures. If the tests are normal, the driver's switch must be faulty.






4. If the continuity is not as specified, replace the switch.

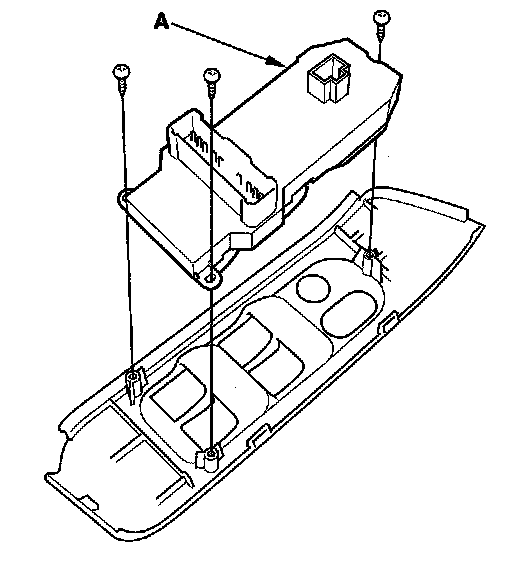

5. If the switch is faulty, replace the switch by removing the three mounting screws and the switch (A).
