Wiper/Washer Switch Input Test

Wiper/Washer Switch Input Test

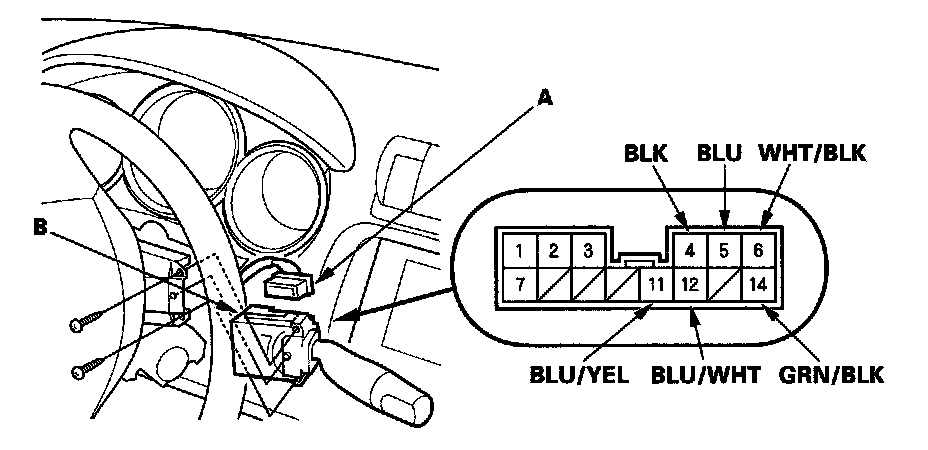

1. Remove the wiper/washer switch.

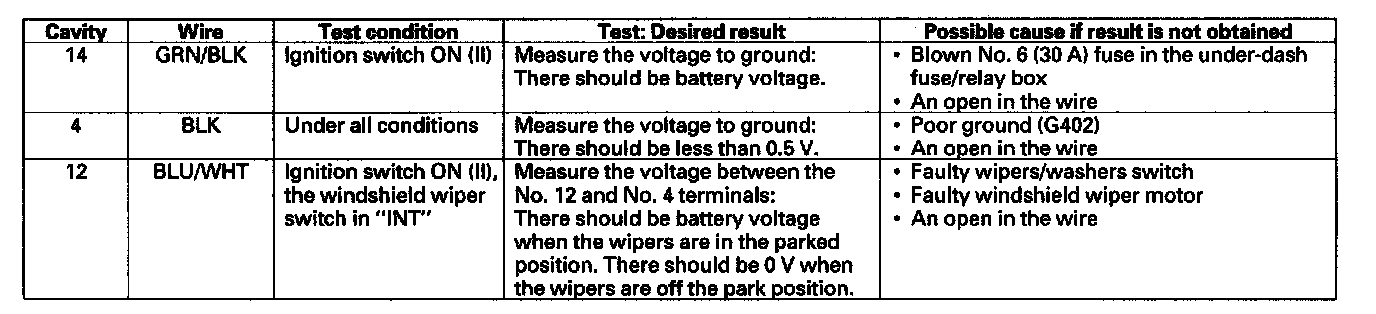

2. With the connector connected, make these input tests at the connector.
- If a test indicates a problem, find and correct the cause, then recheck the system.
- If the input tests prove OK, go to step 3.

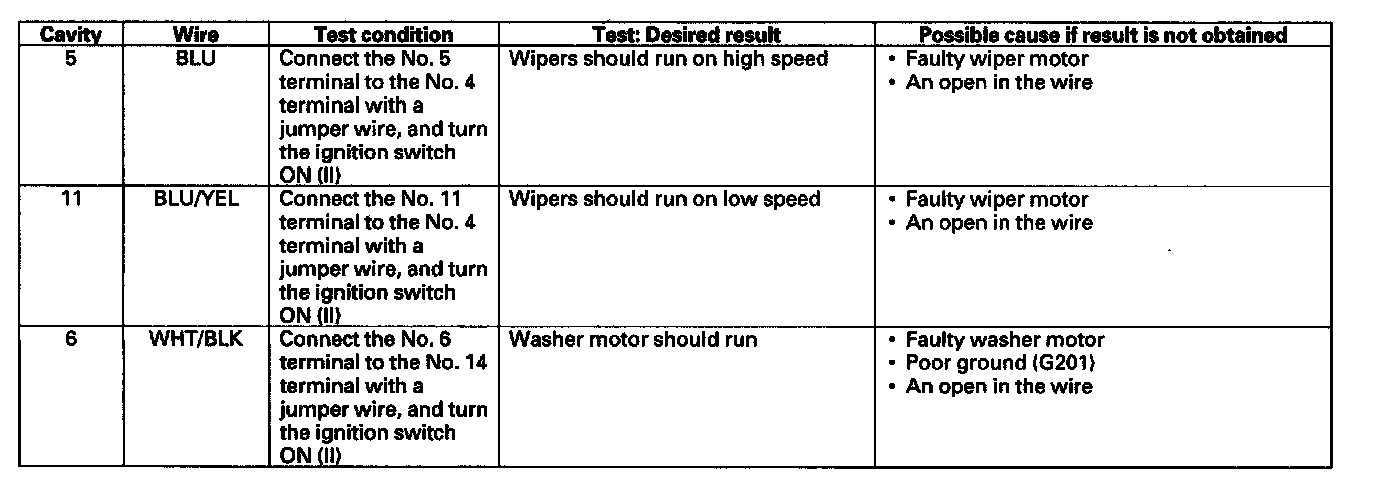

3. Disconnect the connector from the windshield wiper/washer switch.
- If the test indicates a problem, find and correct the cause, then recheck the system.
- If the input test prove OK, go to wiper/washer switch test.
