Windshield Washer Reservoir: Service and Repair
Washer Reservoir Replacement 1.
Remove the right inner fender.
2.
Disconnect the 2P connectors (A) and tubes (B) from the washer motors (C).
3.
Remove the washer motors from the washer reservoir (D).
4.

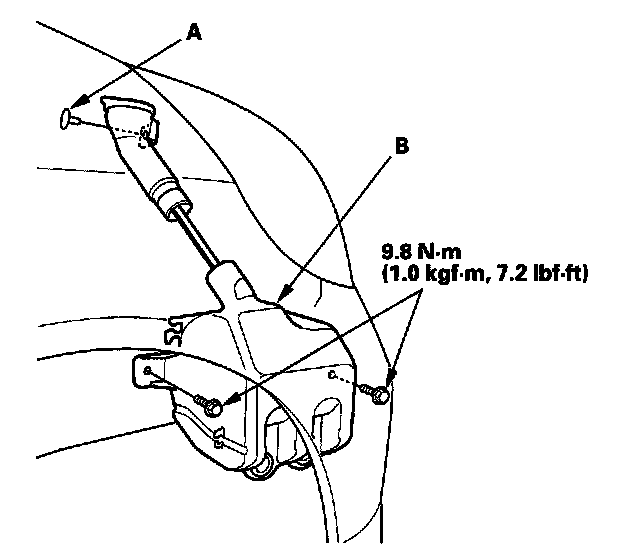

Remove the two bolts and clip (A), then remove the washer reservoir (B).
5.
Install the reservoir in the reverse order of removal. Check the washer motor operation.
