Voice Control Switch Removal/Installation

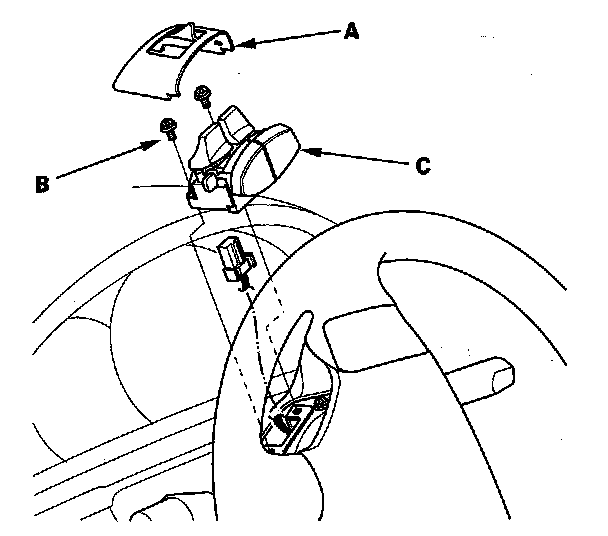

Voice Control Switch Removal/Installation 1.
Remove the switch cover (A) from left side of the steering wheel.
2.
Remove the two screws (B) from the voice control switch or HFL/voice control switch (C).
3.
Disconnect the 5P connector (D) and remove the voice control switch or HFL/voice control switch.
4.
Install the switch in the reverse order of removal.
