Second Row Seat Riser Disassembly/Reassembly

Second Row Seat Riser Disassembly/Reassembly

NOTE:
- Take care not to bend or kink any cables.
- Put on gloves to protect your hands.
- Apply medium strength type liquid thread lock to the seat tracks and front connecting pipe mounting bolts.
- Apply multipurpose grease to the sliding portions of the seat tracks.
- The right riser assembly is shown; the left riser assembly is similar except it has no adapter.

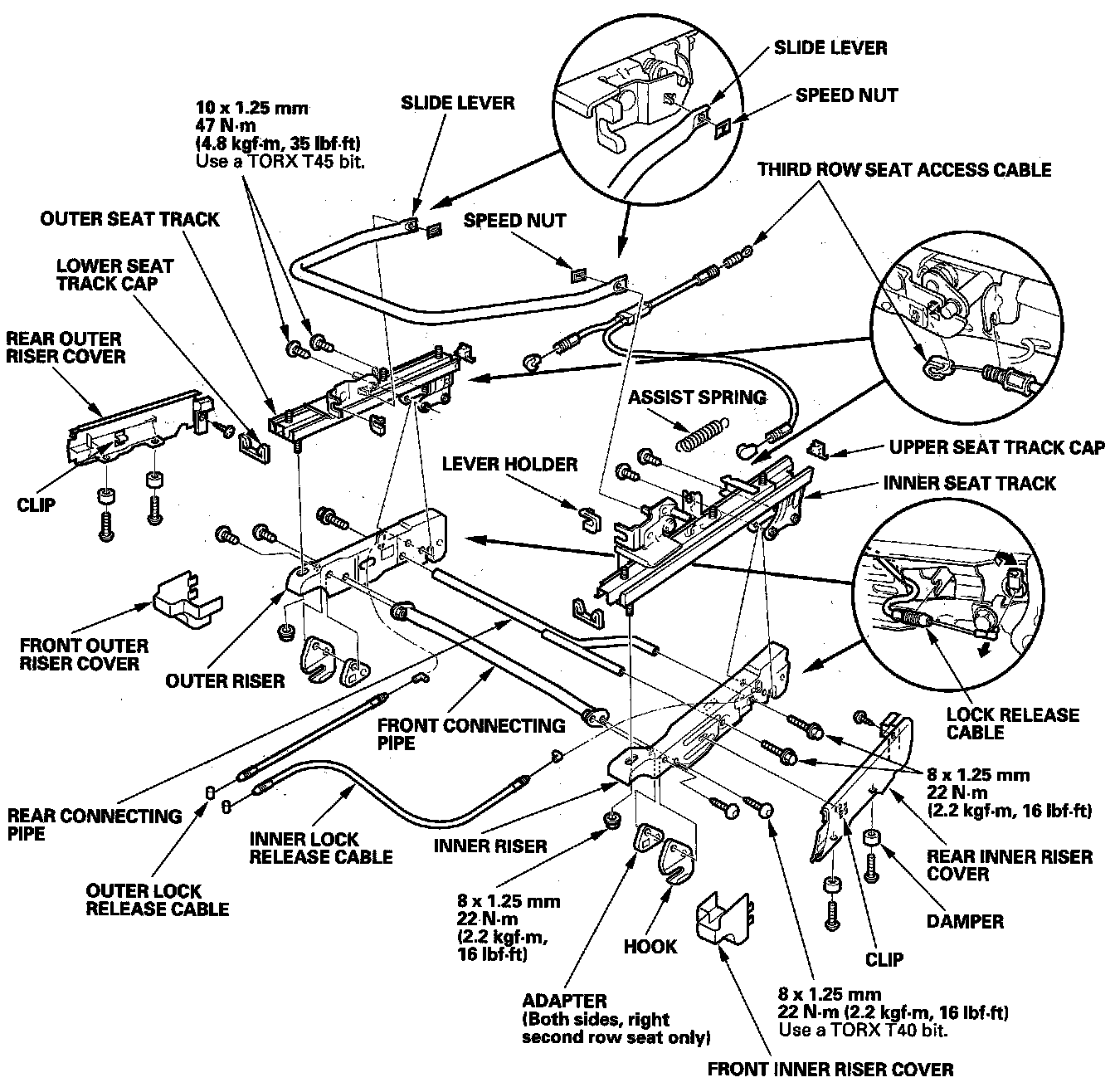

Second Row Seat Riser Disassembly/Reassembly:
