Ambient Light Test/Replacement

Ambient Light Test/Replacement

EX, EX-L, and Touring models

1. Remove the front individual map light.

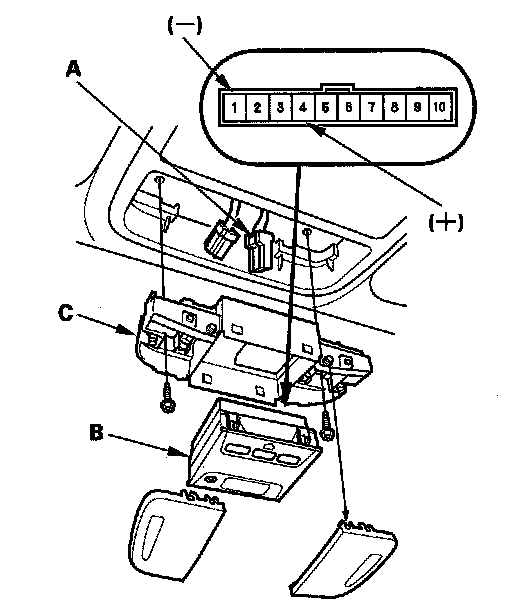

2. Disconnect the 10P connector (A) from the ambient light/HomeLink unit (B), then remove the ambient light/HomeLink unit from the map light housing (C).

3. Connect battery power to the No. 4 terminal and ground to the No. 1 terminal. The ambient light should come on. If the light does not come on, replace the ambient light/HomeLink unit.
