Component Location Index

Relay And Control Unit Locations Engine Compartment:

Accessory Power Sockets Component Location Index:

Power Windows Component Location Index:

Turn Signal/Hazard Warning Lights Component Location Index:

Ignition System Component Location Index:

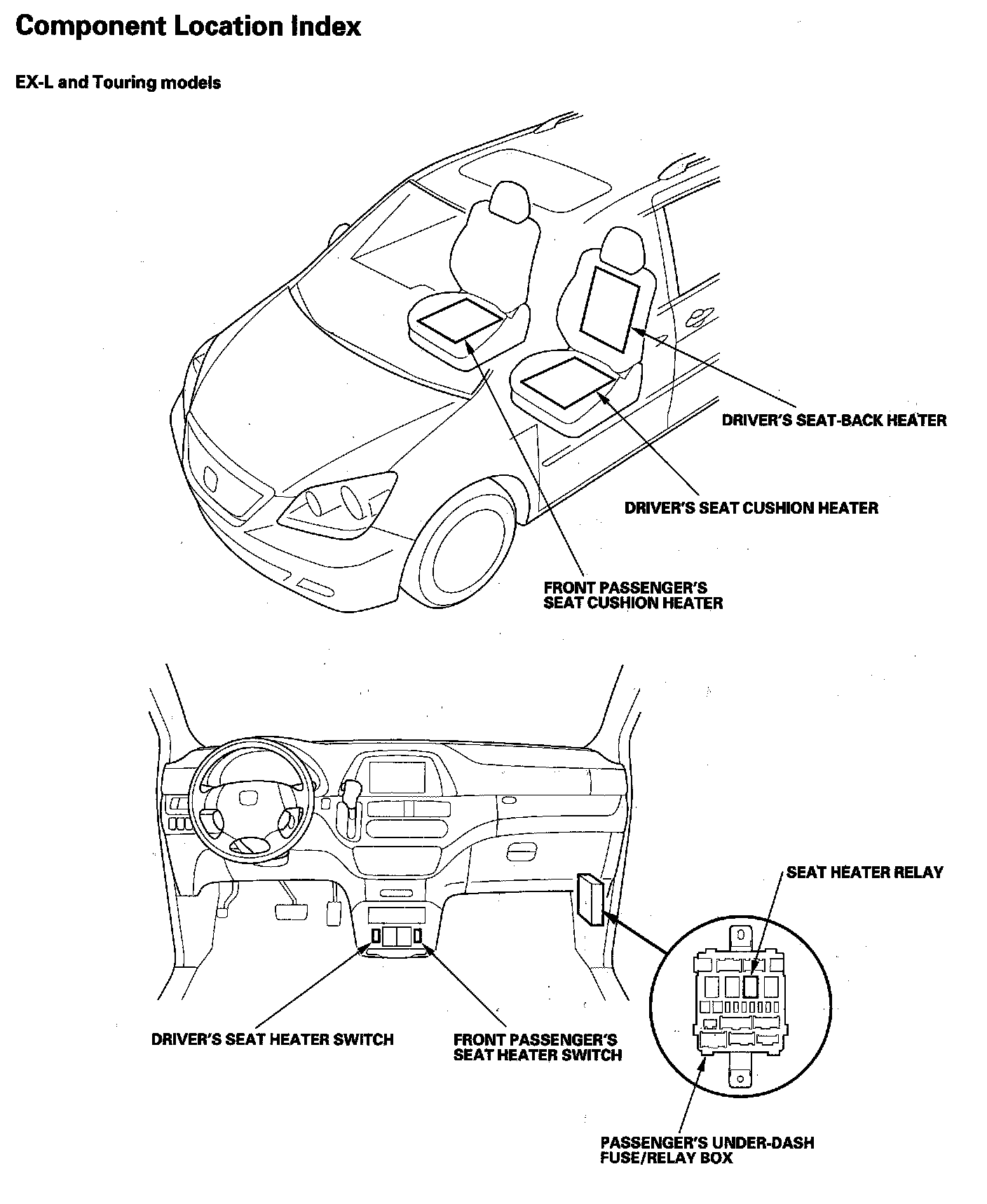

Seat Heaters Component Location Index:

Keyless/Power Door Locks/Security System Component Location Index:

Relay And Control Unit Locations Dashboard:

Relay And Control Unit Locations Dashboard:

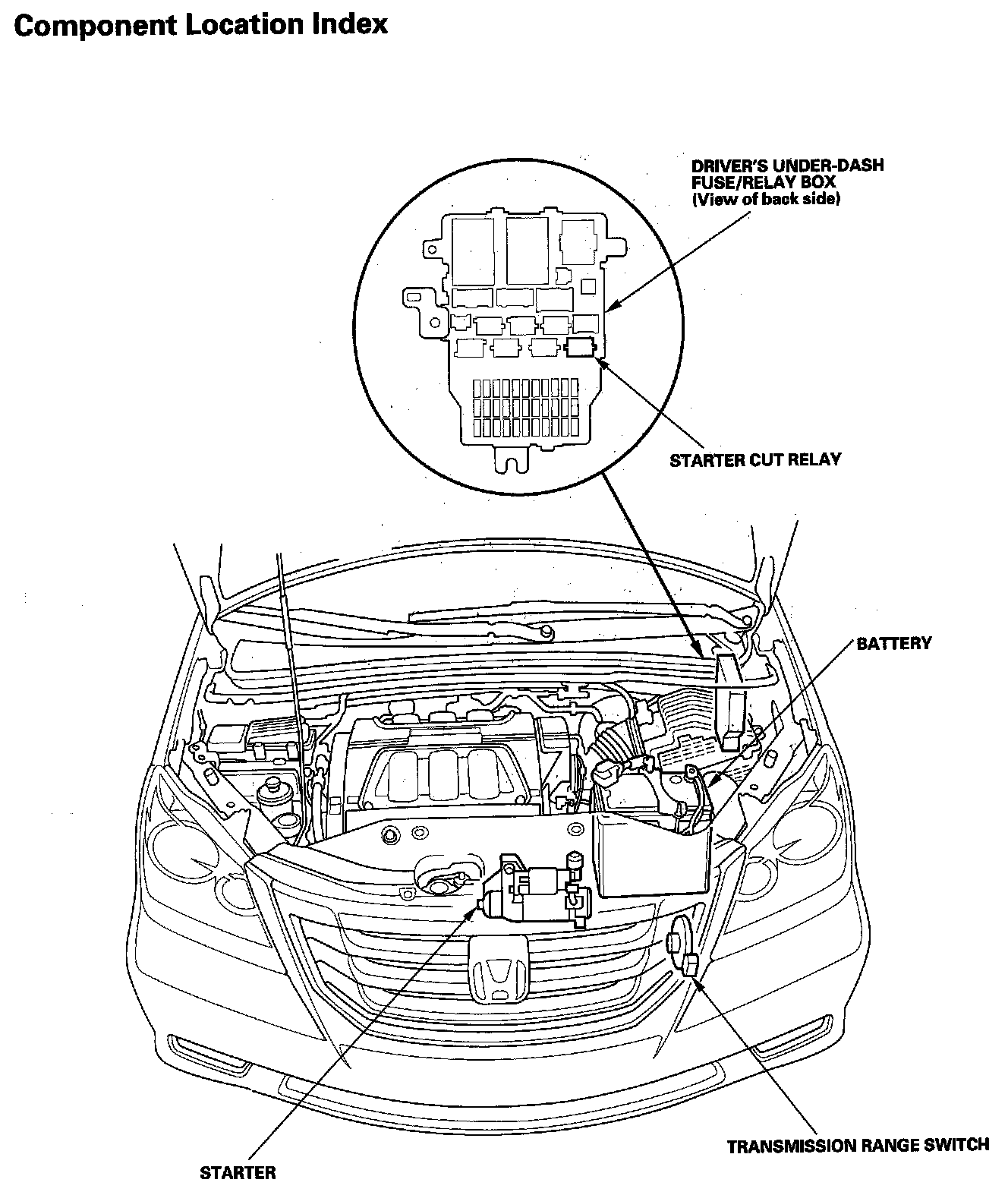

Starting System Component Location Index:

Multiplex Integrated Control System Component Location Index:

VSA System Component Location Index:

Rear Window Defogger Component Location Index:

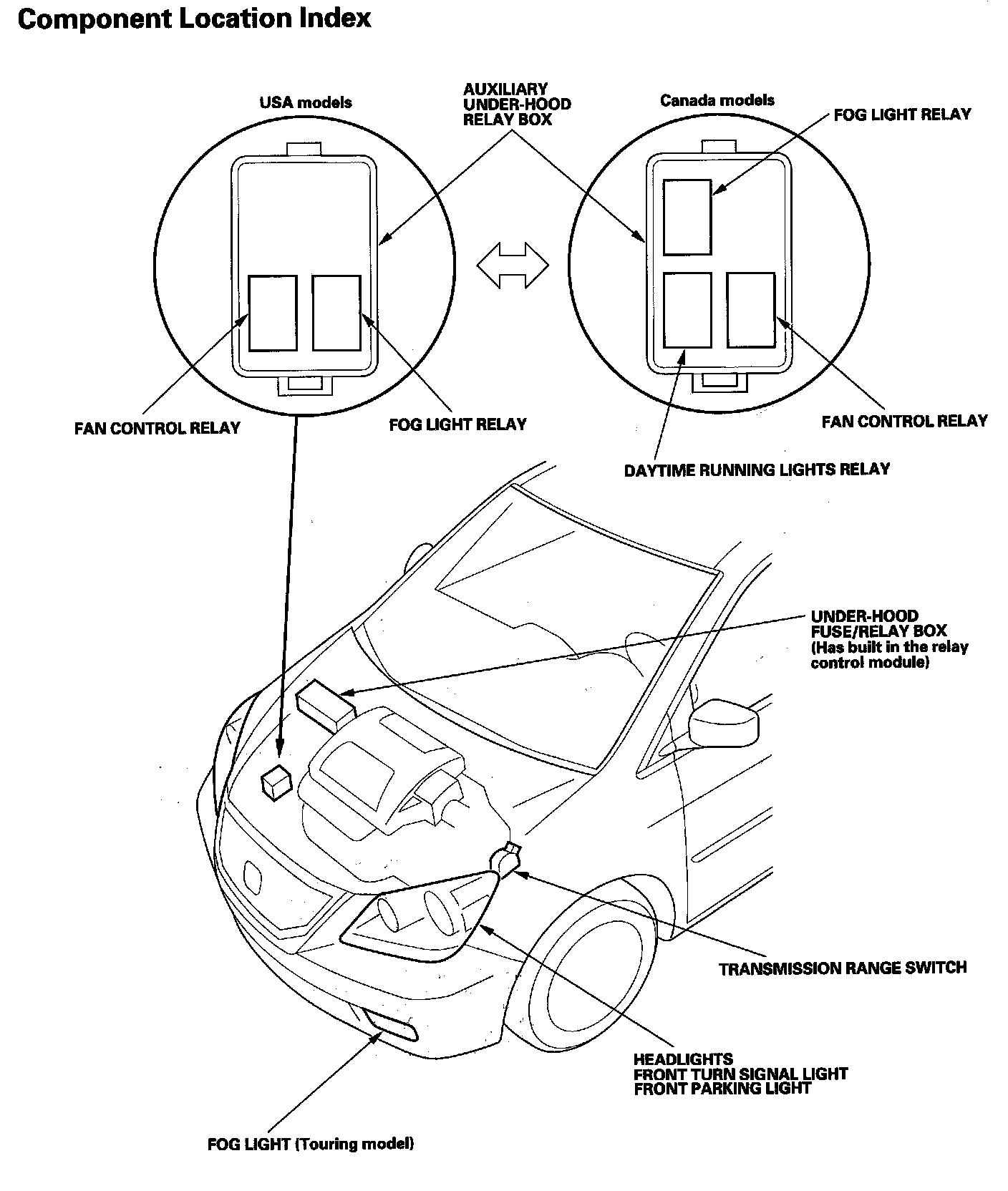

Exterior Lights Component Location Index:

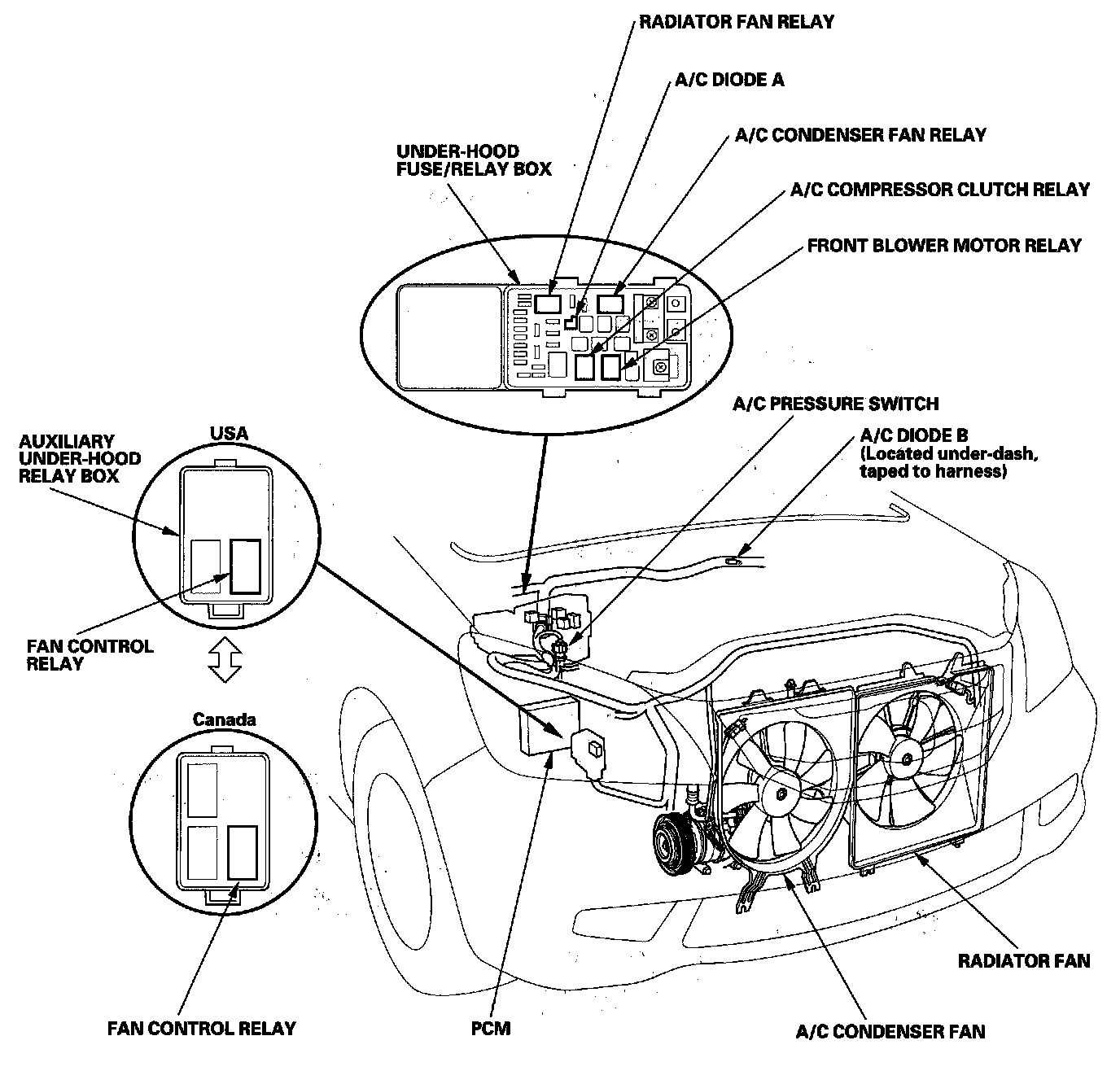

Heating/Air Conditioning Component Location Index:

Fan Controls Component Location Index:

Relay And Control Unit Locations Rear Quarter Panel, Sliding Door, And Roof:

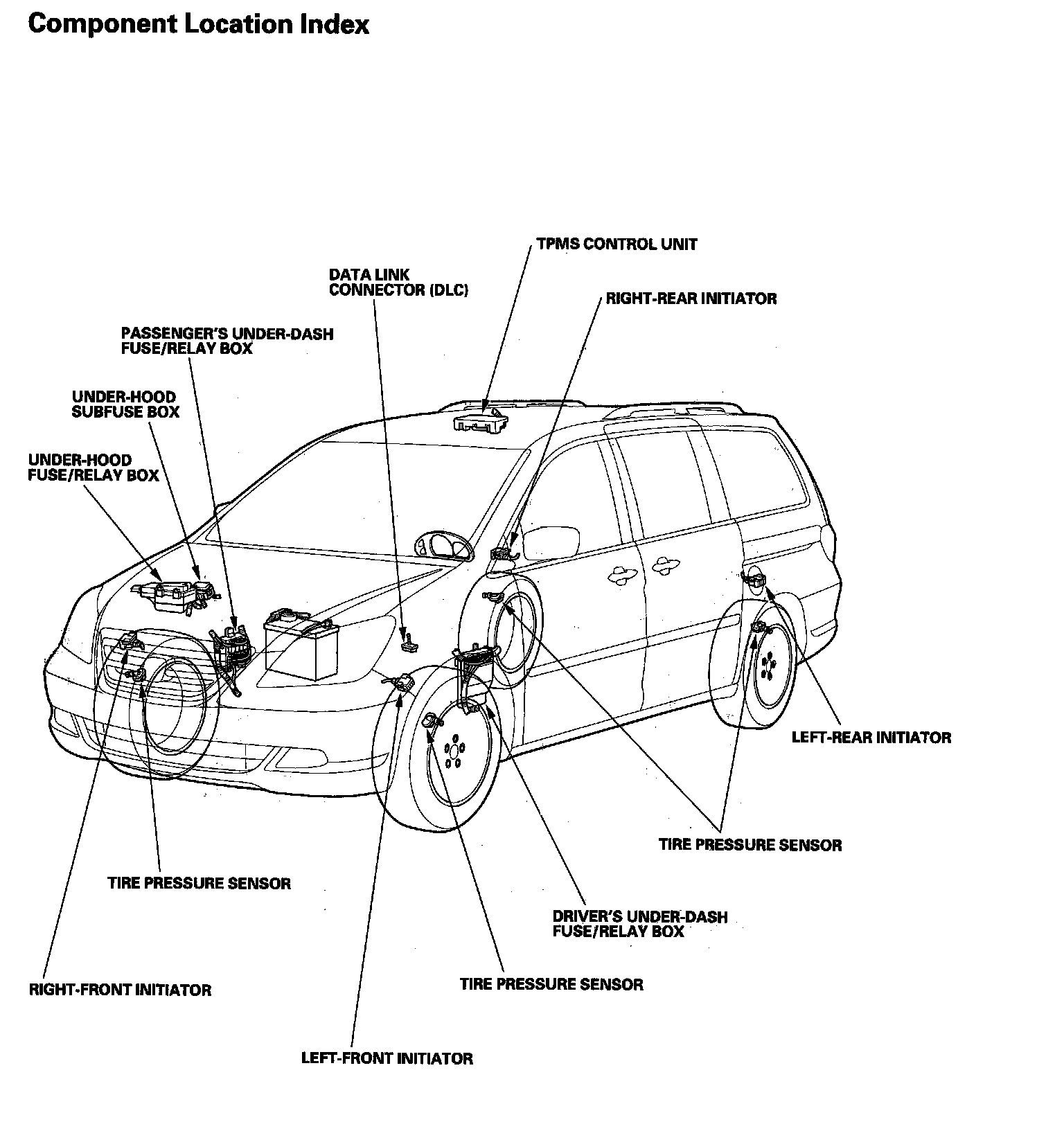

TPMS Component Location Index, Touring Model:

TPMS System Component Location Index, Except Touring:
