Canister Purge Control Valve: Service and Repair

EVAP Canister Purge Valve Replacement

J35A6 engine, J35A7 engine ('07 model)

1. Disconnect the hoses (A) and the EVAP canister purge valve 2P connector (B).






2. Remove the EVAP canister purge valve (C).
3. Install the parts in the reverse order of removal.

J35A7 engine ('08 model)

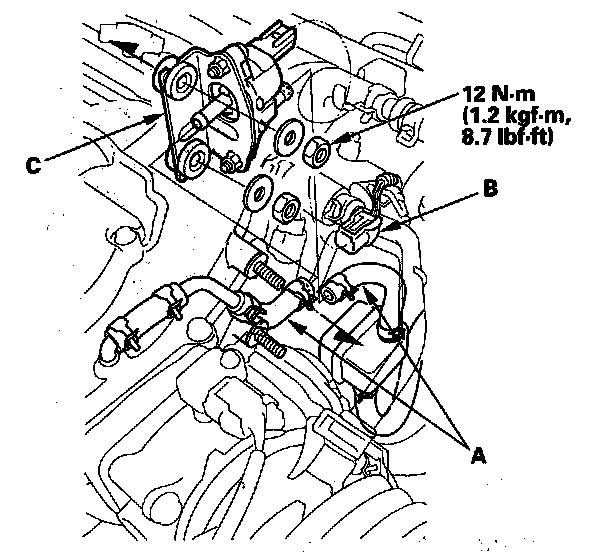

1. Disconnect the hoses (A) and the EVAP canister purge valve 2P connector (B).






2. Remove the EVAP canister purge valve and the bracket (C).
3. Remove the EVAP canister purge valve (A) from the bracket (B).






4. Install the parts in the reverse order of removal.
