J35A6

Ignition Coil Removal/Installation

J35A6, '07 model J35A7 engines

1. Remove the engine cover.

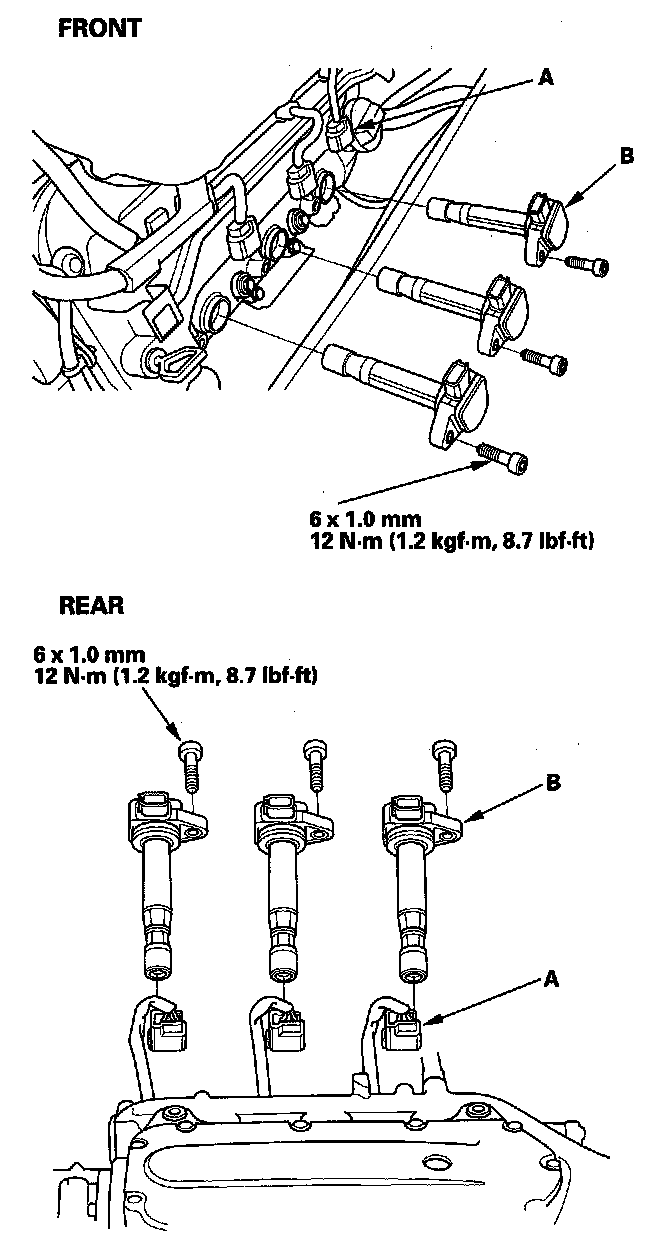

2. Disconnect the ignition coil connectors (A), then remove the ignition coils (B).

3. Install the ignition coils in the reverse order of removal.
