Park Pin Switch Test

Park Pin Switch Test

1. Remove the driver's side dashboard lower cover.

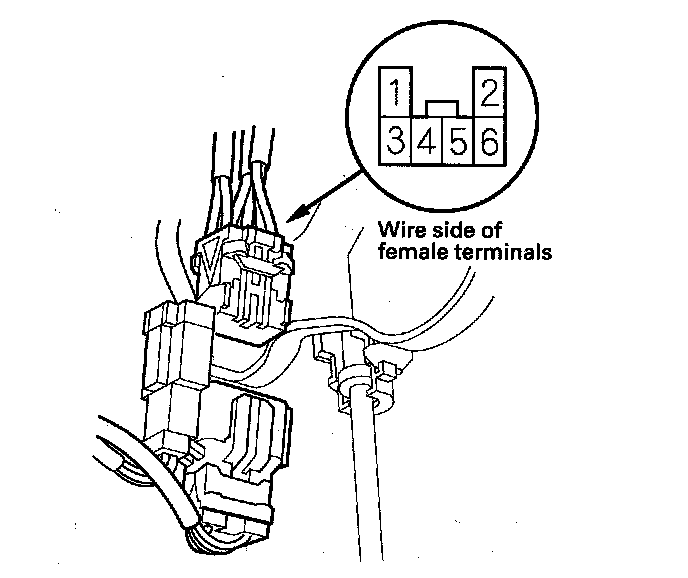

2. Disconnect the D3 switch/park pin switch/A/T gear position indicator panel light harness connector.
3. Check for continuity between D3 switch/park pin switch/A/T gear position indicator panel light harness connector terminals No. 2 and No. 6 with the shift lever is in P, and with the shift lever out of P.





4. There should be no continuity when the shift lever is in P, and there should be continuity when the shift lever in any position other than P.
5. If the park pin switch is OK, connect the connector and install the driver dashboard lower cover. If the switch is faulty, replace the park pin switch.
