Exterior Lights MICU Input Test




Exterior Lights MICU Input Test

NOTE:

- The MICU turns on the headlights (high beams) in a dim mode for the daytime running lights under the following conditions:
- The ignition switch is turned to ON (II)

- The headlight switch OFF

- The parking brake is released (the parking brake switch OFF)

- If the vehicle is equipped with an optional remote control engine start system (Canada models), the daytime running lights will not function when started with the remote start.

1. Before testing the MICU, troubleshoot the multiplex integrated control unit first, using B-CAN System Diagnosis Test Mode A. Troubleshooting - B-CAN System Diagnosis Test Mode A

2. Check the No. 12 (10 A), No. 13 (10 A), No. 15 (7.5 A), No. 16 (10 A), No. 17 (10 A), No. 18 (20 A), No. 19 (15 A), No. 21 (30 A), and No. 37 (7.5 A) fuses in the under-dash fuse/relay box. If any fuse is blown, replace it and go to step 3.

3. Disconnect under-dash fuse/relay box connectors C, E, F, G, M, S, and T.
NOTE: All connector views are wire side of female terminals.









4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.

- If the terminals look OK, go to step 5.

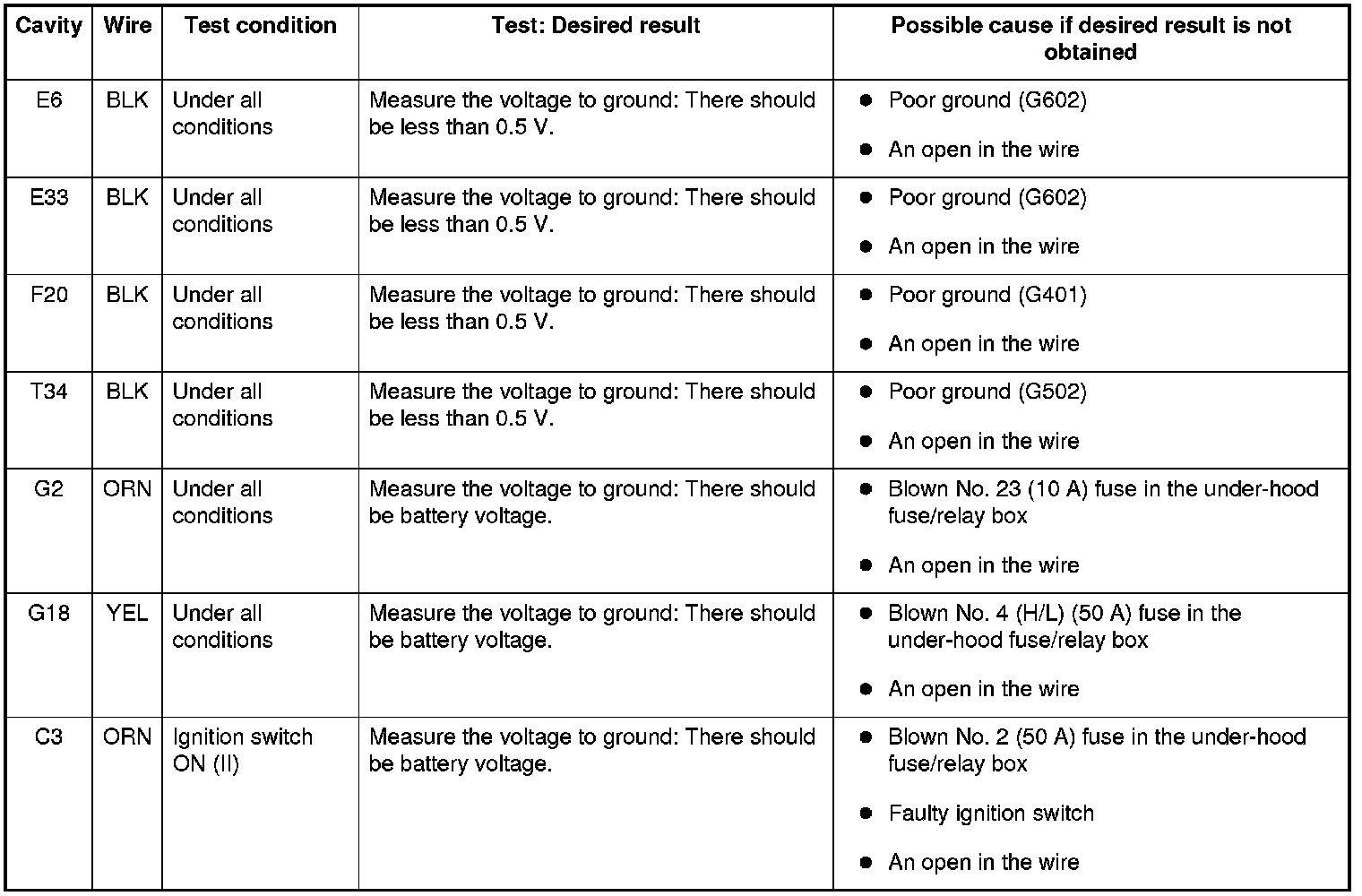

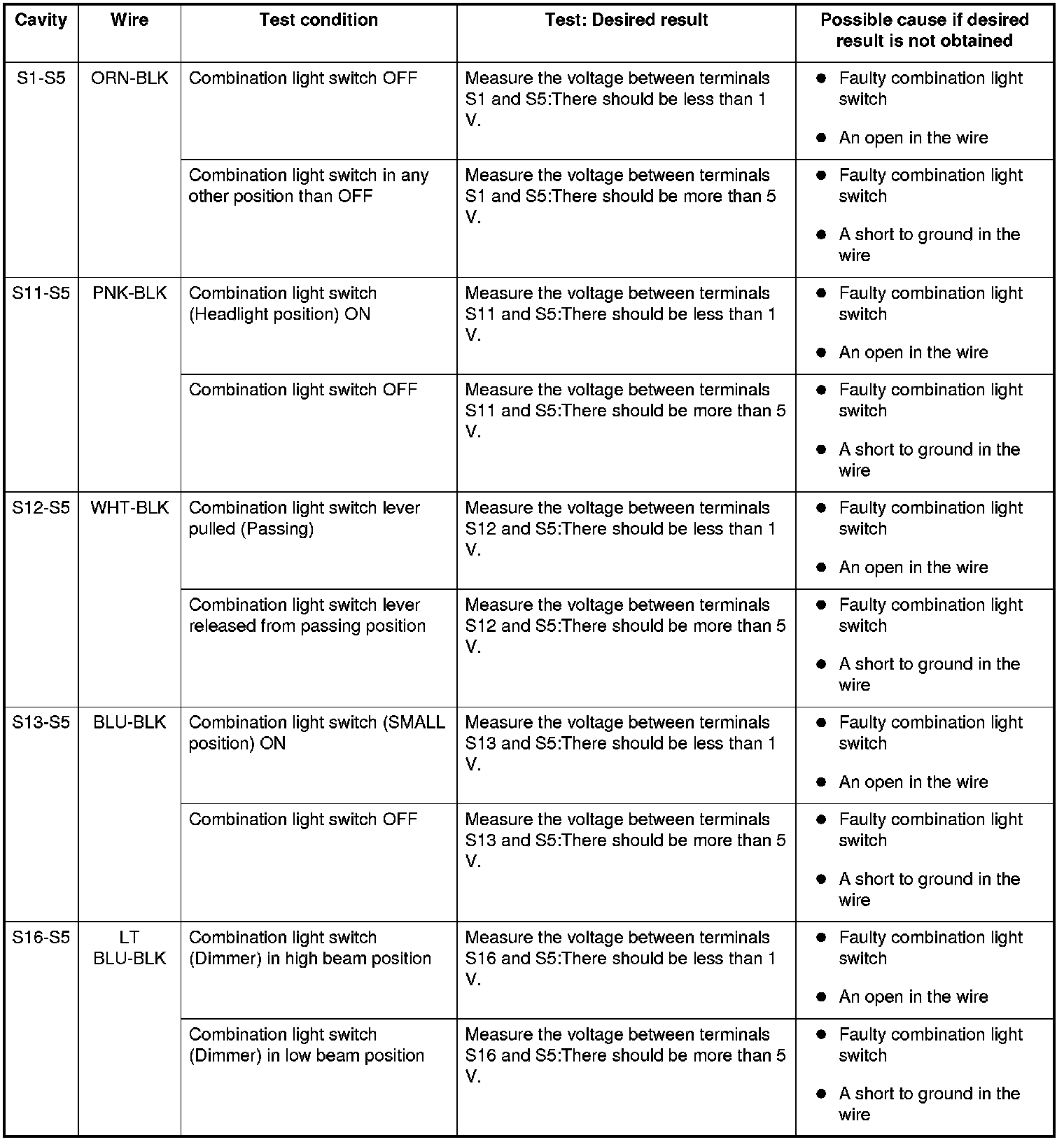

5. With the connectors still disconnected, do these input tests at the following connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 6.

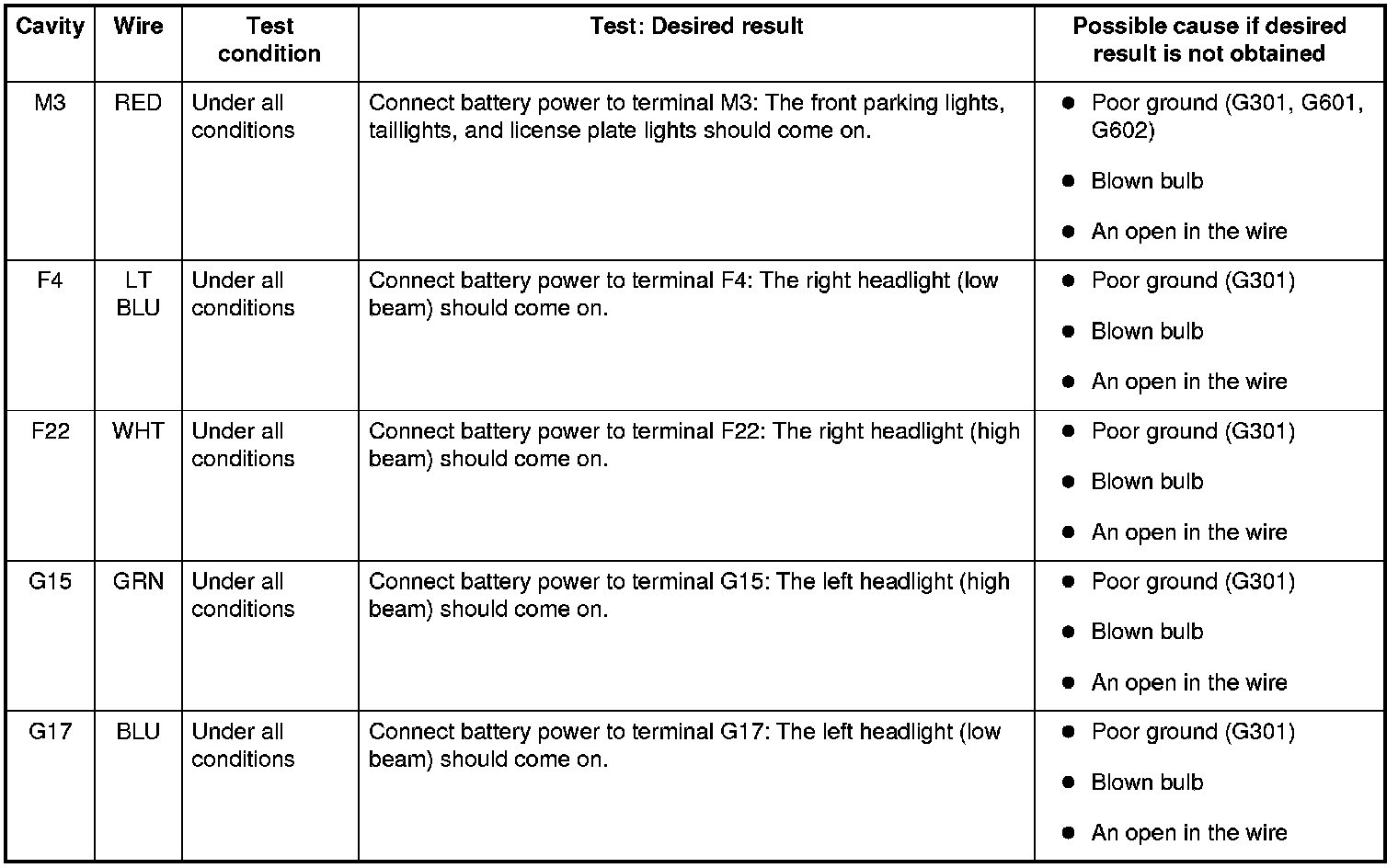

6. Reconnect the connectors, turn the ignition switch ON (II), and do these input tests at the following connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, the MICU is faulty; replace the under-dash fuse/relay box. Under-dash Fuse/Relay Box Removal and Installation
