Fuel Tank: Service and Repair

Fuel Tank Replacement

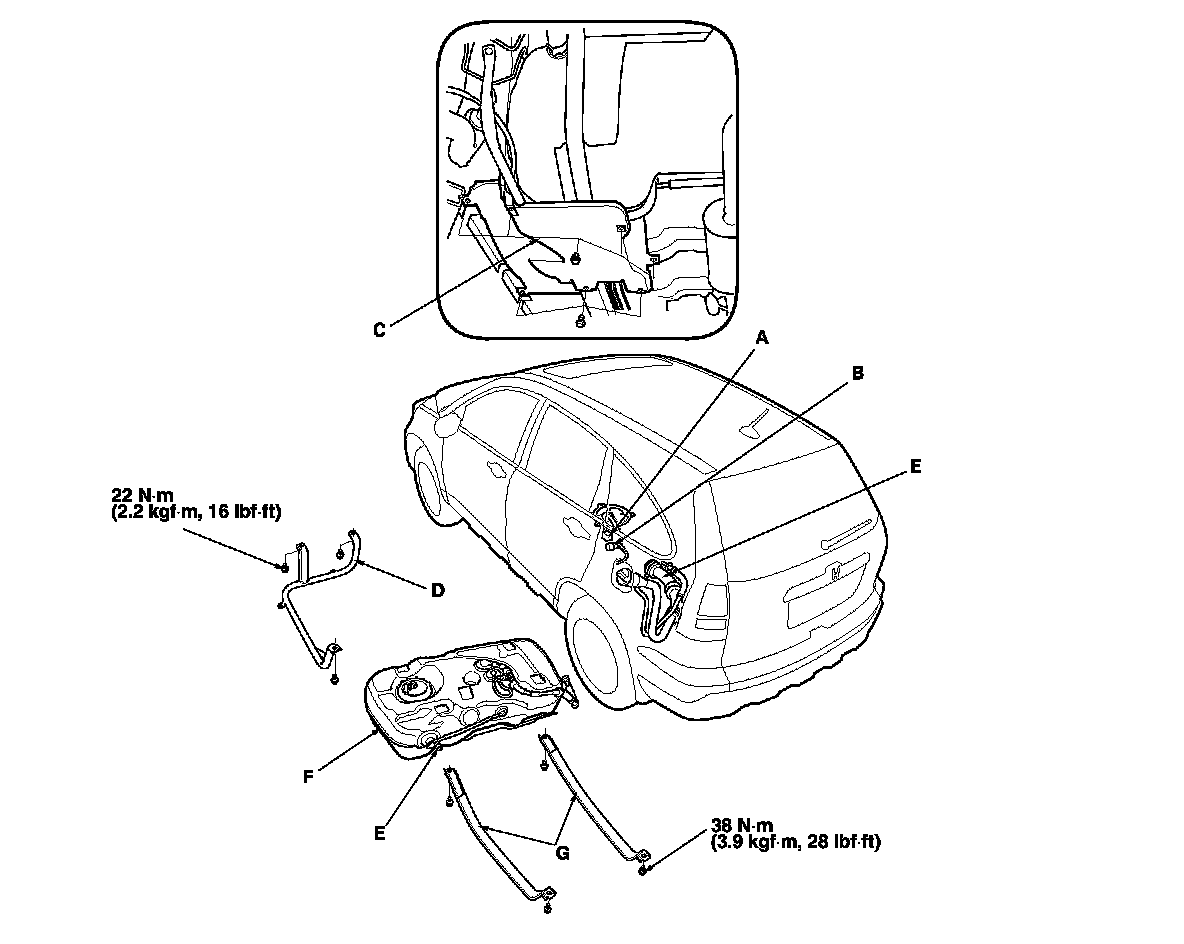

1. Drain the fuel tank, Service and Repair then disconnect the fuel tank unit 4P connector (A) and the quick-connect fittings (B).

2. Raise the vehicle on a lift.

3. Remove the EVAP canister. Service and Repair

4. Remove the cover (C) and the fuel tank guard (D).

5. 4WD model: Remove the propeller shaft.

6. Remove the exhaust pipe. Service and Repair

7. Disconnect the hoses (E). Slide back the clamps, then twist the hoses as you pull to avoid damaging them.

8. Place a jack or other support under the tank (F).

9. Remove the strap bolts and the straps (G).

10. Remove the fuel tank.

11. Install the parts in the reverse order of removal.
