Hazard Warning Switch Test/Replacement
Hazard Warning Switch Test/Replacement 1.
Remove the center vent.
Dashboard Center Vent Removal/Installation 2.

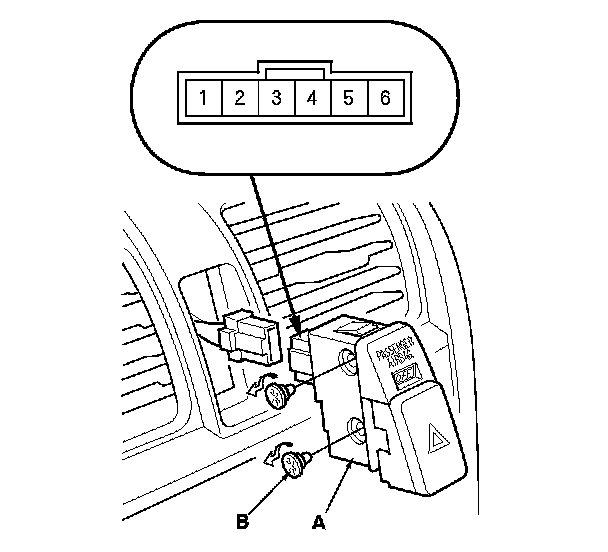

Remove the
hazard warning switch (A), and disconnect the 6P connector from the switch.
3.

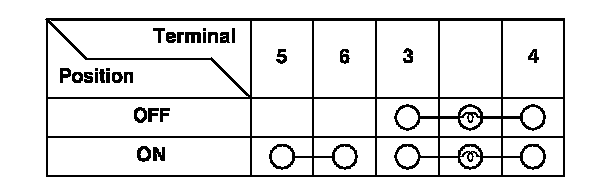

Check for continuity between the terminals in each switch position according to the table.
4.
If the continuity is not as specified, replace the bulb (B) or
hazard warning switch.
