Front Inner Fender Replacement

Front Inner Fender Replacement

NOTE: Take care not to scratch the body.

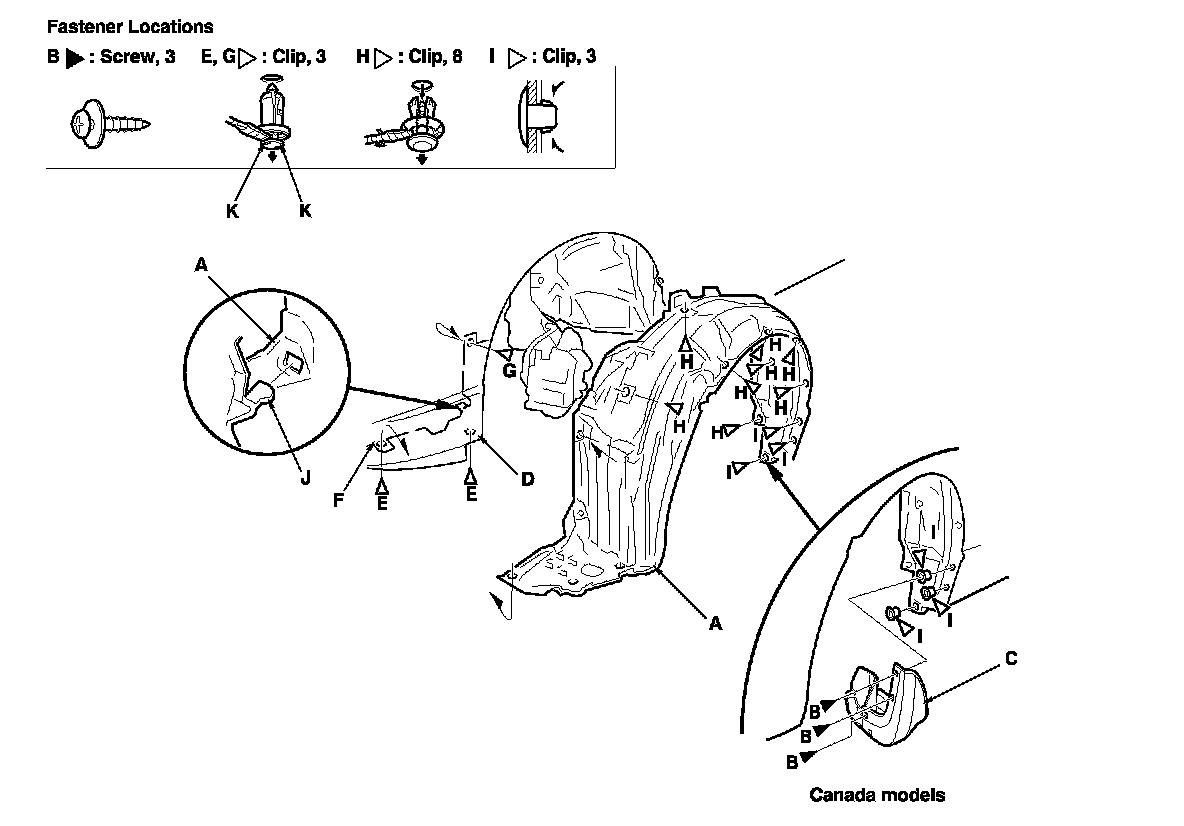

1. Remove the front inner fender (A).
-1 On the back of the wheel arch, remove the screws (B), and remove the front splash guard (C) (Canada models).
-2 From under the front bumper (D), remove the clips (E) securing the splash shield (F) and the front inner fender to the front bumper.
-3 From the wheel arch, remove the clips (G, H, I) securing the front inner fender (and the splash shield) to the body.
-4 Release the hook (J) of the splash shield, then remove the front inner fender.
-4 NOTE: To release the clips E and G, pry up on the center pin at the notch (K).

2. Install the inner fender in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips and the hooks into place securely.
