Front Undercover Replacement

Front Undercover Replacement

NOTE:

- Take care not to scratch the body.

- Put on gloves to protect your hands.

- Have an assistant help you when removing and installing the undercover.

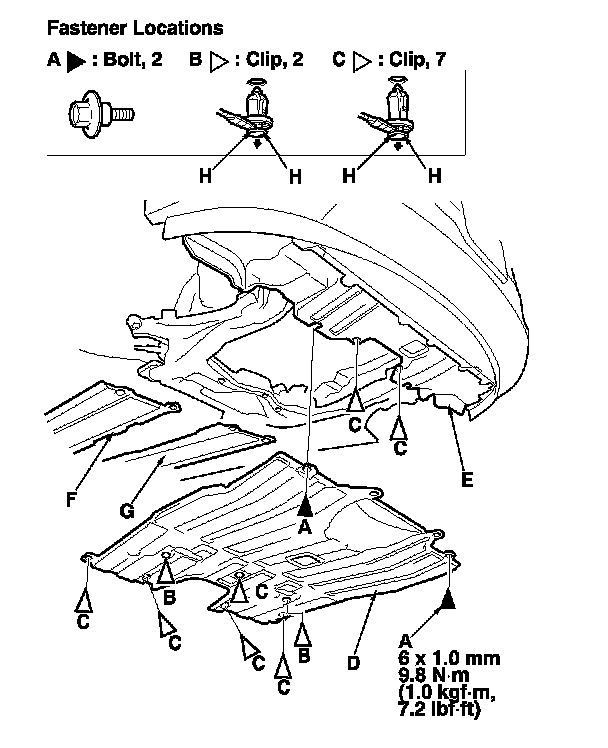

1. Remove the bolts (A), and the clips (B, C), then remove the front undercover (D) from the splash shield (E), the right front floor undercover (F), and the left front floor undercover (G).
NOTE: To release the clips B and C, pry up on the center pin at the notch (H).

2. Install the undercover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.
