Pinout Values and Diagnostic Parameters

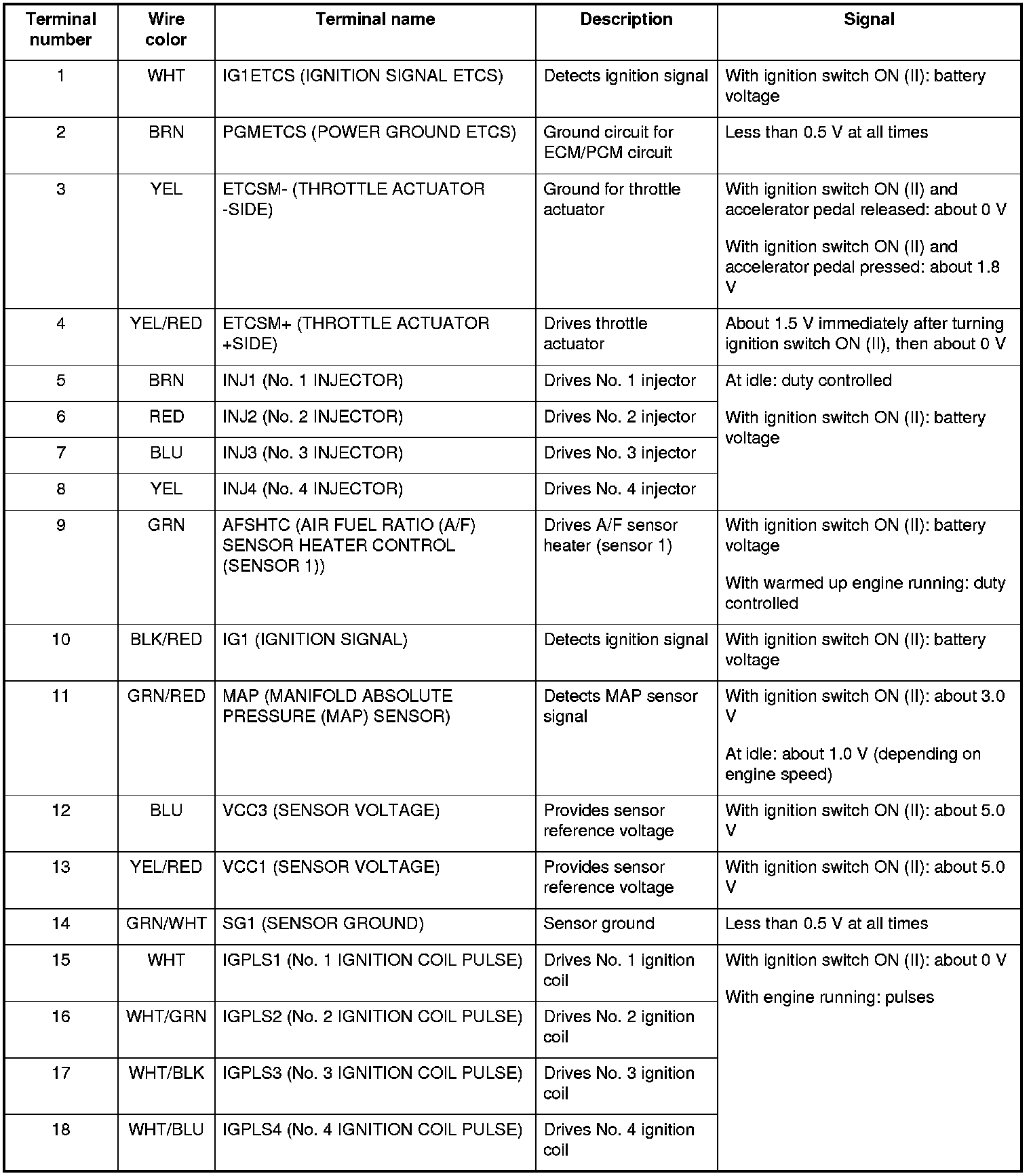

ECM/PCM Inputs and Outputs at Connector A (square) (49P)













*1: A/T

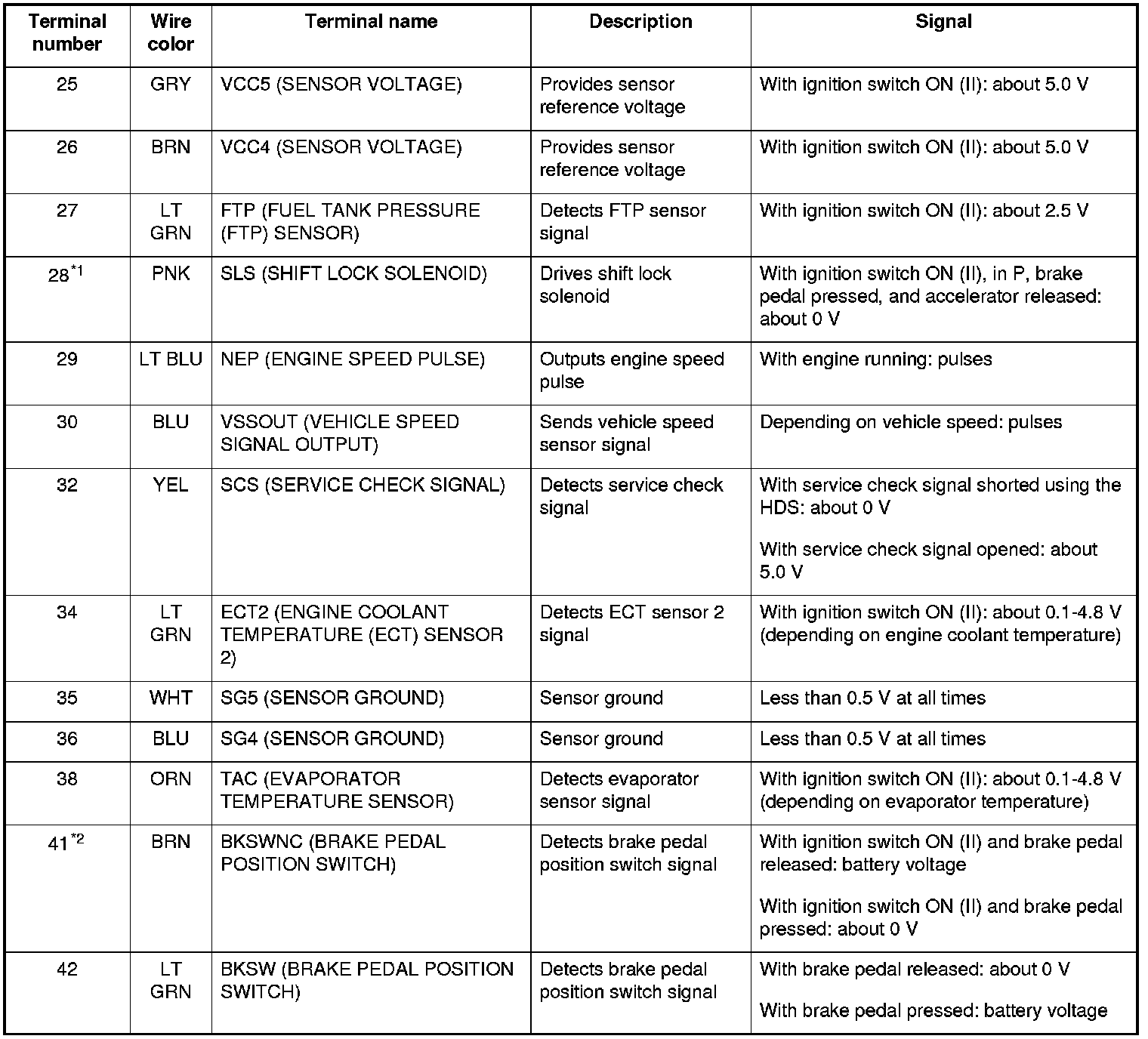

ECM/PCM Inputs and Outputs at Connector A (square) (49P)









*1: A/T

*2: With cruise control

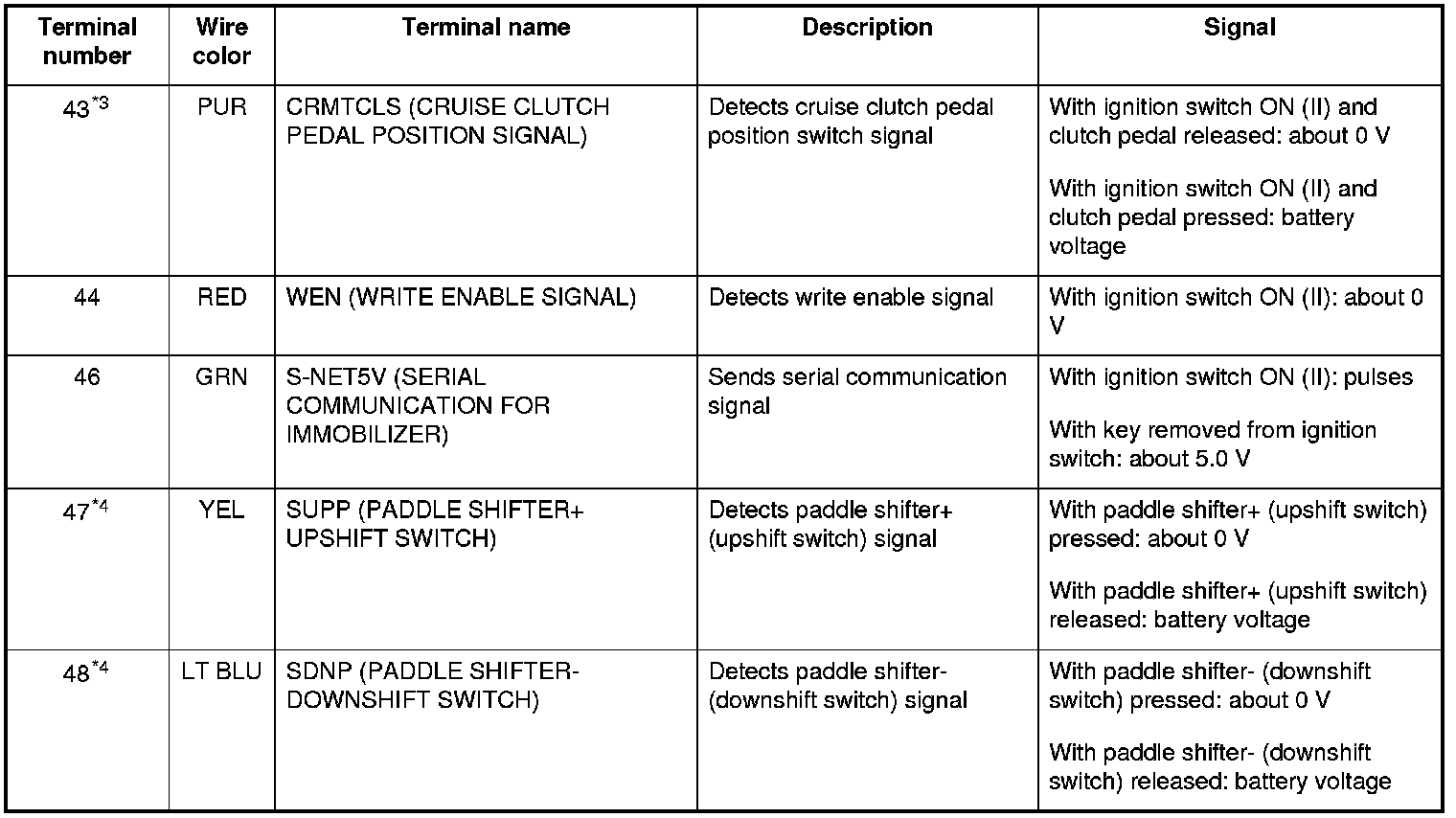

ECM/PCM Inputs and Outputs at Connector A (square) (49P)









*3: M/T with cruise control

*4: A/T (with paddle shifter)

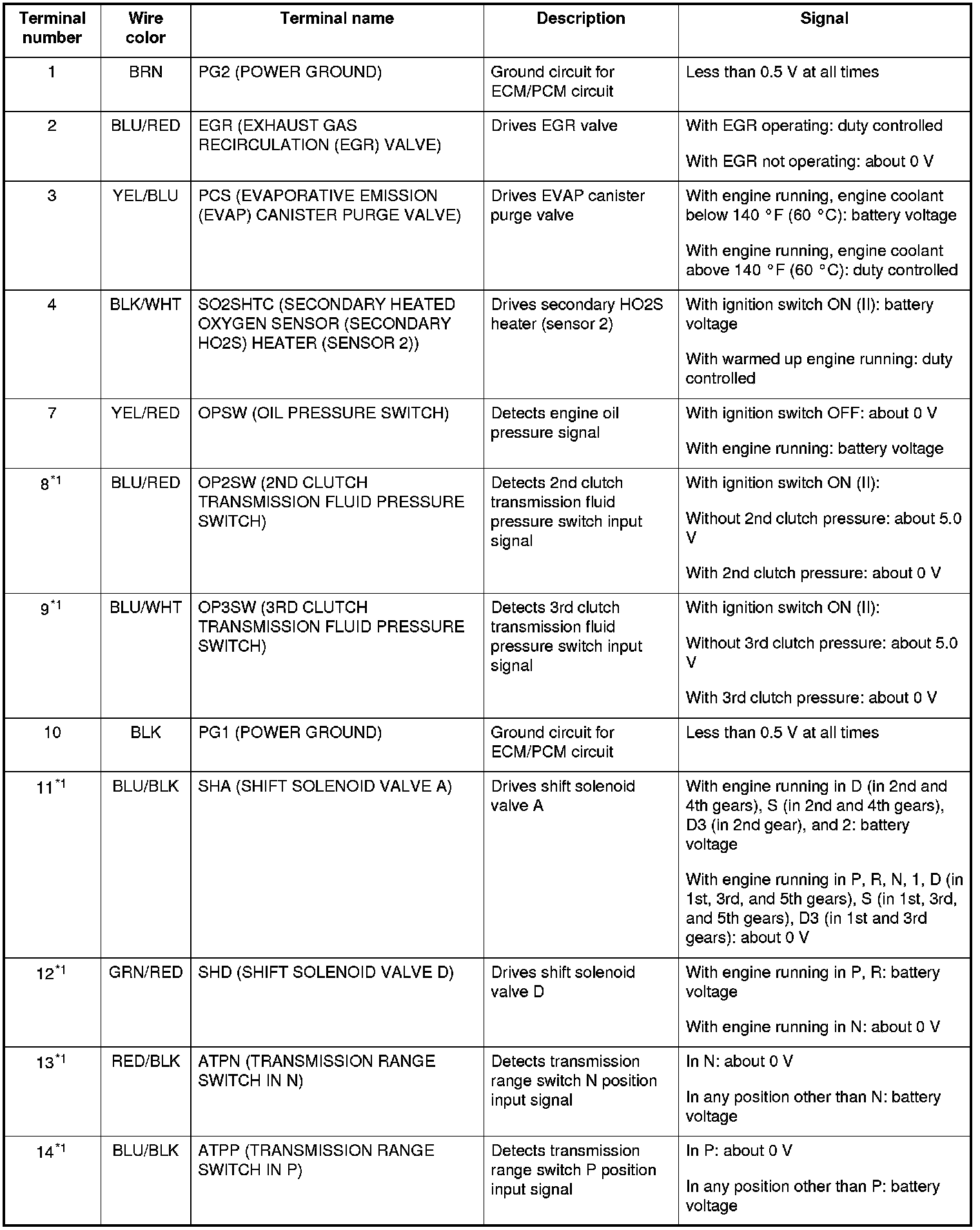

ECM/PCM Inputs and Outputs at Connector B (triangle) (49P)













*1: A/T

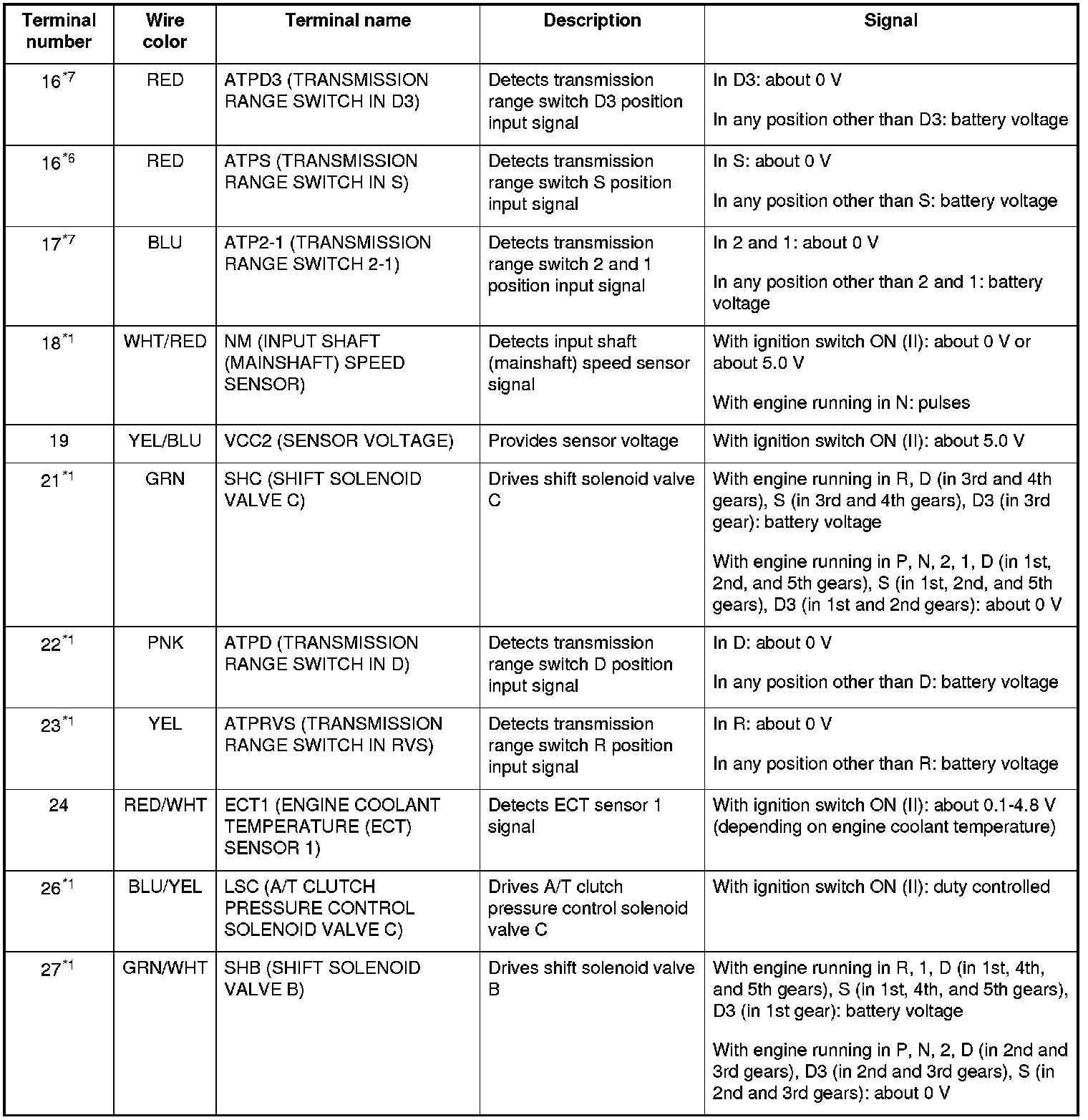

ECM/PCM Inputs and Outputs at Connector B (triangle) (49P)









*1: A/T

*6: A/T (with paddle shifter)

*7: A/T (without paddle shifter)

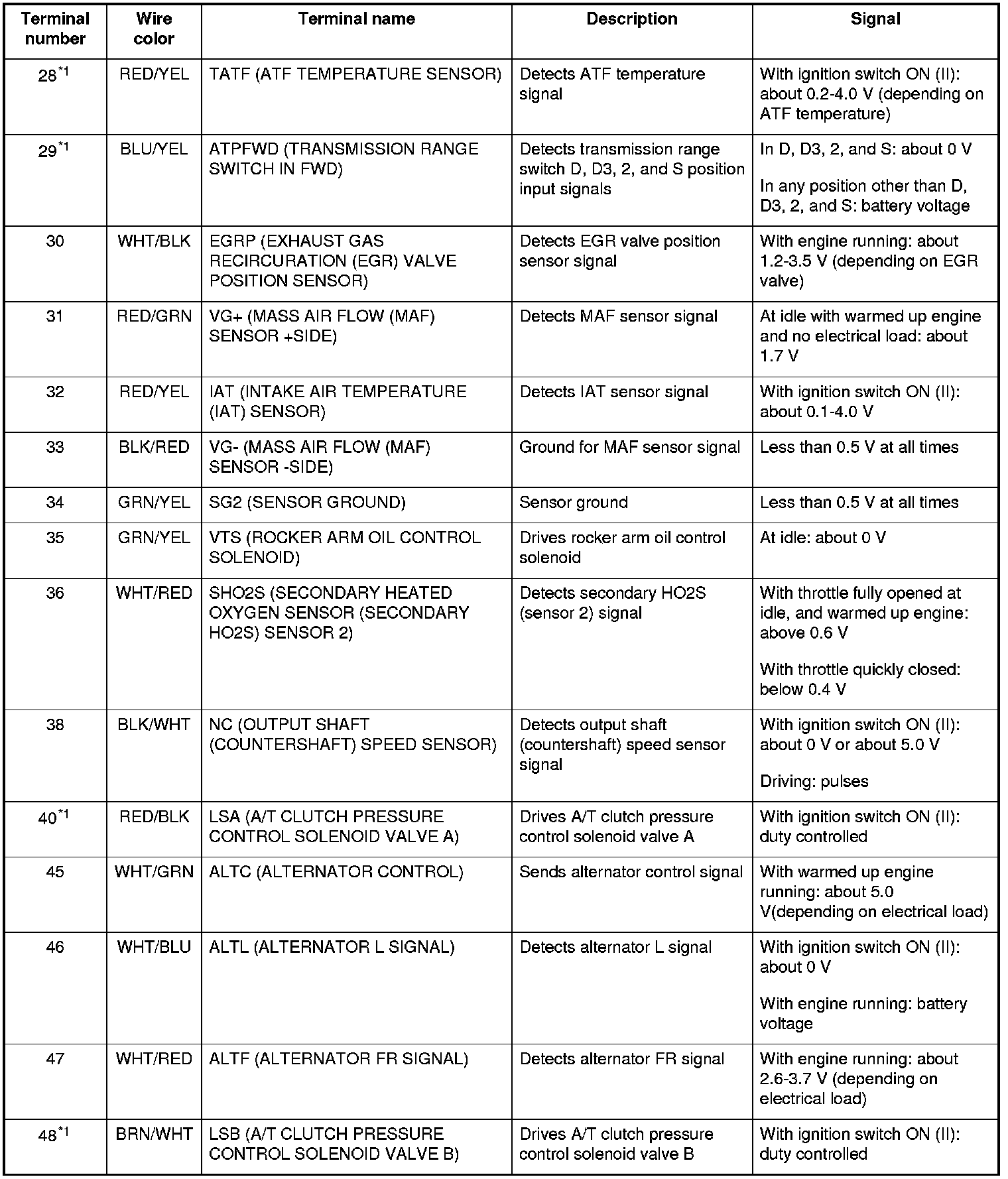

ECM/PCM Inputs and Outputs at Connector B (triangle) (49P)









*1: A/T

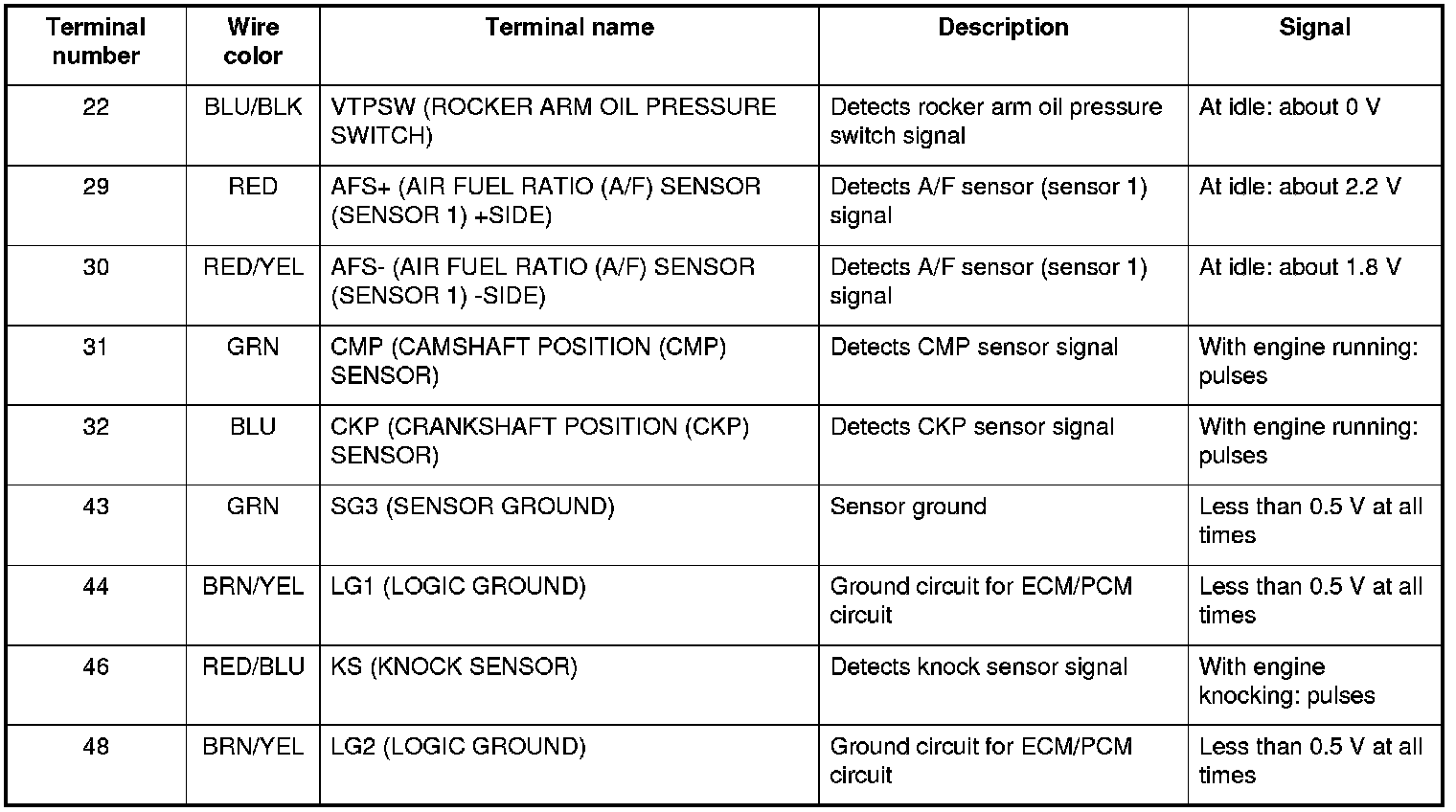

ECM/PCM Inputs and Outputs at Connector C (circle) (49P)













ECM/PCM Inputs and Outputs at Connector C (circle) (49P)
