Front Grille Replacement

Front Grille Replacement

Grille and Molding Replacement ('08-10 Models)

NOTE:

- Take care not to scratch the front grille or the body.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

1. Remove the front bumper Front Bumper.

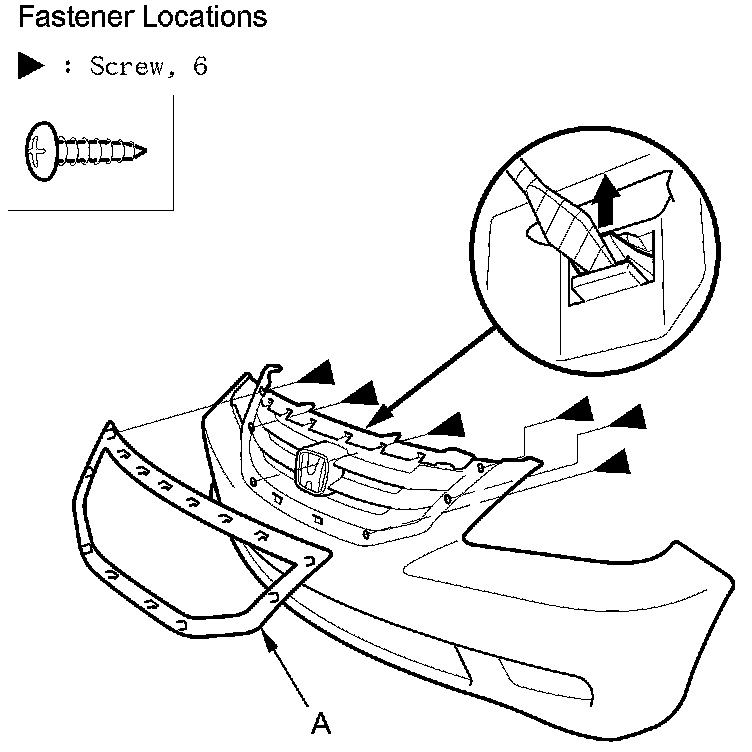

2. Remove the screws, then remove the front grille molding (A).

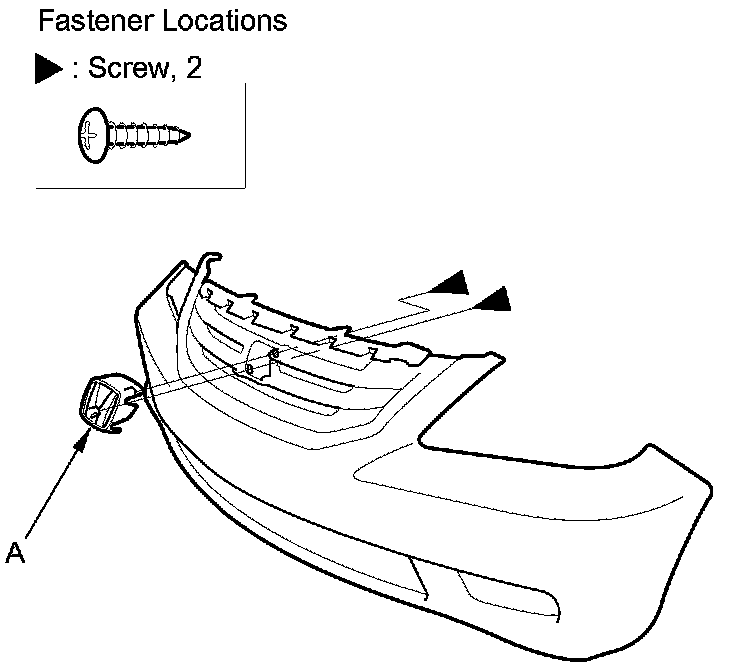

3. Remove the screws, then remove the front "H" emblem base (A).

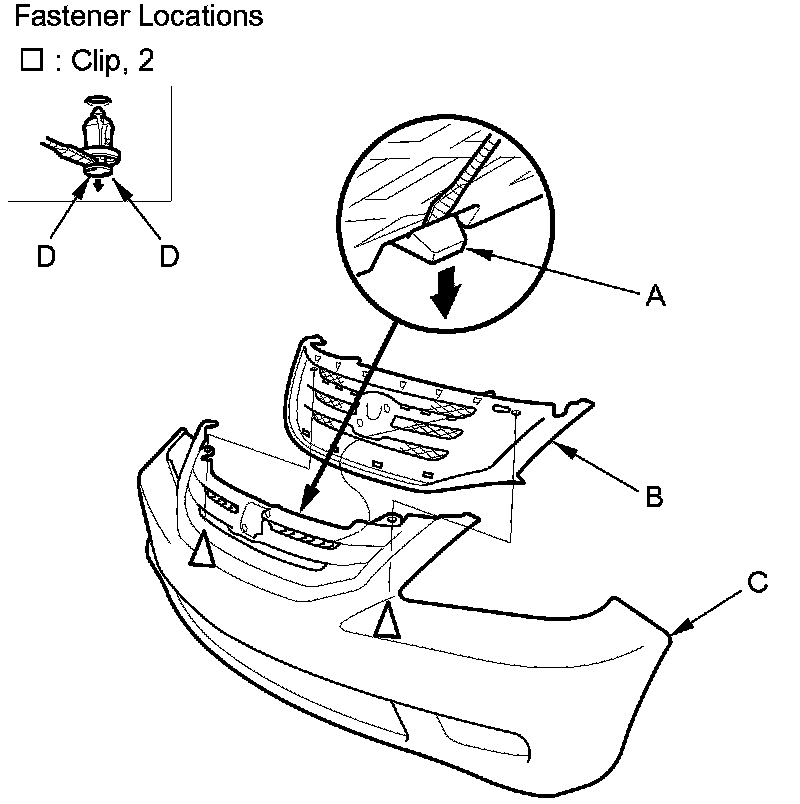

4. Detach the clips, and release the hooks (A), then remove the grille (B) from the front bumper (C).

NOTE: Release the clips by prying up on the center pin at the notch (D).






5. Install the grille and the molding in the reverse order of removal.
