Hood Weatherstrip: Service and Repair

Hood Seal and Hood Molding Replacement

1. '07 Canada models: Detach the clips (A, B) with a clip remover, then remove the hood molding (C), the left hood seal (D), and the right hood seal (E). Take care not to scratch the hood.

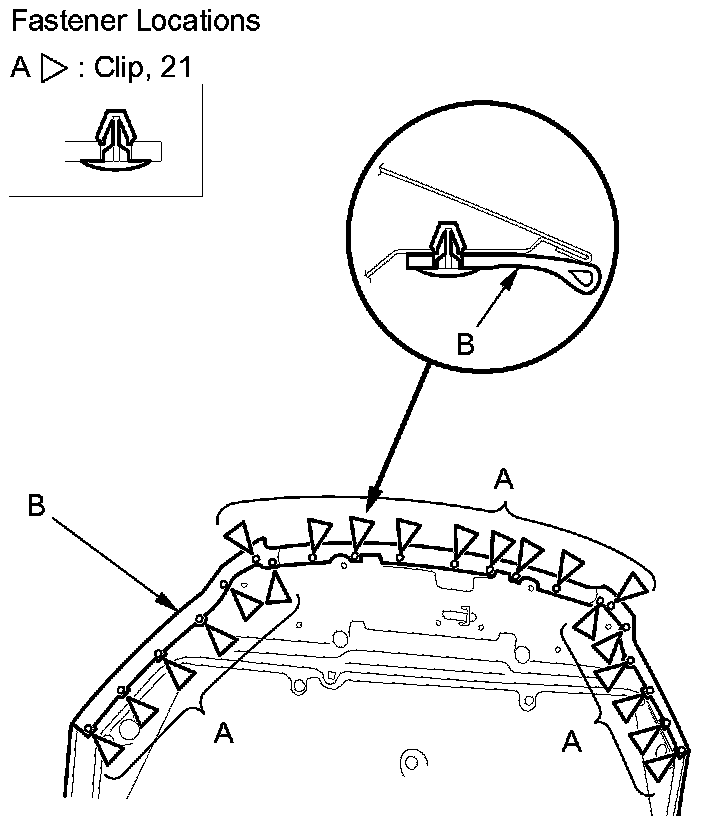

2. Except '07 Canada models: Detach the clips (A) with a clip remover, then remove the hood seal (B). Take care not to scratch the hood.






3. Install the hood seal and the hood molding in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
