Rear Blower Motor Replacement
Rear Blower Motor Replacement 1.
Remove the right rear side trim panel
Interior Trim Removal/Installation - Rear Side Area.
2.

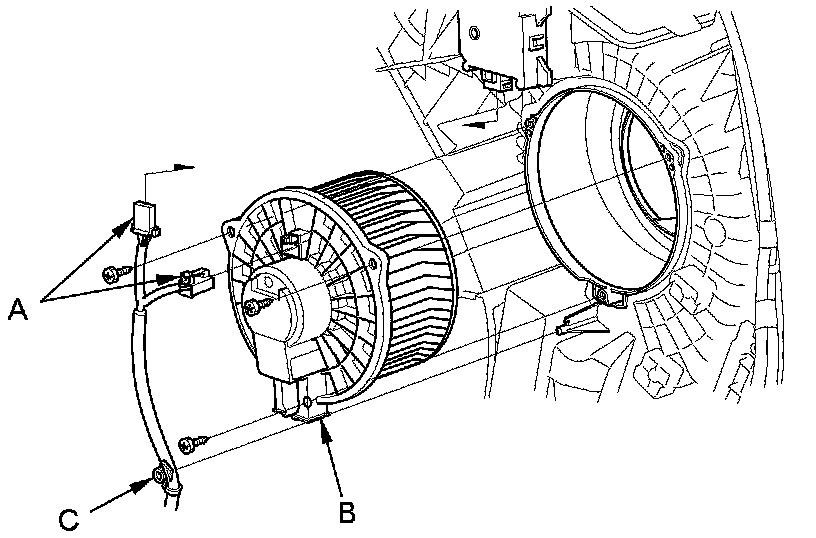

Disconnect the connectors (A) from the rear mode control motor and the rear blower motor (B), then remove the wire harness clip (C), the self-tapping screws and the rear blower motor.
3.
Install the motor in the reverse order of removal.
