Windshield Washer Hose: Service and Repair
Washer Tube Replacement 1.
Remove the right inner fender:
-
'07 model
-
'08-10 models
Front Inner Fender Replacement 2.

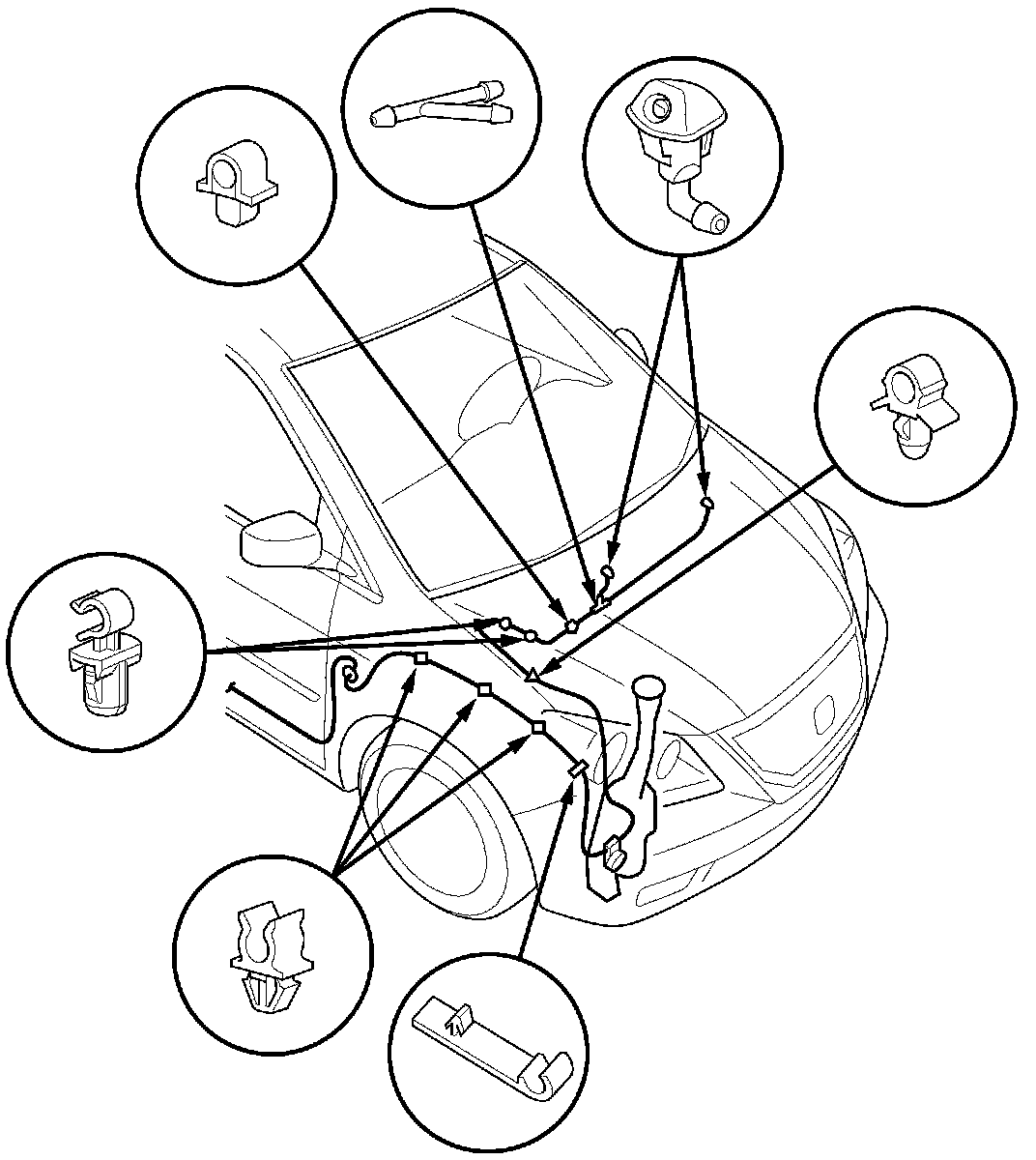

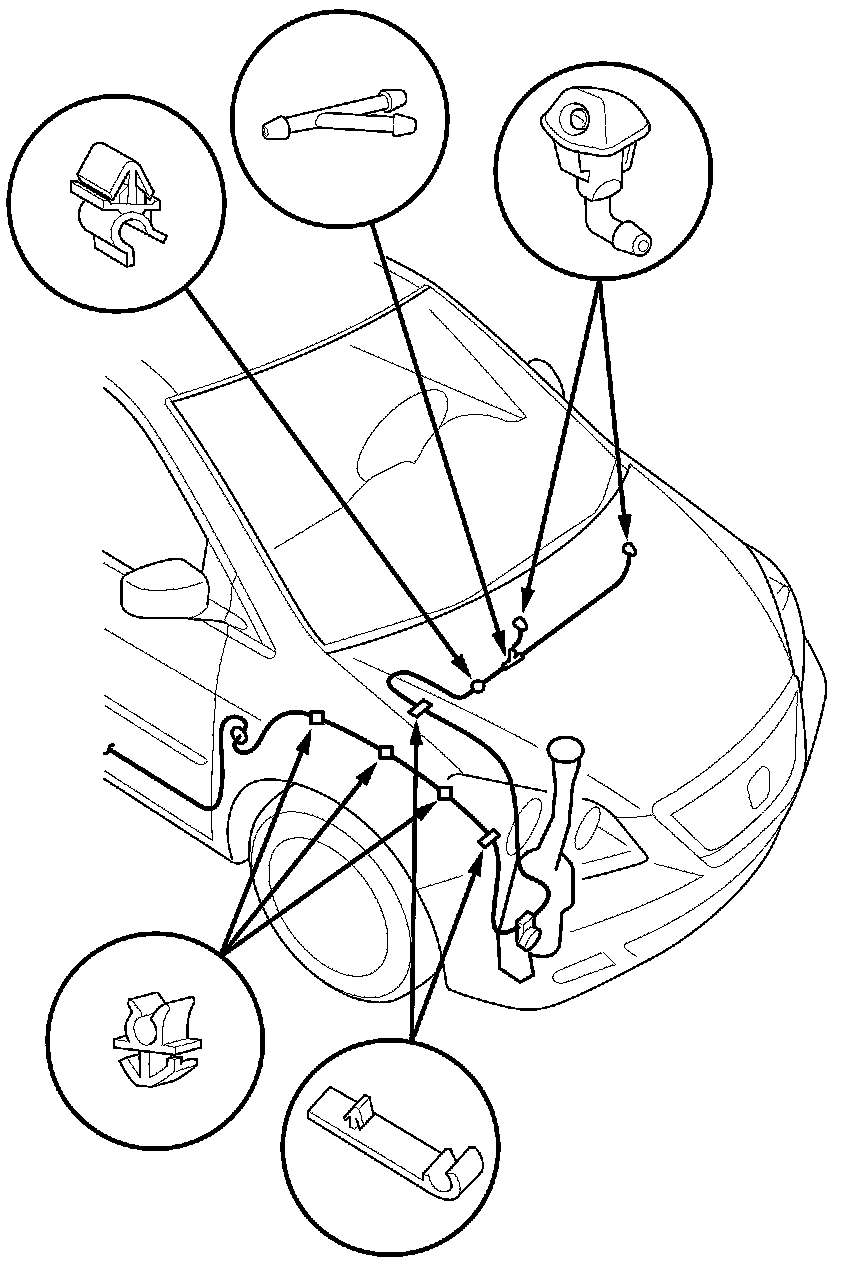

Remove the windshield washer nozzles and clips, then remove the tubes.
'07 model'08-10 models'07 model'08-10 models 3.
Install in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer operation.
