Rear Differential Removal

Rear Differential Removal

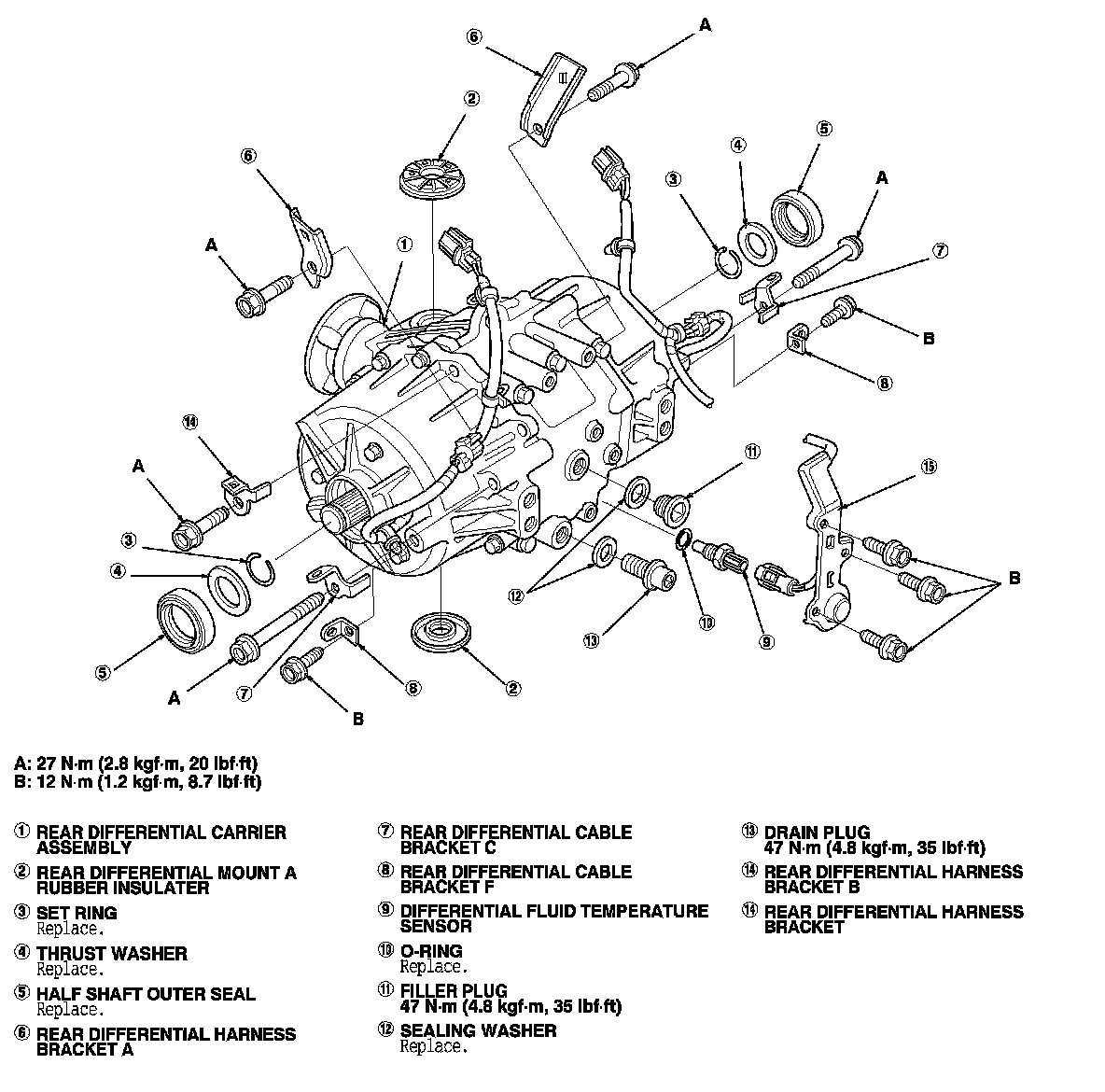

Exploded View





Special Tools Required

- Driveshaft remover 07AAD-S9VA000
1. Drain the differential fluid. Rear Differential Fluid Inspection and Replacement

2. Make a reference mark across the propeller shaft, the transfer, and the rear differential, then remove the propeller shaft. Propeller Shaft Removal

3. Remove the rear driveshaft. Rear Driveshaft Removal

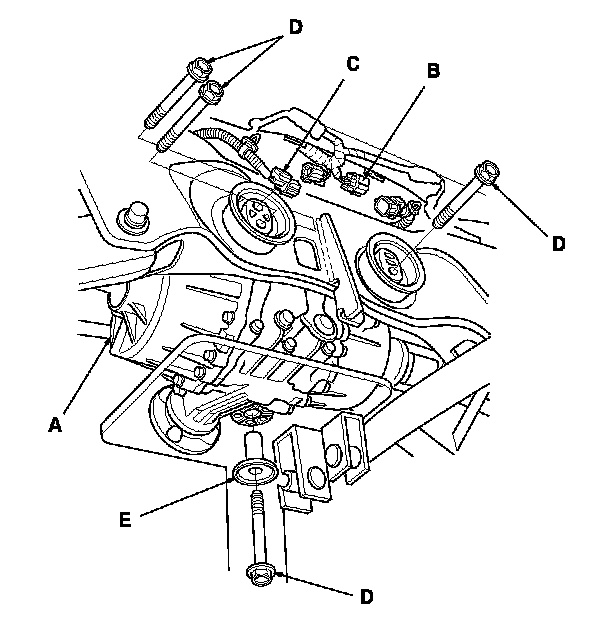

4. Place a transmission jack under the rear differential (A).

5. Disconnect the 6P (B) and 2P (C) connectors, then remove the mounting bolts (D) and washer (E).






6. Lower the rear differential a little on the transmission jack.

7. Disconnect the breather hose (A) from the rear differential and remove the set rings (B).

8. Lower the rear differential on the transmission jack.
