Passengers Under-dash Fuse/Relay Box (Passengers MICU) Removal/Installation




Passenger's Under-dash Fuse/Relay Box (Passenger's MICU) Removal/Installation

NOTE: SRS components are located in this area. Review the SRS component locations 4-door SRS Component Location Index (4-Door), 2-door SRS Component Location Index (2-Door), and precautions and procedures Service and Repair before doing repairs or servicing.

Removal

1. Do the battery terminal disconnection procedure Procedures.

2. Remove the passenger's kick panel:

- 4-door Interior Trim Removal/Installation - Door Areas (4-Door)
- 2-door Interior Trim Removal/Installation - Door Areas (2-Door)

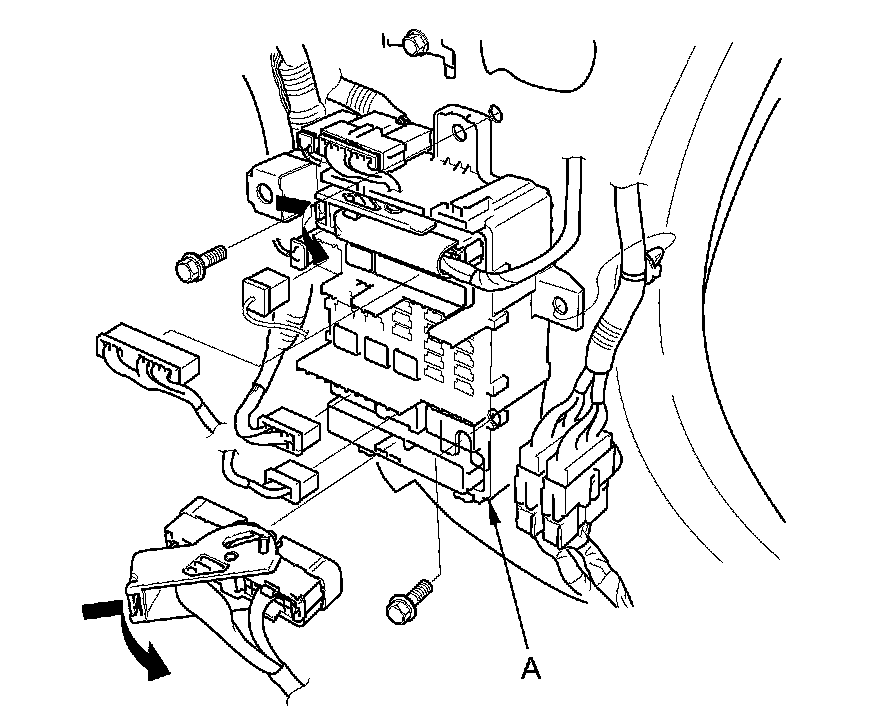

3. Disconnect the connectors from the passenger's under-dash fuse/relay box (A).





4. Loose the mounting bolt from the lower side of passenger's under-dash fuse/relay box.

5. Remove the mounting bolt from the upper side of passenger's under-dash fuse/relay box, and remove the passenger's under-dash fuse/relay box.

Installation

1. Install the relays and connect the connectors to the passenger's under-dash fuse/relay box, then install the passenger's under-dash fuse/relay box in the reverse order of removal.

2. Install the removed parts in the reverse order of removal.

3. Do the battery terminal reconnection procedure Procedures.

4. Confirm that all systems work properly.
