Front Rocker Arm Oil Control Valve Replacement (J35Z2 Engine)




Front Rocker Arm Oil Control Valve Replacement

1. Remove the front rocker arm assembly Rocker Arm Assembly Removal (J35Z2 Engine).

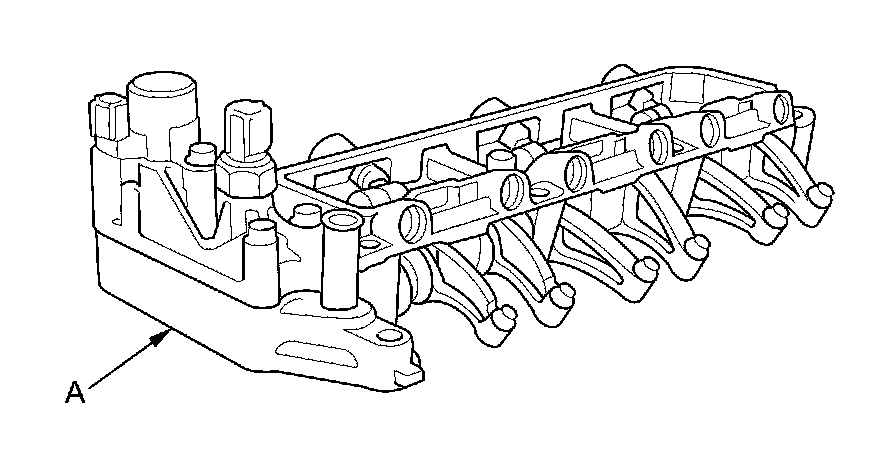

2. Remove the front rocker arm oil control valve (A).





3. Install the front rocker arm oil control valve in the reverse order of removal.
