EGR Valve: Service and Repair

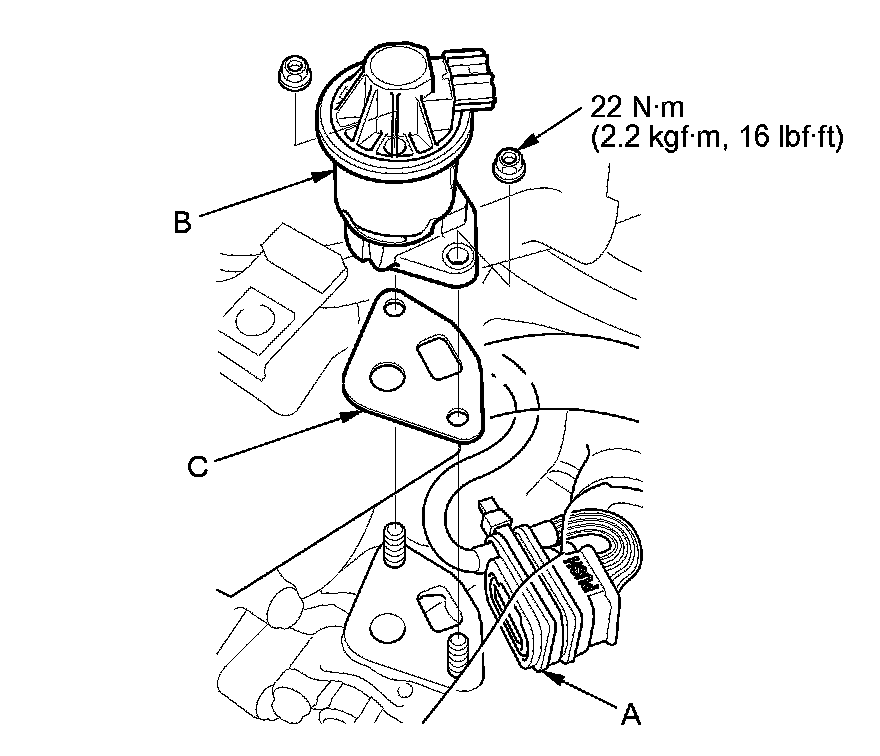

EGR Valve Replacement 1.
Remove the engine cover
Intake Manifold Removal/Installation.
2.
Disconnect the
EGR valve 5P connector (A).
3.
Remove the
EGR valve (B).
4.
Install the parts in the reverse order of removal with a new gasket (C).
