Engine Mount Control Unit: Service and Repair
Engine Mount Control Unit Replacement 1.
Do the battery terminal disconnection procedure
Procedures.
2.
Remove the driver's under-dash fuse/relay box.
3.

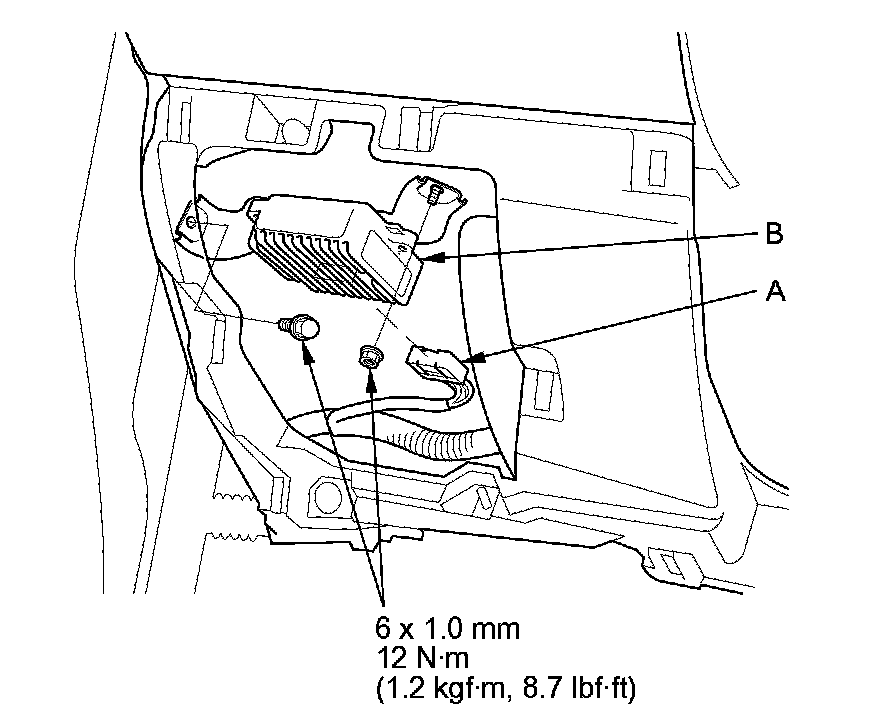

Disconnect the
engine mount control unit 16P connector (A).
4.
Remove the
engine mount control unit (B).
5.
Install the parts in the reverse order of removal.
6.
Do the battery terminal reconnection procedure
Procedures.
