Crankshaft Main Bearing

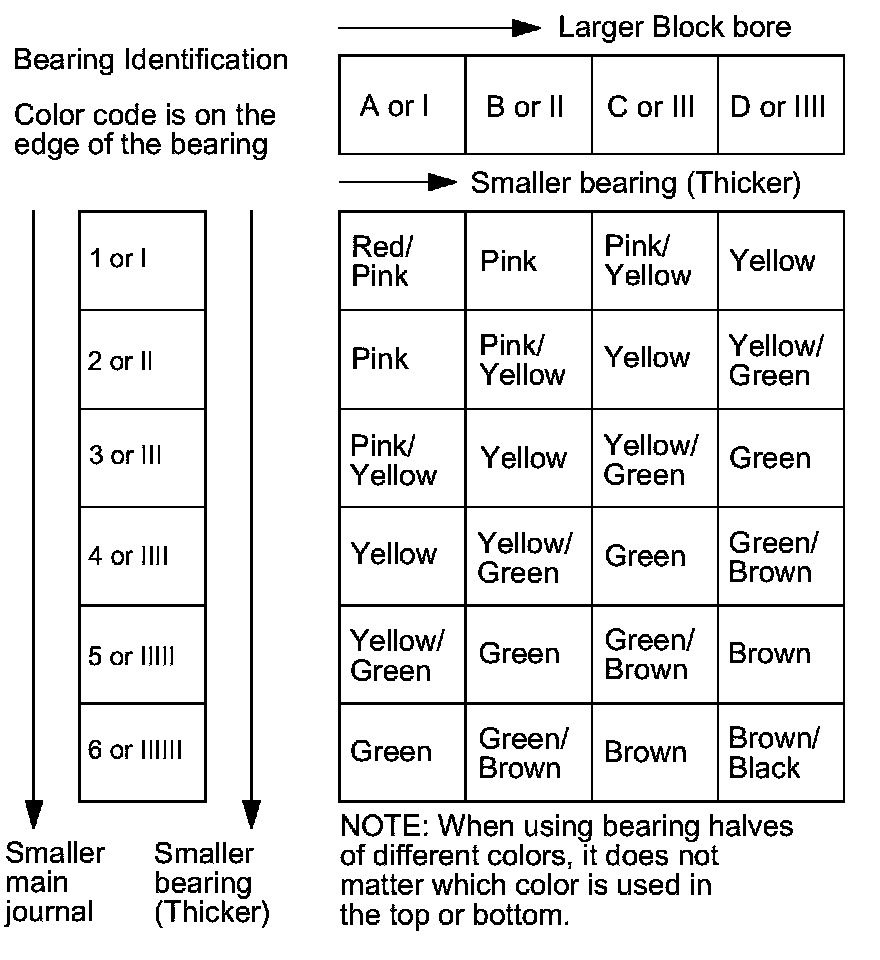

Crankshaft bearing

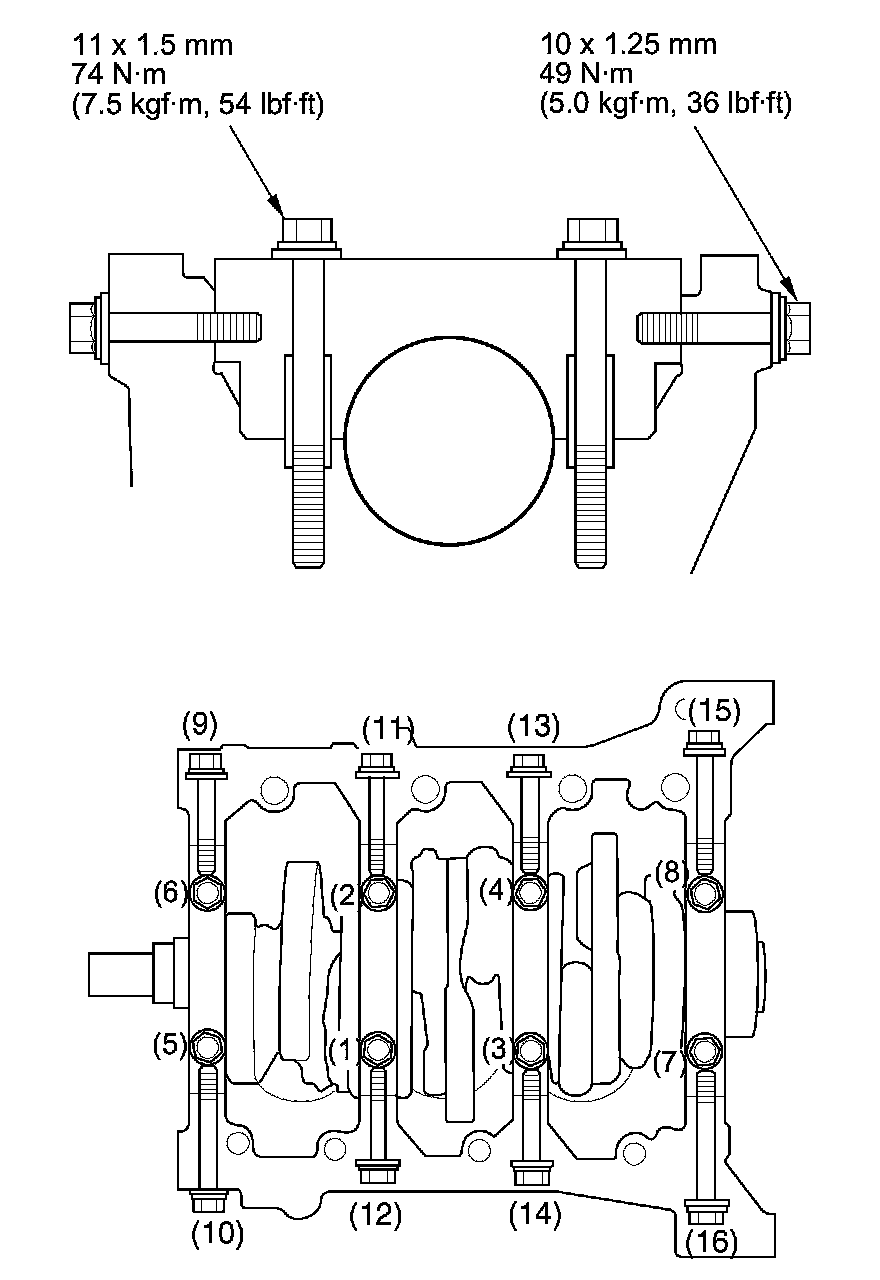

Crankshaft bearing caps

Repeat the torque sequence again to ensure the bolts are properly torqued

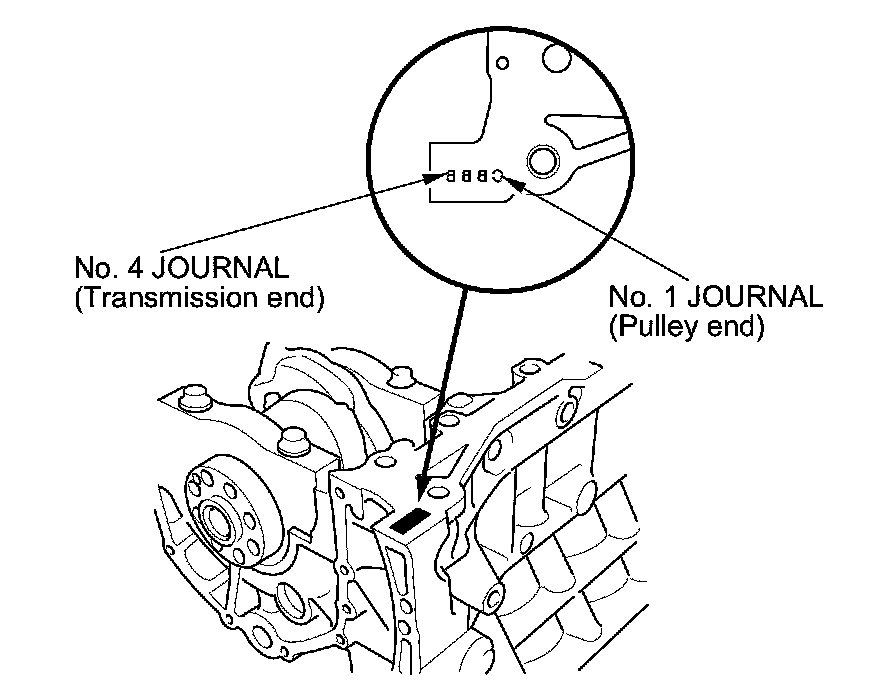

Block Bore Code Locations

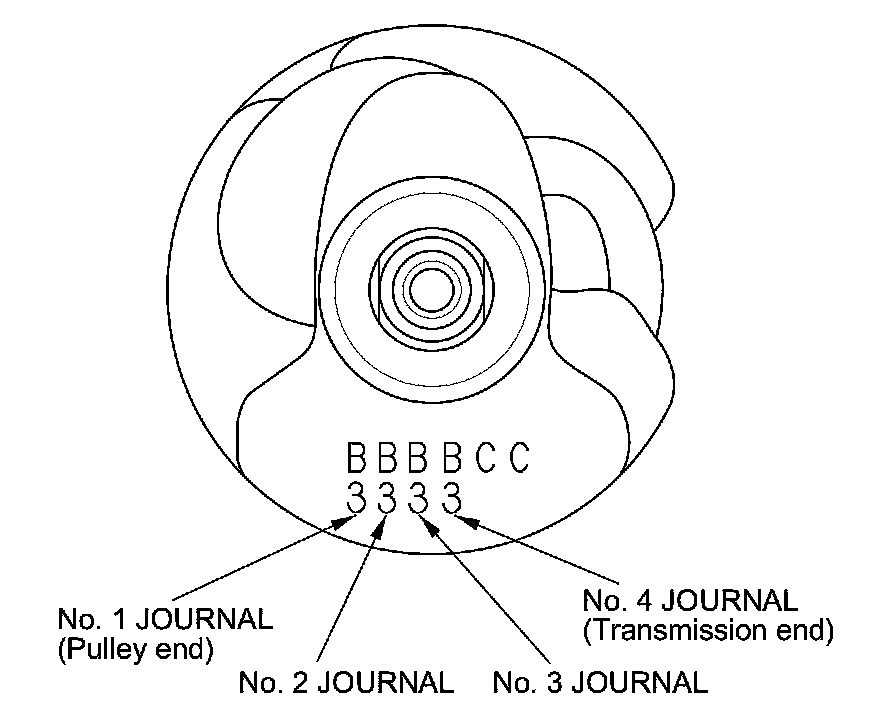

Main Journal Code Locations (Numbers or Bars)
