Tightening Torque

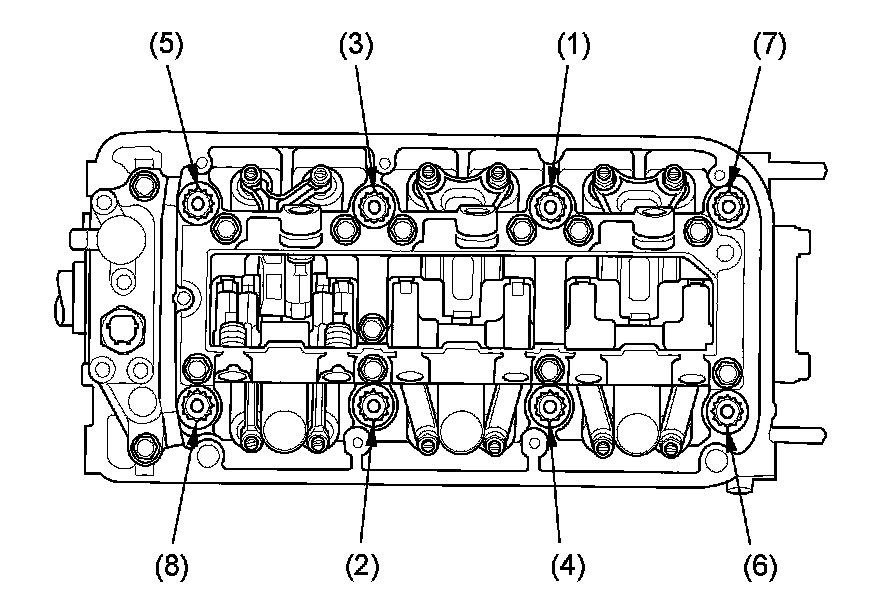

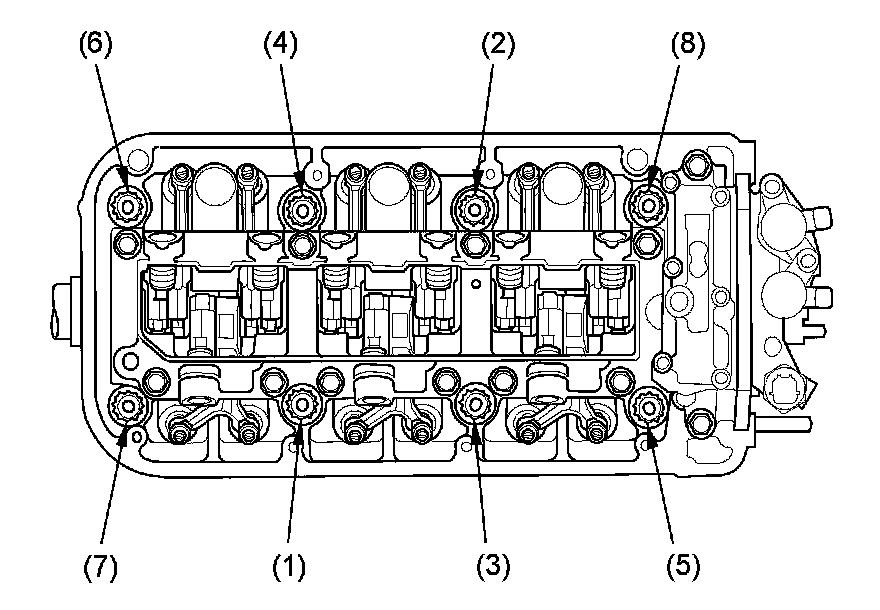

Cylinder head bolts

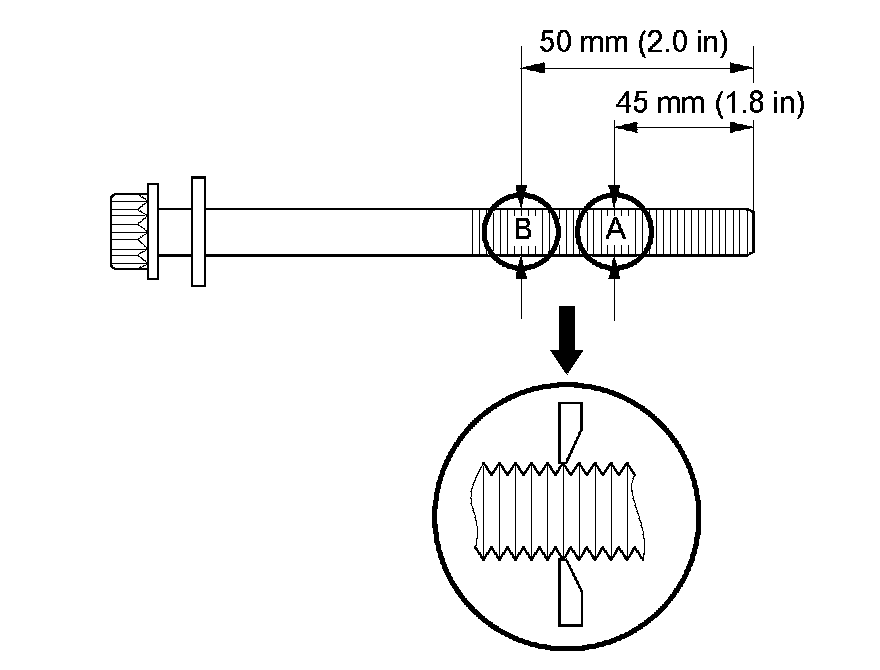

Measure the diameter of each cylinder head bolt at point A and point B.
If either diameter is less than 11.3 mm (0.445 in), replace the cylinder head bolt.
Step 1
29 Nm (3.0 kg-m, 22 lb-ft)
Step 2
90°
Step 3
additional 90°
If using a new bolt
extra 90°
Camshaft gears
