Transmission Mount: Service and Repair

Transmission Mount Replacement

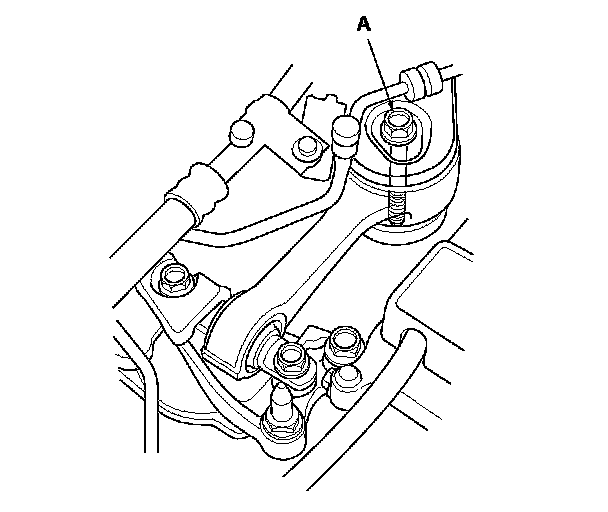

1. Loosen the upper torque rod mounting bolt (A).

2. Remove the air cleaner assembly. Service and Repair

3. Remove the engine control module (ECM)/powertrain control module (PCM) cover, then remove the three bolts securing the ECM/PCM. Engine Removal

4. Remove the ECM/PCM bracket.

5. Remove the under-hood fuse/relay box from the bracket.

6. Raise the vehicle on the lift.

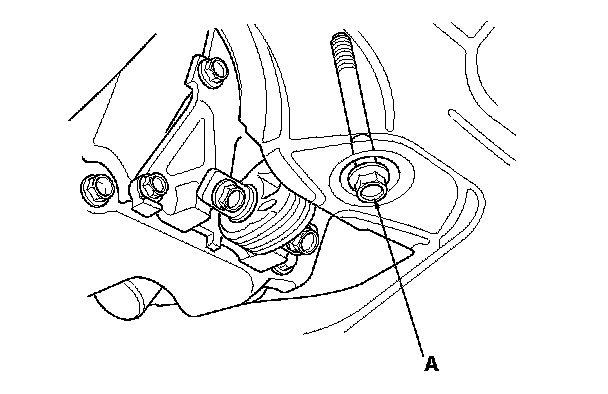

7. Loosen the lower torque rod mounting bolt (A).

8. Lower the vehicle on the lift.

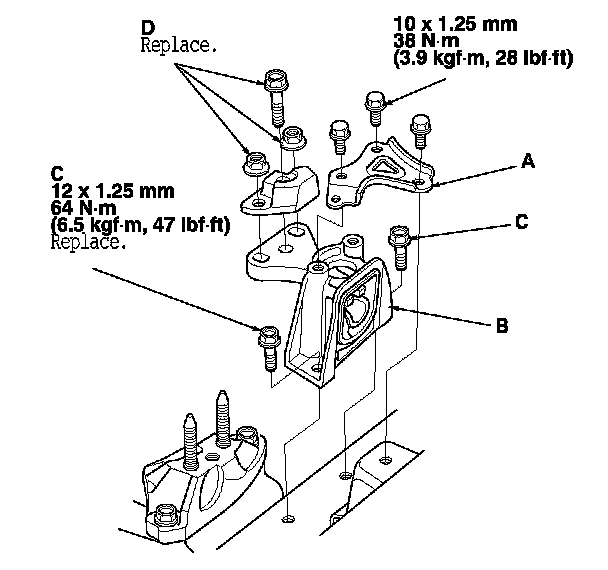

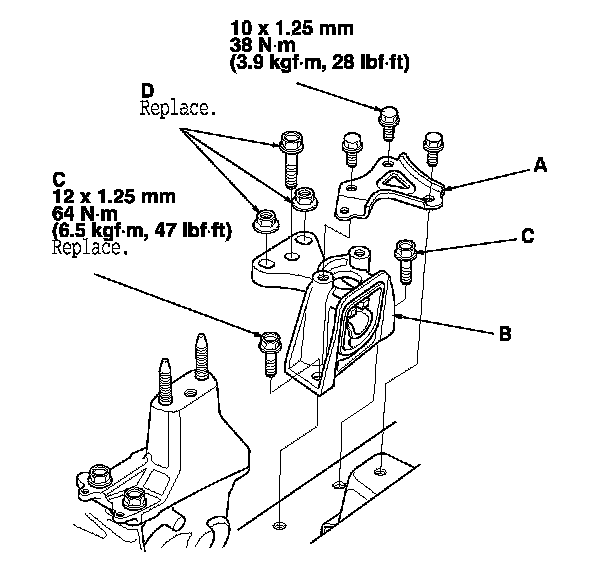

9. Remove the transmission mount stiffener (A), then remove the transmission mount (B).

10. Install the transmission mount, and tighten the new transmission mount mounting bolts (C), then install the transmission mount stiffener.

11. Loosely tighten the new transmission mounting bolt and nuts (D).

M/T model





A/T model

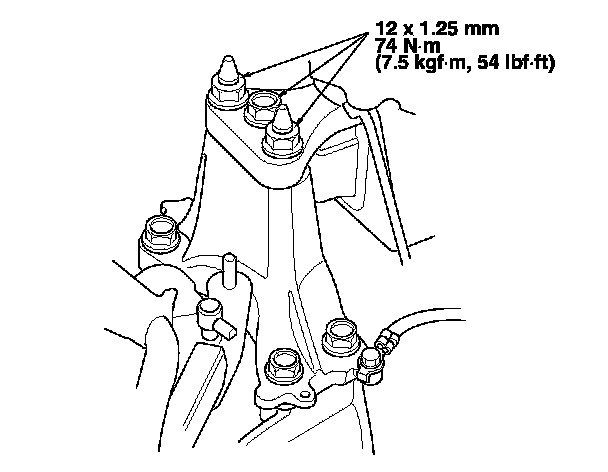

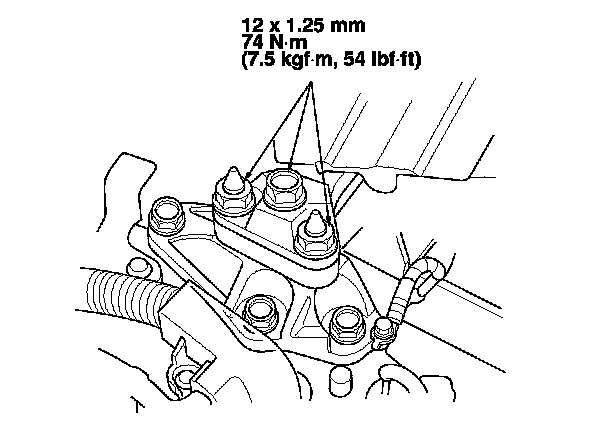

12. Tighten the transmission mounting bolt and nuts.

13. Raise the vehicle on the lift.

M/T model





A/T model

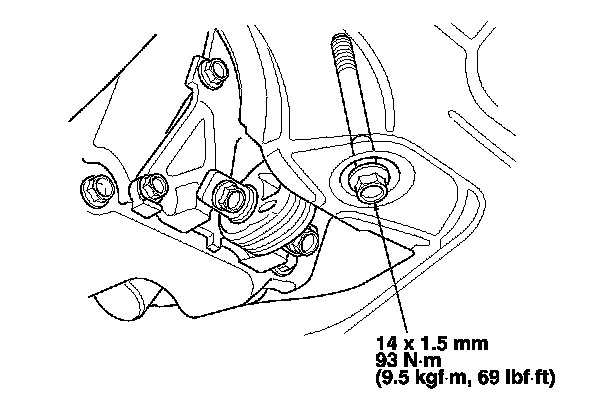

14. Tighten the lower torque rod mounting bolt.

15. Lower the vehicle on the lift.

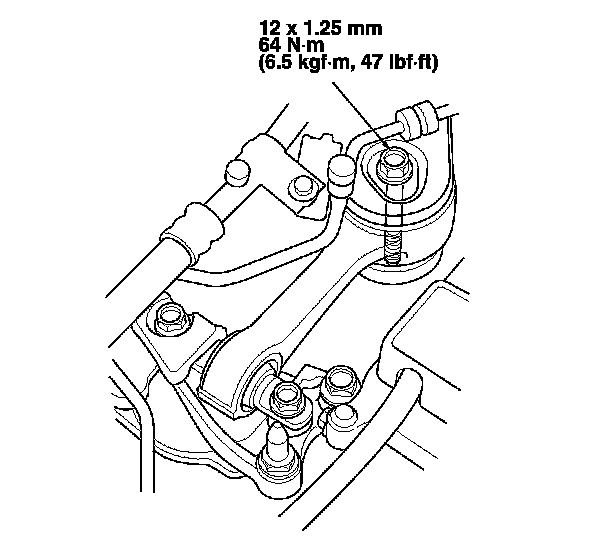

16. Tighten the upper torque rod mounting bolt.

17. Install the under-hood fuse/relay box to the bracket.

18. Install the ECM/PCM bracket.

19. Install the ECM/PCM, then install the ECM/PCM cover. Engine Installation

20. Install the air cleaner assembly. Service and Repair
