KX Mexico



Body - Interior Lights - Entry Light Control System and Ignition Key Light

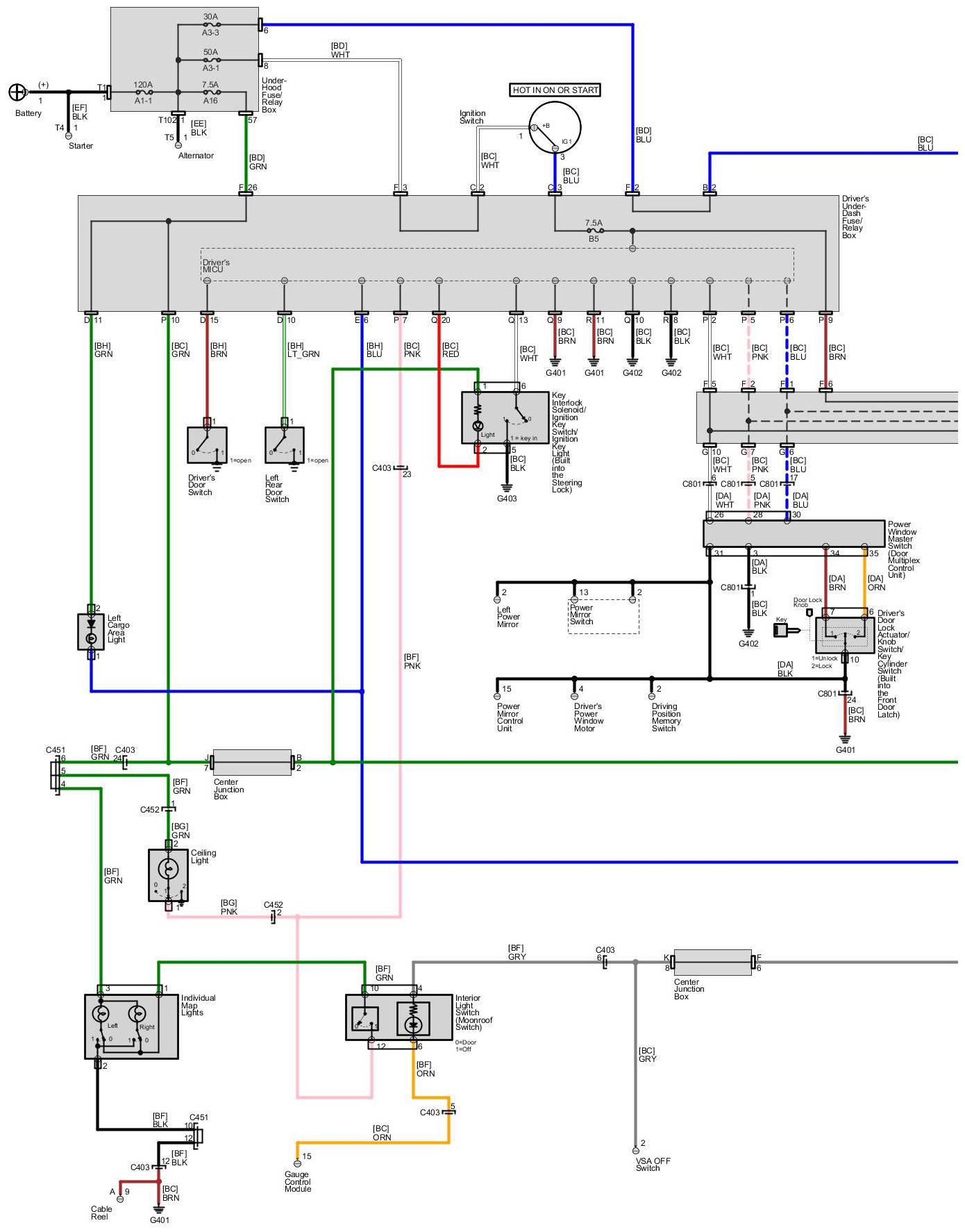

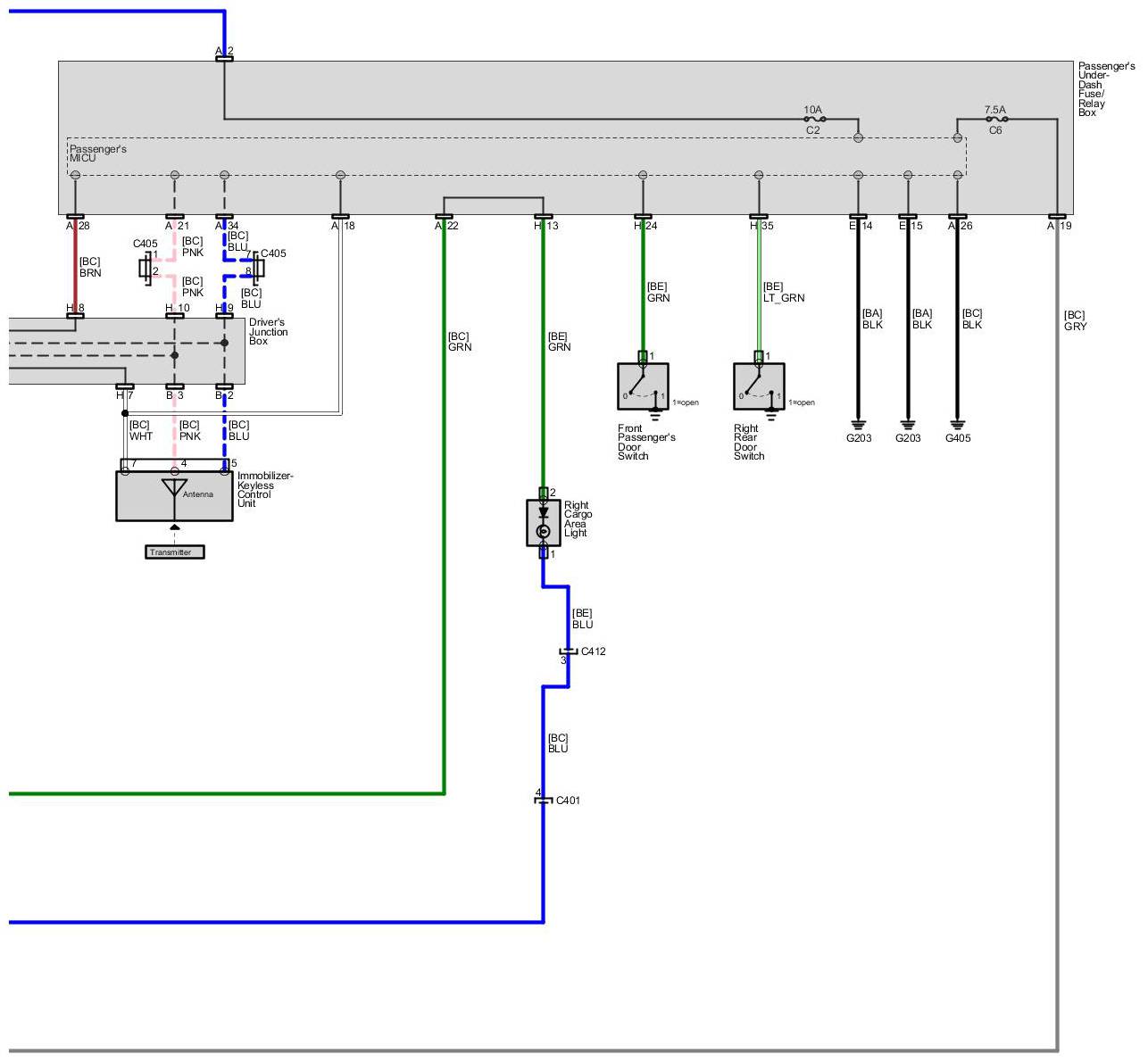

KX Mexico, 5-door EX, TF1, 2WD, J35Z2, 5AT Transmission

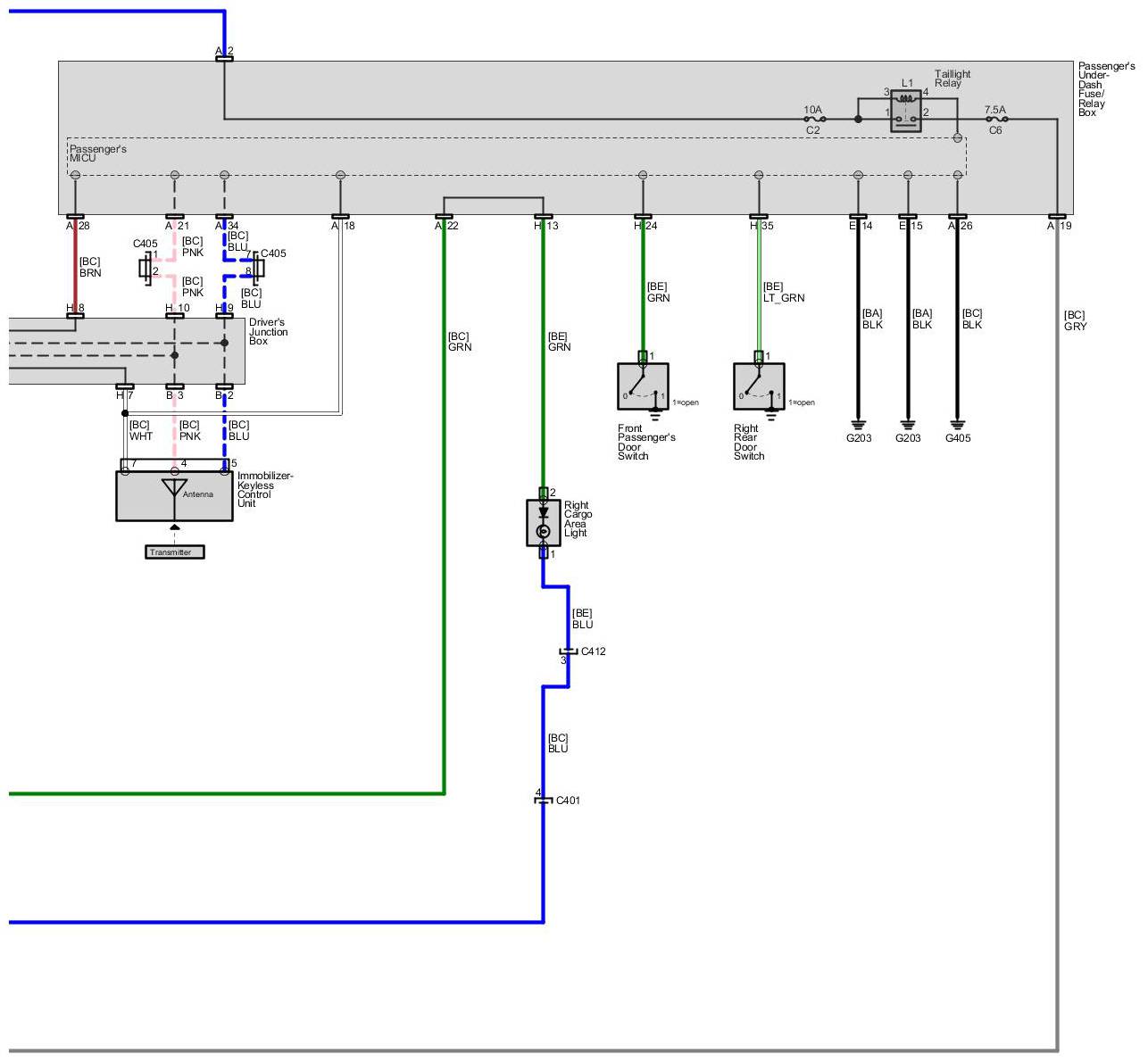

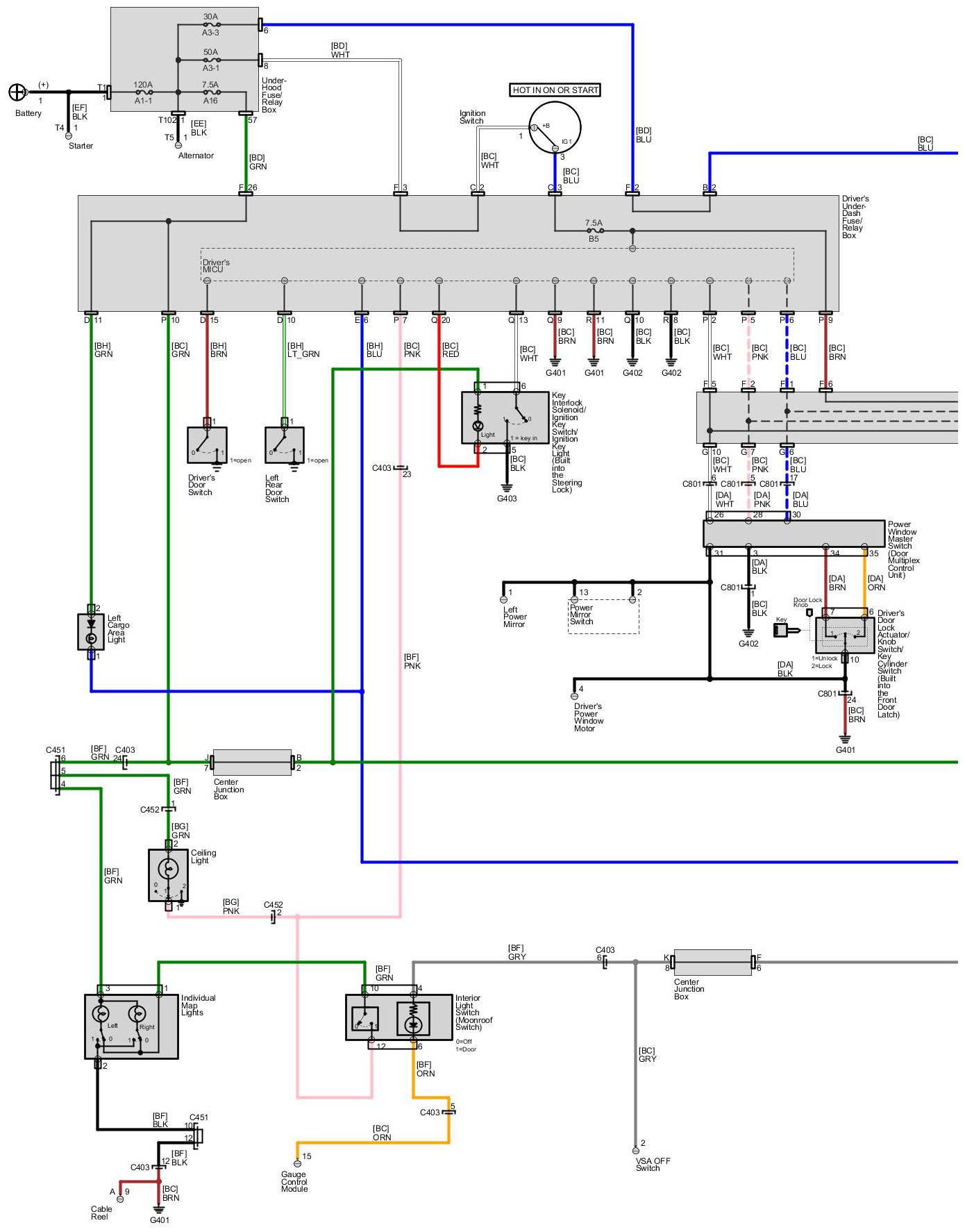

KX Mexico, 5-door EX-L, TF2, 4WD, J35Z2, 5AT Transmission
