USB Adapter Unit Replacement

USB Adapter Unit Replacement

Without navigation

1. Remove the audio unit Audio Unit Removal/Installation (Without Navigation).

2. Disconnect the connector from the USB adapter unit.

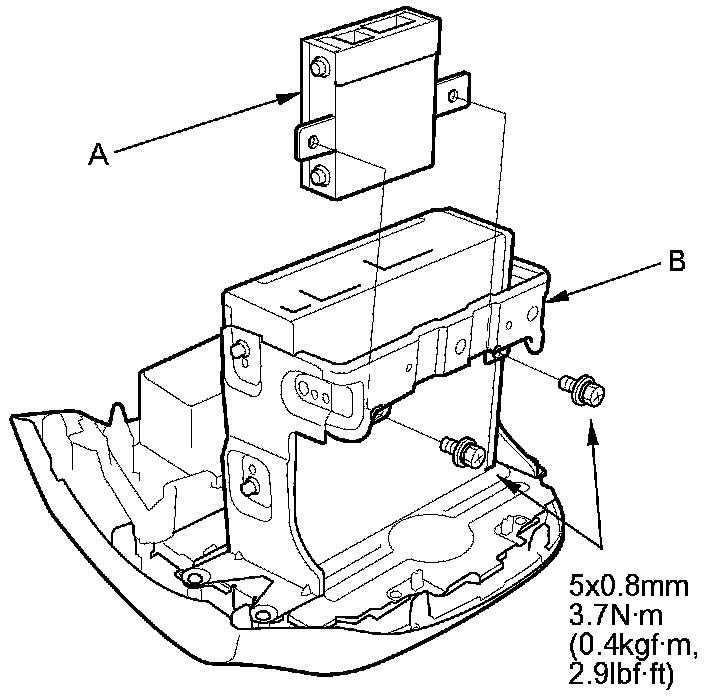

3. Remove the bolts and the USB adapter unit (A) from the bracket (B).





4. Install the USB adapter unit in the reverse order of removal.

With navigation

1. Remove the lower glove box Glove Box Removal/Installation.

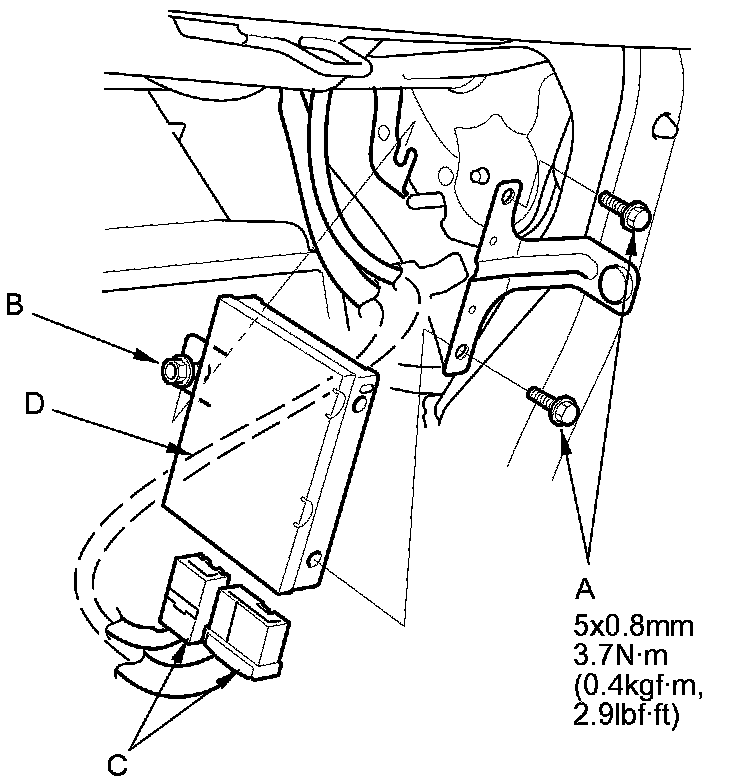

2. Remove the mounting bolts (A), and loosen the bolt (B).





3. Disconnect the connectors (C) from the adapter unit (D).

4. Remove the adapter unit from the bracket.

5. Install the USB adapter unit in the reverse order of removal.
