Lighting and Horns: Service and Repair

Exterior Light Bulb Replacement

Headlight

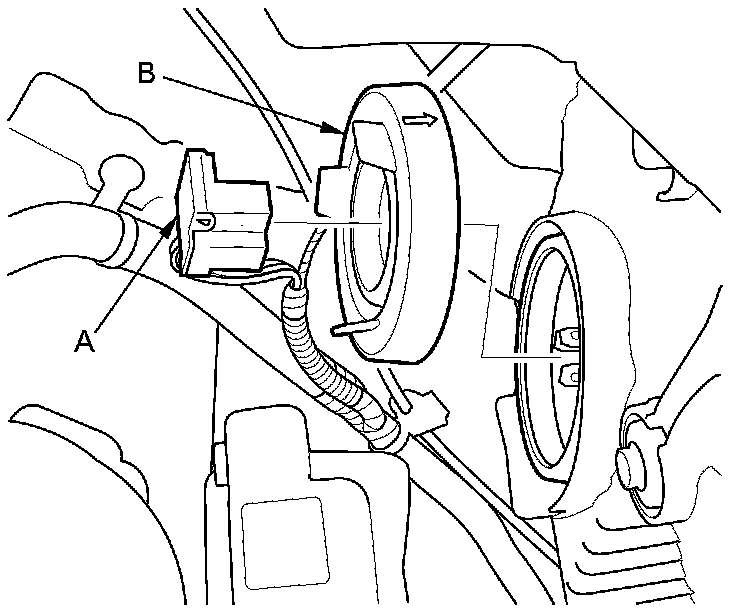

1. Disconnect the 3P connector (A), then remove the rubber cap (B) from the headlight.

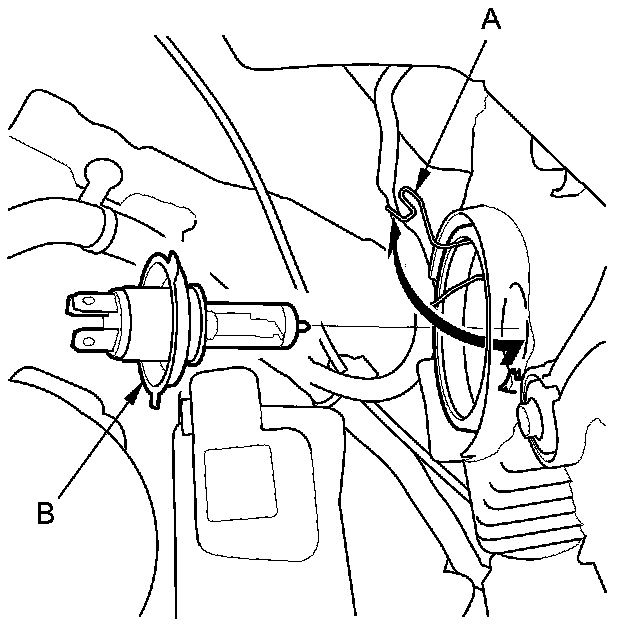

2. Pull the retaining spring (A) away from the bulb (B), then remove the bulb.










3. Install a new bulb in the reverse order of removal.

Front Parking/Side marker Light

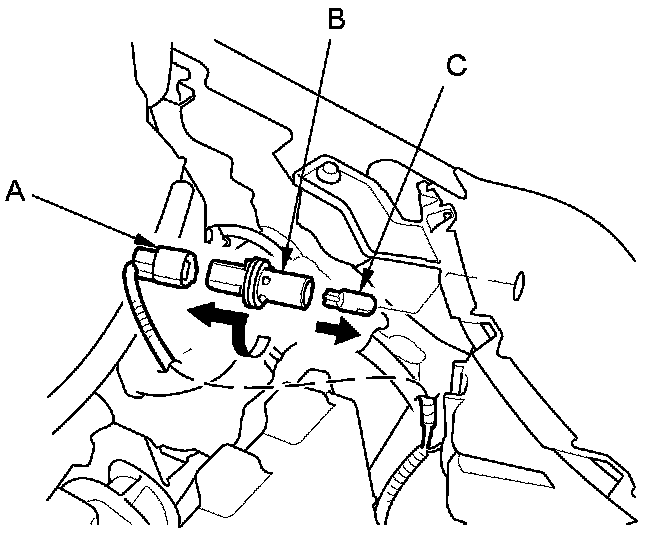

1. Disconnect the 2P connector (A) from the front parking/side marker light.









2. Turn the bulb socket (B) 45 ° counterclockwise to remove the bulb (C) from the headlight housing.

3. Install a new bulb in the reverse order of removal.

Front Turn Signal Light

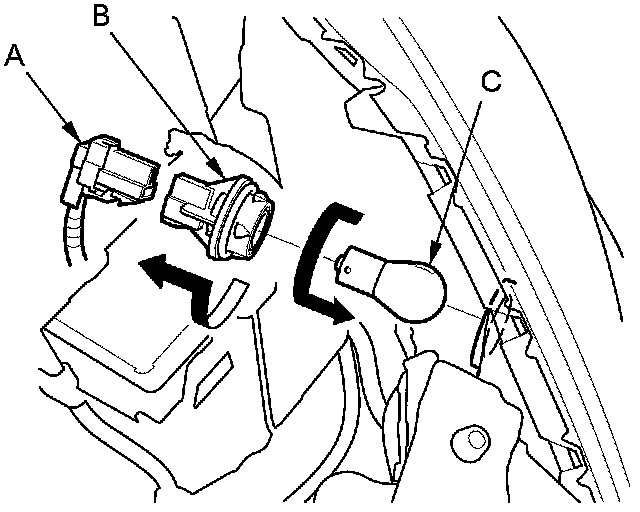

1. Disconnect the 2P connector (A) from the front turn signal light.









2. Turn the bulb socket (B) 45 ° counterclockwise to remove the bulb (C) from the headlight housing.

3. Install a new bulb in the reverse order of removal.

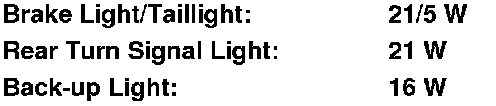

Taillights

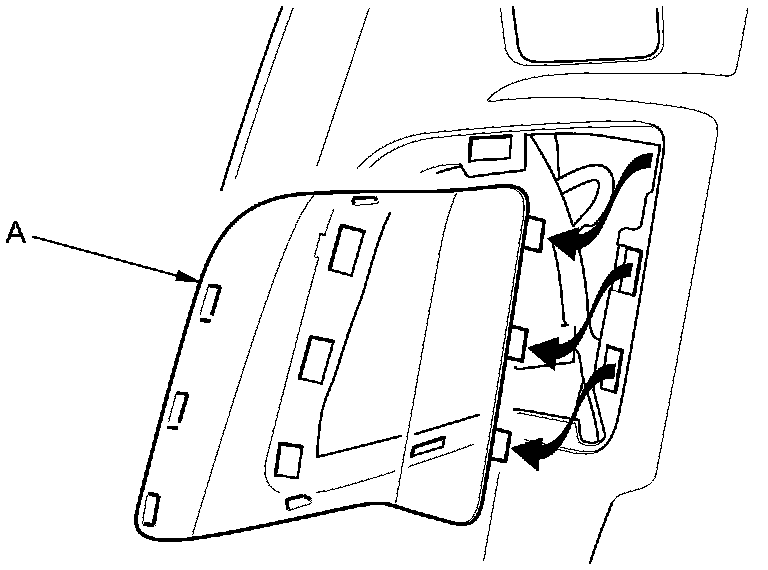

1. Open the tailgate and remove the maintenance lid (A).

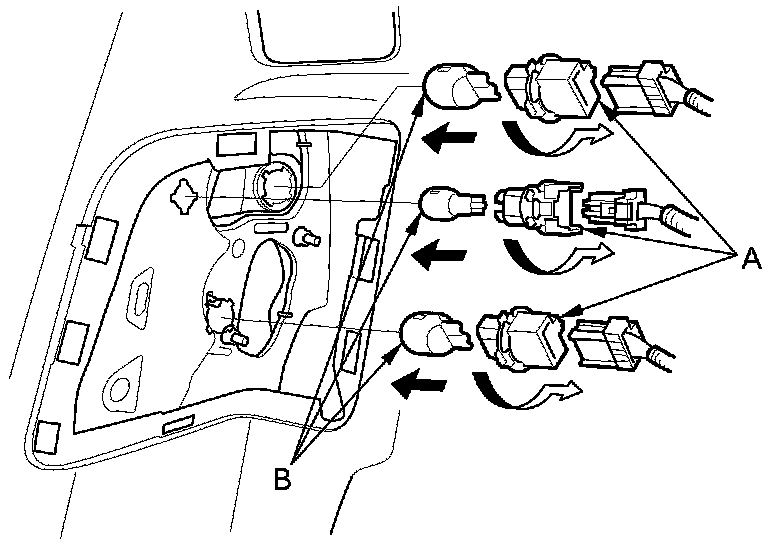

2. Disconnect the connectors from the lights.

3. Turn the bulb socket (A) 45 ° counterclockwise to remove the bulb (B).









4. Install new bulb(s) in the reverse order of removal, and tighten the nuts to 5 Nm (0.5 kg-m, 4 lb-ft).

Fog Light

1. Remove the fog light from the front bumper Service and Repair.

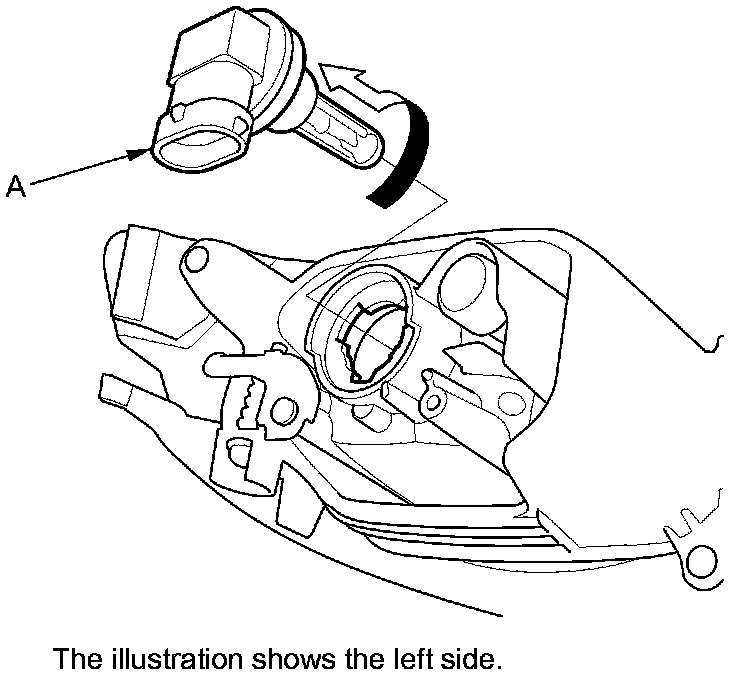

2. Turn the bulb socket (A) 45 ° counterclockwise to remove it from the housing.









3. Install a new bulb in the reverse order of removal.
