Radiator Hose: Service and Repair
Radiator Connecting Pipe Replacement 1.
Drain the engine coolant
Service and Repair.
2.
Remove the thermostat housing.
3.

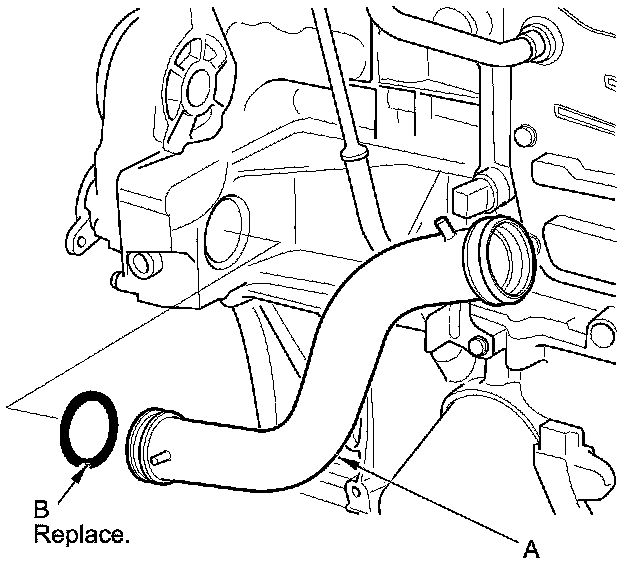

Remove the connecting pipe (A).
4.
Install the connecting pipe with a new O-ring (B).
5.
Install the thermostat housing.
6.
Refill the radiator with engine coolant, and bleed the air from the cooling system
Service and Repair.
7.
Clean up any spilled engine coolant.
