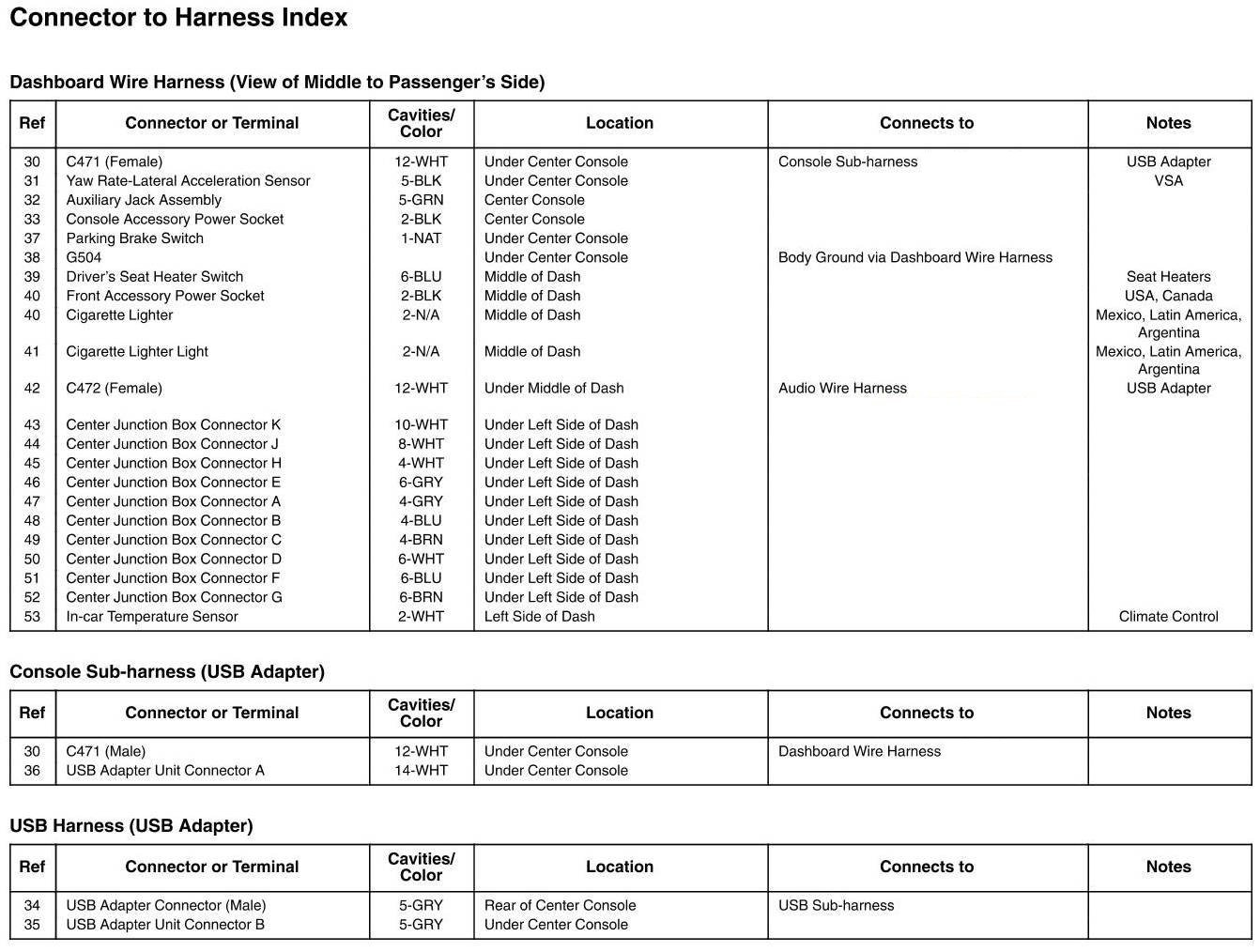

Dashboard Wire Harness (View of Middle to Passenger's Side)
Dashboard Wire Harness (View of Middle to Passenger's Side)
Dashboard Wire Harness (View of Middle to Passenger's Side), Console Subharness, and USB Harness Connector and Harness Locations
