Rocker Arm Oil Pressure Switch A Removal/Installation (PZEV Models)




Rocker Arm Oil Pressure Switch A Removal/Installation

PZEV model

1. Remove the rocker arm oil control valve Rocker Arm Oil Control Valve Removal/Installation (PZEV Models).

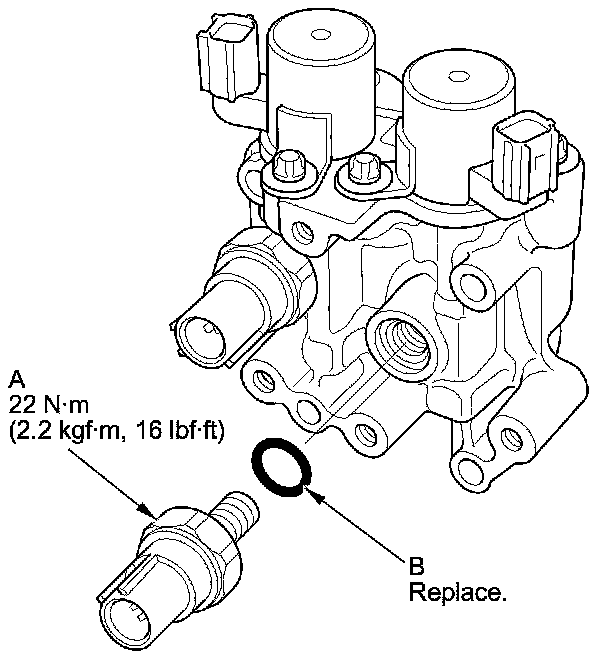

2. Remove rocker arm oil pressure switch A.





3. Install the parts in the reverse order of removal with a new O-ring (B).
