Manual Transmission Installation




Manual Transmission Installation

Special Tools Required

- Engine Support Hanger, A and Reds AAR-T1256
- Engine Hanger Adapter VSB02C000015
- Subframe Adapter VSB02C000016
- Subframe Alignment Pin 070AG-SJAA10S
*: Available through the Honda Tool and Equipment Program 888-424-6857.

NOTE: Use fender covers to avoid damaging painted surfaces.

1. Check the release bearing, and reinstall the release bearing and the release fork with the appropriate grease.

2. Make sure the two dowel pins (A) are installed in the clutch housing.





3. Place the transmission on the transmission jack, and raise it to the engine level.

4. Align the transmission mainshaft and the clutch pressure plate, then move the transmission inward until there is no gap between the transmission housing and the engine block.

5. Install the lower transmission mounting bolts.

Front side





Rear side





6. Install the clutch cover (A) and the CKP sensor cover (B).





7. Install the intermediate shaft Intermediate Shaft Installation.

8. Install both driveshafts Driveshaft Installation.

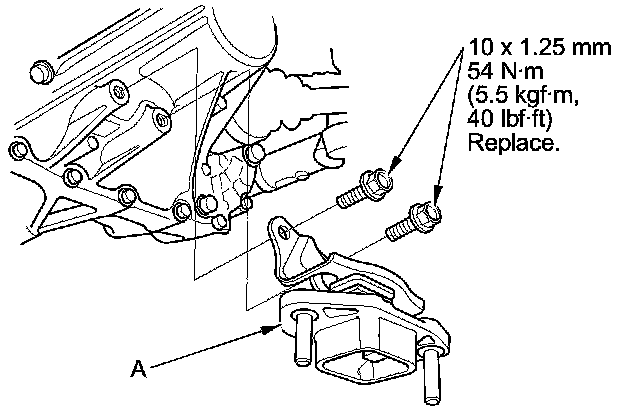

9. Install the lower transmission mount (A) with new bolts, then remove the transmission jack.

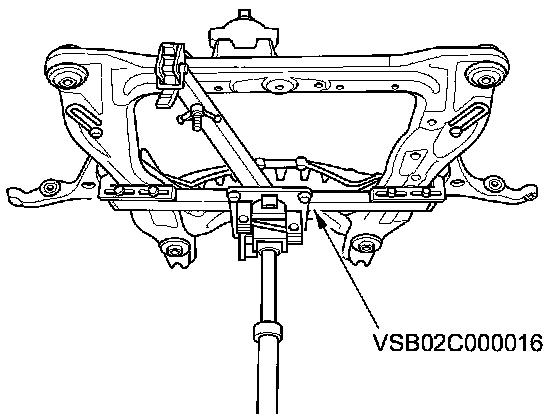

10. Support the front subframe with the subframe adapter (VSB02C000016) and a jack.






11. Position the steering gearbox washers (A) on the front subframe (B), and lift the subframe up to the body.





12. Loosely install new subframe mounting bolts (C), new rear stiffener mounting bolts (D), the front stiffener mounting bolts (E), the front stiffeners (F), and the rear stiffeners (G).

13. Partially tighten the right rear subframe mounting bolt (A); insert the subframe alignment pin (B) through the positioning slot (C) on the rear stiffener, through the positioning hole (D) on the front subframe, and into the positioning hole on the body, then tighten the subframe mounting bolt.





14. Partially tighten the left rear subframe mounting bolt in the same manner as in step 13.

15. Partially tighten the right and left front subframe mounting bolts.

16. Tighten the right rear mounting bolt to the specified torque with the subframe alignment pin in the positioning hole.

17. Tighten the left rear mounting bolt to the specified torque with the subframe alignment pin in the positioning hole.

18. Tighten the right and left front mounting bolt to the specified torque.

19. Check that the positioning holes and slots are aligned using the subframe alignment pin.

20. Tighten the rear and front stiffener mounting bolts to the specified torque.

21. Remove the jack and subframe adapter.

22. Install the power steering line holder bolt (A) and the power steering line to the clamp (B).






23. Install the lower transmission mount nuts (A).






24. Install the subframe middle mount on both sides with new bolts.






25. Install new rear engine mount bracket bolts.






26. Install exhaust pipe A with new gaskets (B), the flexible joint bolts, the springs, and new self-locking nuts as shown Service and Repair.





27. Connect the knuckle ball joint onto the lower arm Front Lower Arm Removal/Installation.

28. Install the damper fork.

29. Refill the transmission with MTF to the proper level Service and Repair.

30. Install the front splash shield Front Splash Shield Replacement.





31. Install the front wheels, and set them in the straight-ahead position.

32. Lower the vehicle.

33. Install the upper transmission mounting bolts (A).






34. Install the upper transmission mount bracket base (A) with new bolts, and connect the ground cable (B) by installing its mount bolt.






35. Install new upper transmission mount bracket mounting bolts (A).

NOTE: If the TORX bolt (B) was removed by mistake during removal, the upper transmission bracket must be replaced as an assembly.






36. Install the power steering stiffener plates (A), and loosely tighten new steering gearbox mounting bolts (B) and the steering gearbox stiffener bolts (C).

NOTE: Make sure the lower washers placed in step 11 are correctly positioned before installing the bolts.

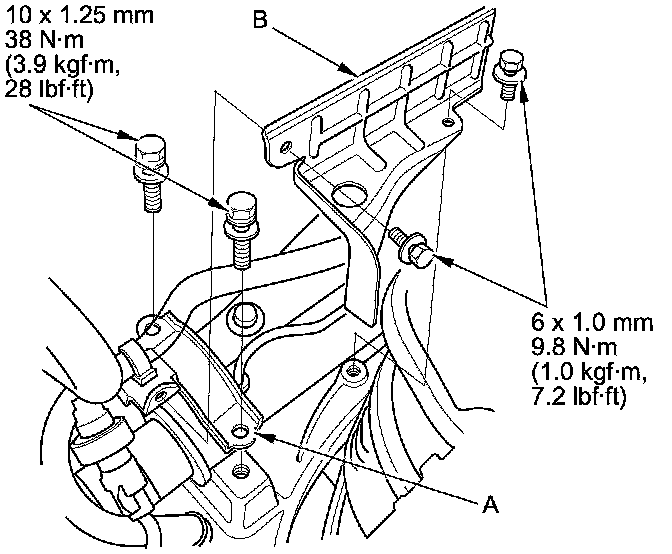

37. Install the power steering gearbox mounting bracket (A), and tighten the bolts to the specified torque, then install the power steering heat shield (B).





38. Tighten the driver's side of the steering gear box mounting bolts and the steering gearbox stiffener bolts to the specified torque alternately in two steps.

39. Install the rear power steering line holders (A).






40. Install three new mount-to-subframe bolts (A) and two new rear engine mount bracket bolts (B).






41. Install a new front engine mount mounting bolt (A), the front engine mount stop (B), and the vacuum hose bracket (C) with new nuts, then connect the vacuum hose (D).





42. Remove the A and Reds engine support hanger and the engine hanger adapter from the engine.

43. Install the evaporative emission (EVAP) canister hose (A) and the brake booster vacuum hose (B).






44. Install the strut brace (A) with the nuts (B), then install the brake booster vacuum hose to the clamp (C).






45. Install the bracket (A) and the harness clamp (B).






46. Install the harness clamp (A). Connect the output shaft (countershaft) speed sensor connector (B) and the back-up light switch connector (C).

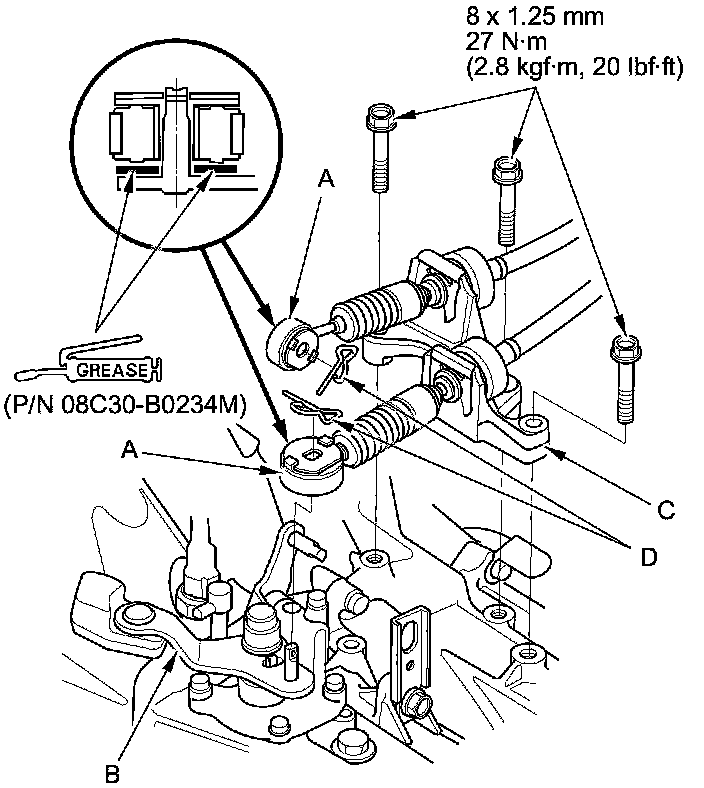

47. Apply a light coat of silicone grease (P/N 08C30-B0234M) to the cable ends (A) and connect the cable end to the change lever assembly (B), then install the shift cable bracket (C) and the lock pins (D). Do not bend or damage the shift cables.

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.






48. Install the under-hood fuse/relay box (A).






49. Apply a light coat of super high temp urea grease (P/N 08798-9002) to the end of the slave cylinder pushrod. Install the slave cylinder and the bracket mounting nut. Be careful not to bend the clutch line.






50. Install the battery base (A) and the cable clamp (B).





51. Install the air cleaner assembly Service and Repair.

52. Do the battery installation procedure Removal and Replacement.

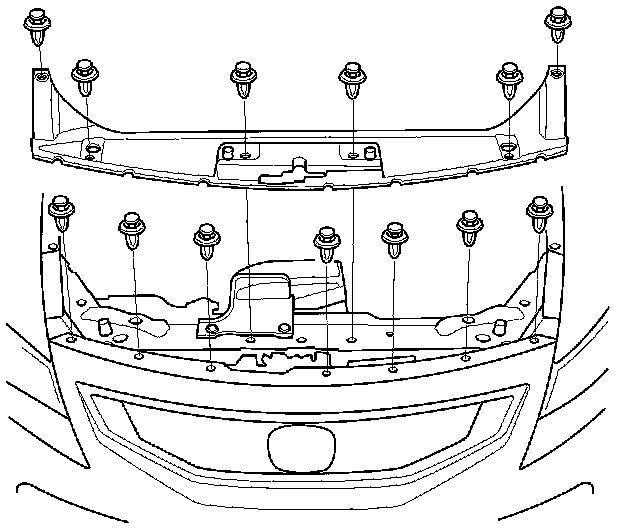

53. Install the front grille cover.





54. Check the wheel alignment Service and Repair.

55. Check the shift lever and the clutch operation.

56. Test-drive the vehicle.
