Overhaul

PCU Disassembly/Reassembly

NOTE: Wear insulated gloves to protect yourself from electrical shock.

IMA components are located in this area. The IMA is a high-voltage system. You must be familiar with the IMA system before working on or around it. Make sure you have read the IMA service precautions before doing repairs or service High Voltage Safety.

1. Remove the PCU assembly PCU Removal/Installation.

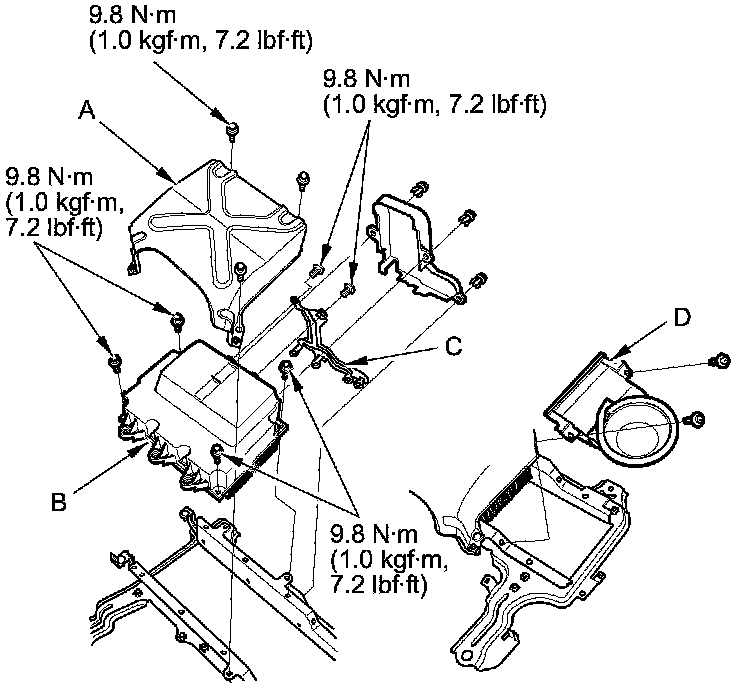

2. Remove the cover (A), the MCM (B), the busplate (C), and the IPU air unit (D).





3. Install the parts in the reverse order of removal.
