Torque Specifications

Torque Specifications

Torque Specifications

NOTE:
Refer to the S/M for the precautions and complete procedures.
Refer to the S/M for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the S/M procedures closely for torque, sequence, and special steps.

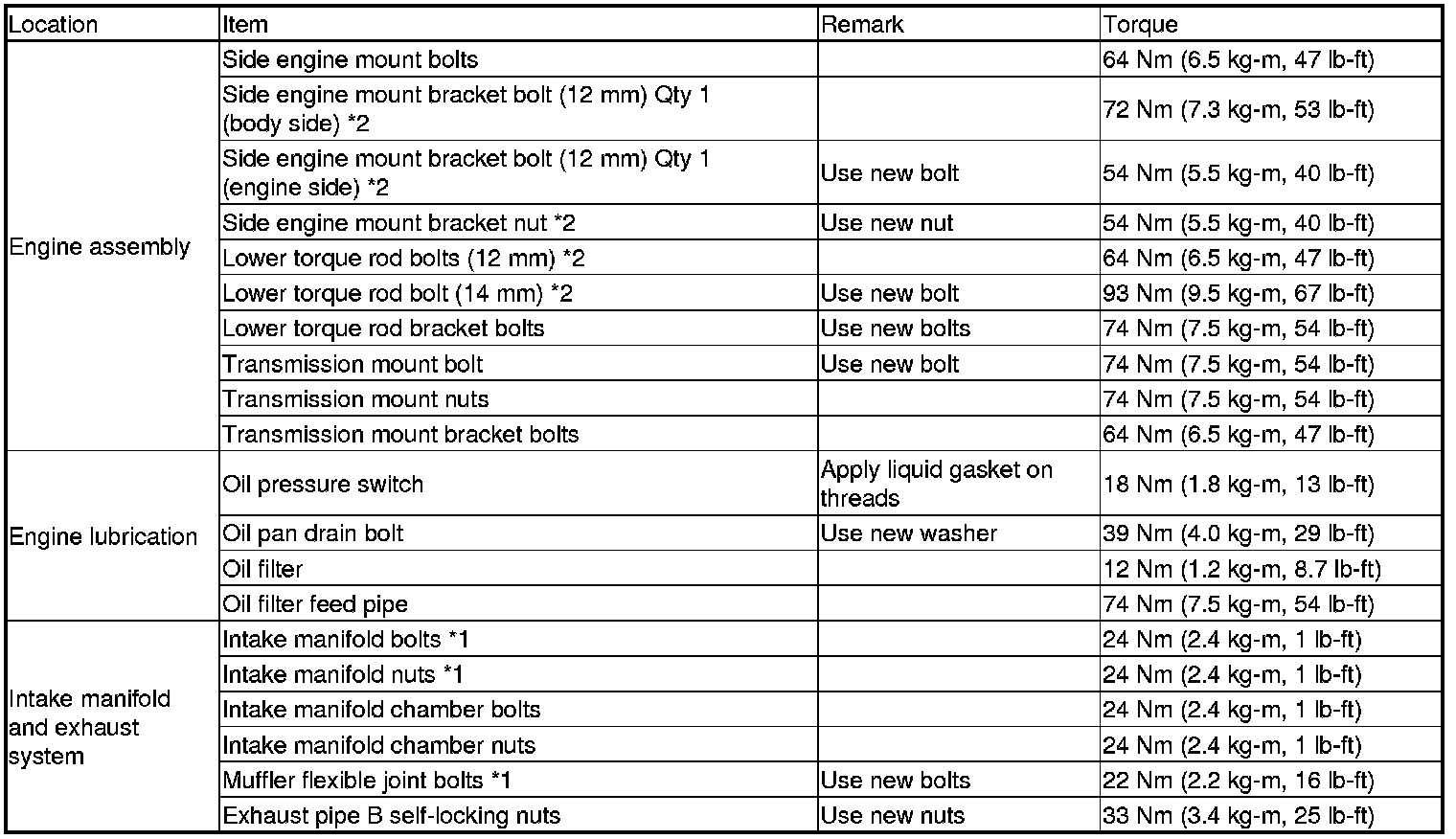

Engine Mechanical
