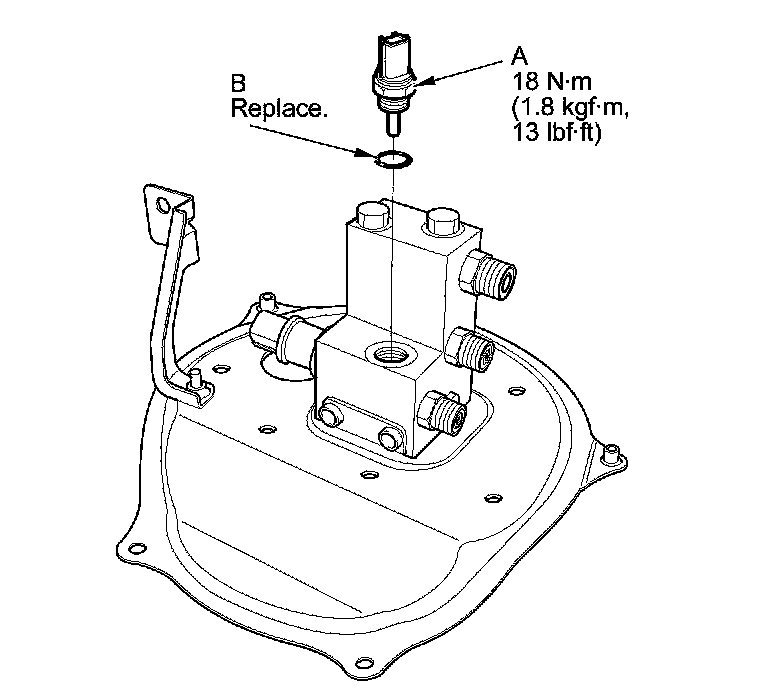

Fuel Tank Temperature Sensor (CNG): Service and Repair
FTT Sensor Replacement 1.
Remove the fuel joint block
Service and Repair.
2.
Remove the FTT sensor (A).
3.
Apply silicone oil or polyalkyleneglycol (PAG) oil to a new O-ring (B), and carefully install it into its proper position
Service and Repair.
4.
Install the parts in the reverse order of removal.
5.
Do the leak inspection procedure
Testing and Inspection.
