Manifold Pressure/Vacuum Sensor: Service and Repair
MAP Sensor Replacement 1.
Remove the cowl cover and the under-cowl panel
Service and Repair.
2.

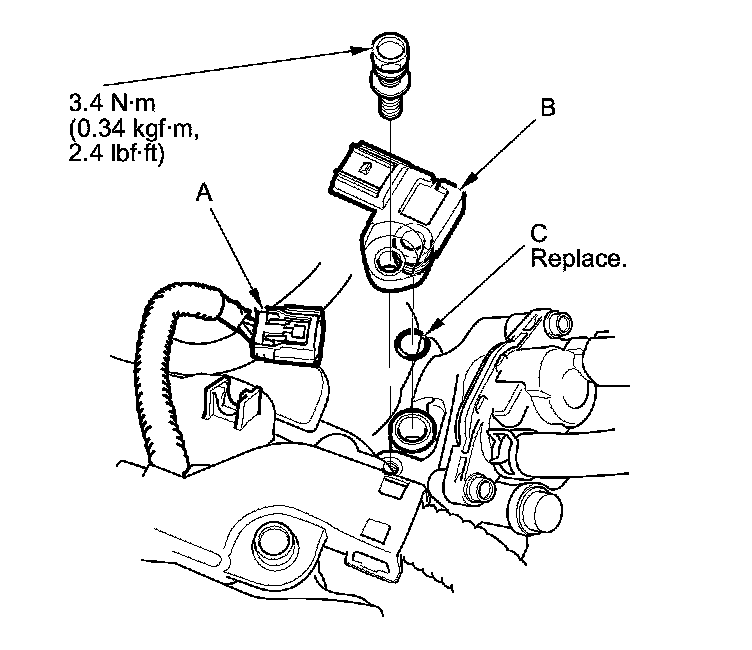

Disconnect the MAP sensor 3P connector (A).
3.
Remove the MAP sensor (B).
4.
Install the parts in the reverse order of removal with a new O-ring (C).
