A/F Sensor Replacement
A/F Sensor ReplacementSpecial Tools Required -
O2 Sensor Wrench Snap-on S6176 or equivalent, commercially available
1.

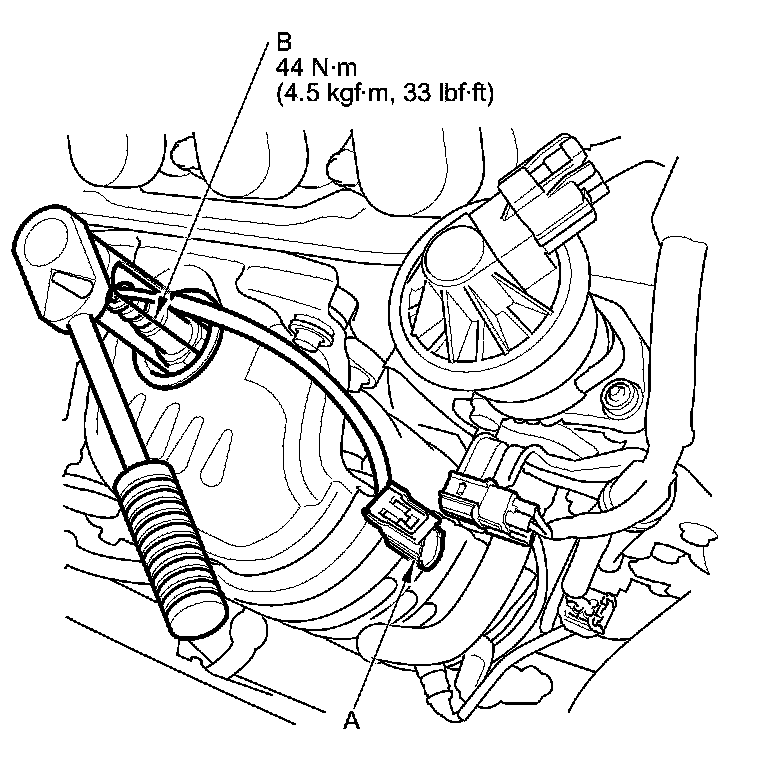

Disconnect the A/F sensor 4P connector (A), then remove the A/F sensor (B).
2.
Install the parts in the reverse order of removal.
