Courtesy Lamp: Service and Repair
Ambient Light Replacement2-door with moonroofNOTE: The ambient light is built into the moonroof switch.
1.
Remove the front individual
map lights Front Individual Map Light Test/Replacement (With Moonroof).
2.

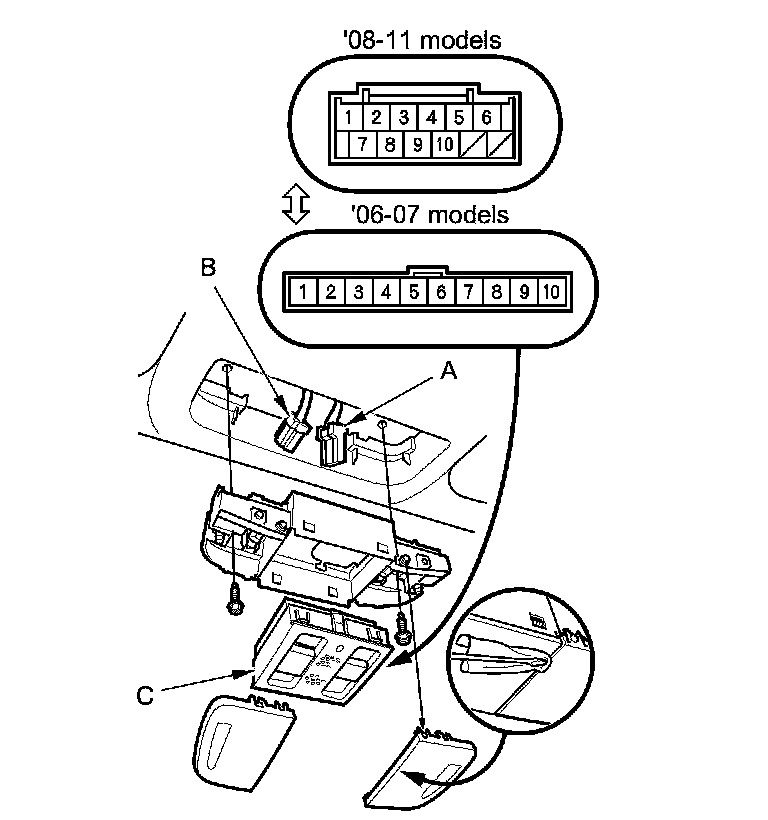

Disconnect the moonroof switch 10P [12P] connector (A) and
map light 3P connector (B).
3.
Remove the moonroof switch (C).
4.
Install the lights in the reverse order of removal.
