Air Cleaner Housing: Service and Repair

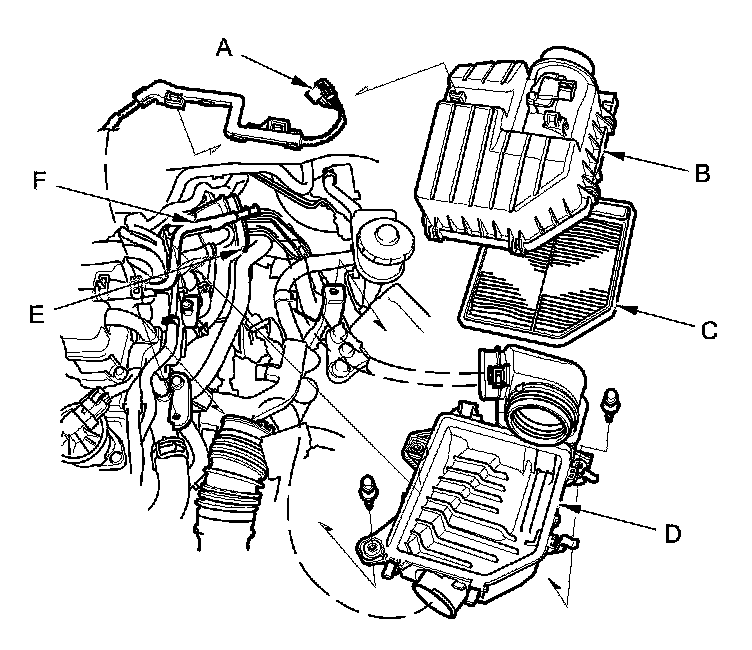

Air Cleaner Removal/Installation 1.
Disconnect the MAF sensor/IAT sensor connector (A).
2.
Remove the
air cleaner housing cover (B).
3.
Remove the air cleaner element (C) from the
air cleaner housing (D).
4.
Loosen the bolt (E), and the pipe (F).
5.
Remove the
air cleaner housing.
6.
Install the parts in the reverse order of removal.
