Power and Ground Distribution: Testing and Inspection

Power Relay Test

Special Tools Required

- Relay Puller 07AAC-000A2A1 or 07AAC-000A1A0

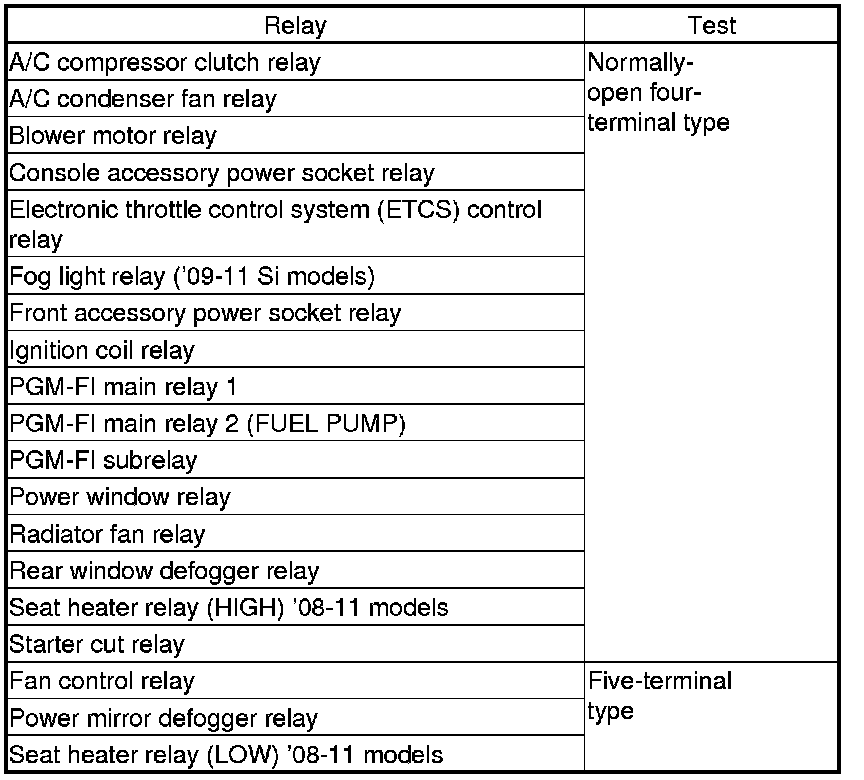

Use this chart to identify the type of relay, then do the test listed for it.

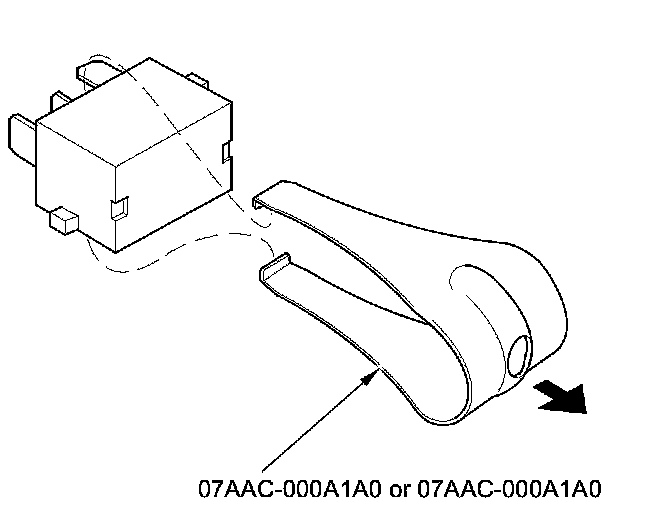

NOTE: Carefully remove the relay using the relay puller. Do not use pliers. Pliers will damage the relay.

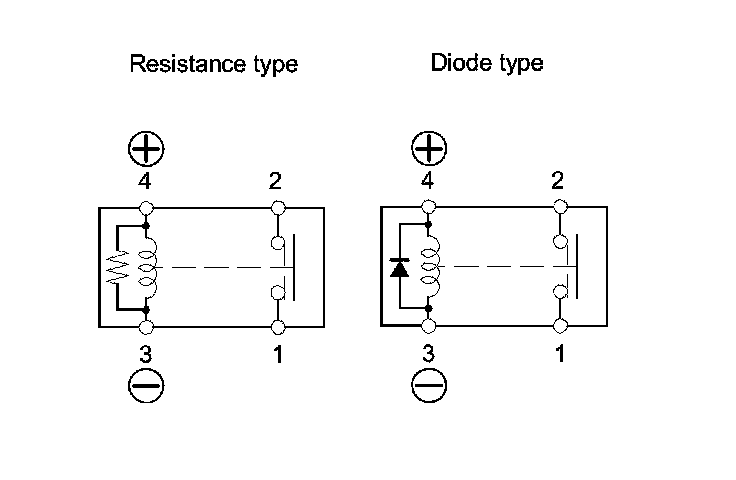

Normally-Open Four-Terminal Type

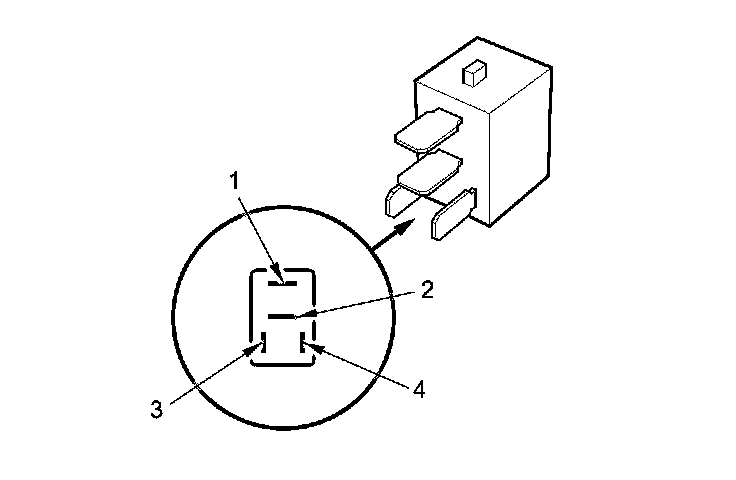

Check for continuity between the terminals.

- There should be continuity between terminals No. 1 and No. 2 when battery power is connected to terminal No. 4, and body ground is connected to terminal No. 3.
- There should be no continuity between terminals No. 1 and No. 2 when power is disconnected.

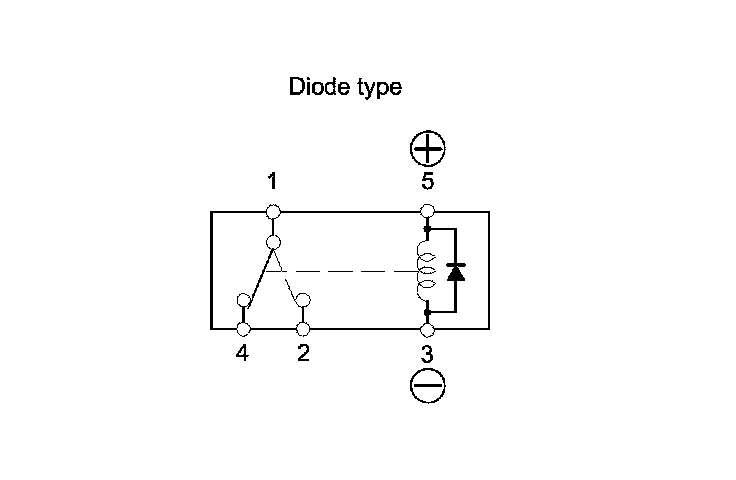

Five-Terminal Type

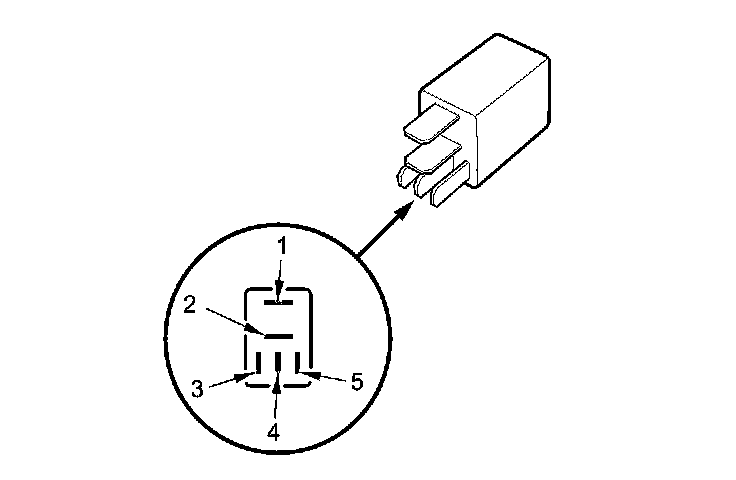

Check for continuity between the terminals.

- There should be continuity between terminals No. 1 and No. 2 when the battery power is connected to terminal No. 5, and body ground is connected to terminal No. 3.
- There should be continuity between terminals No. 1 and No. 4 when power is disconnected.
