EGR Valve: Service and Repair

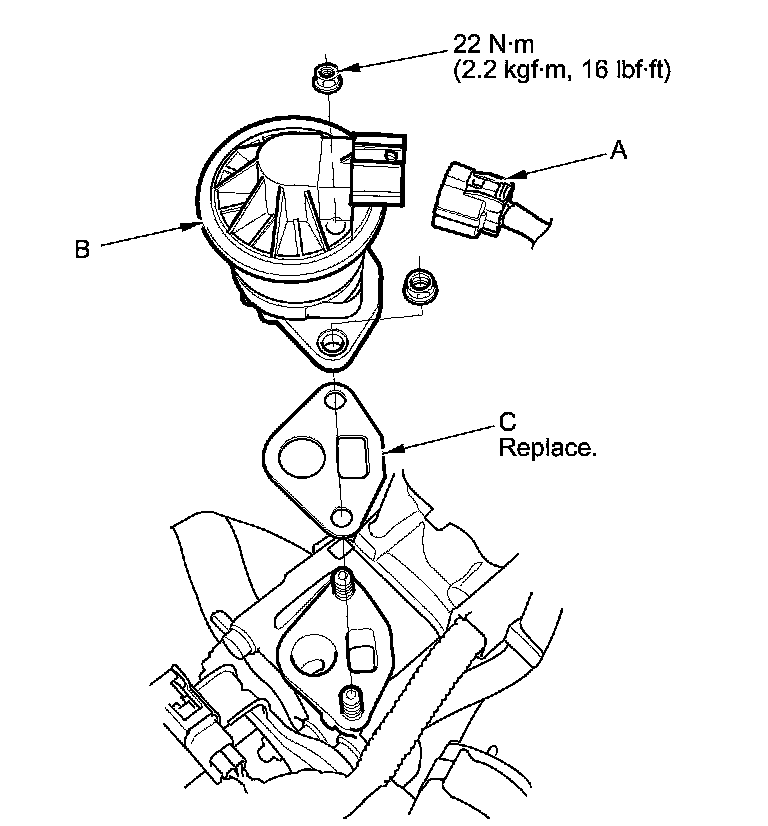

EGR Valve Replacement 1.
Remove the injector cover.
2.
Disconnect the
EGR valve 6P connector (A).
3.
Remove the
EGR valve (B).
4.
Install the parts in the reverse order of removal with a new gasket (C).
5.
Install the injector cover.
