Clutch Pedal Position Switch Replacement
Clutch Pedal Position Switch ReplacementM/T model 1.

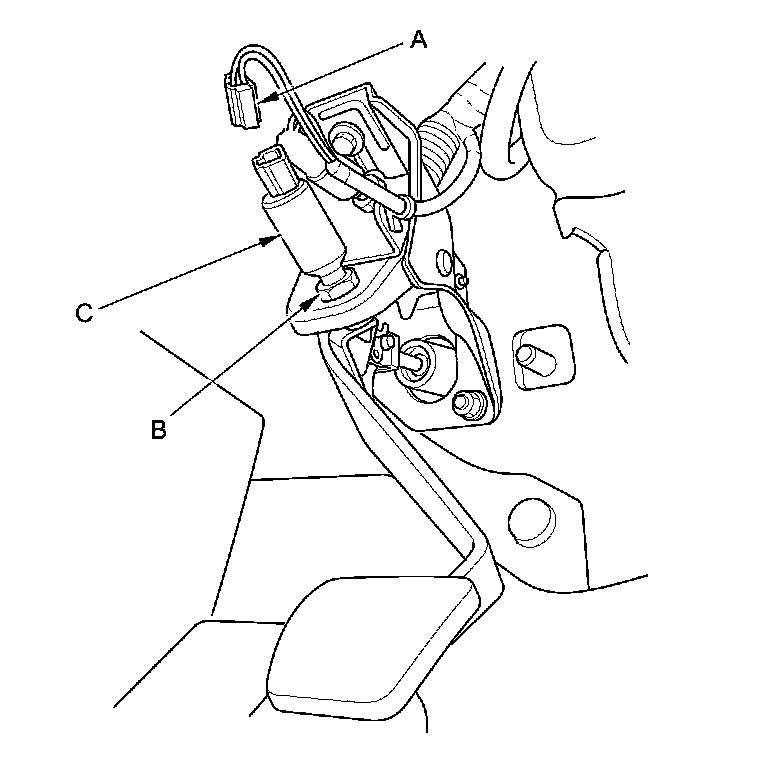

Disconnect the clutch pedal position switch 3P connector (A).
2.
Loosen the locknut (B), then remove the clutch pedal position switch (C).
3.
Install the clutch pedal position switch, and adjust the pedal height
Adjustments.
