Starter Solenoid: Testing and Inspection

Starter Solenoid Test

M/T model

1. Remove the starter.

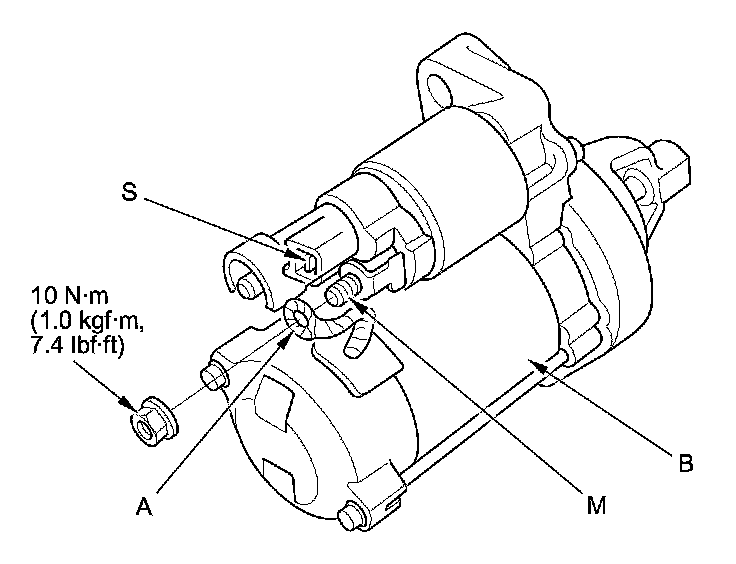

2. Remove the motor cable (A).





3. Check the hold-in coil for continuity between the S terminal and the armature housing (ground) (B). There should be continuity.

- If there is continuity, go to step 4.
- If there is no continuity, replace the solenoid.

4. Check the pull-in coil for continuity between the S terminal and the M terminal. There should be continuity.

- If there is continuity, the solenoid is OK.
- If there is no continuity, replace the solenoid.

5. Connect the motor cable.

6. Install the starter.
